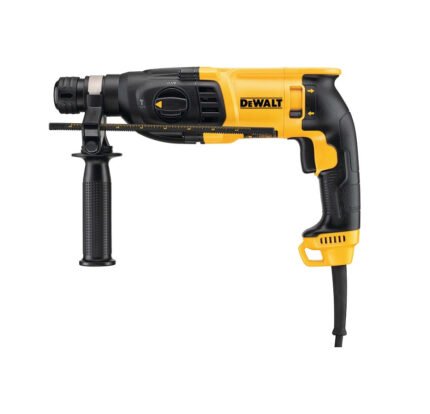

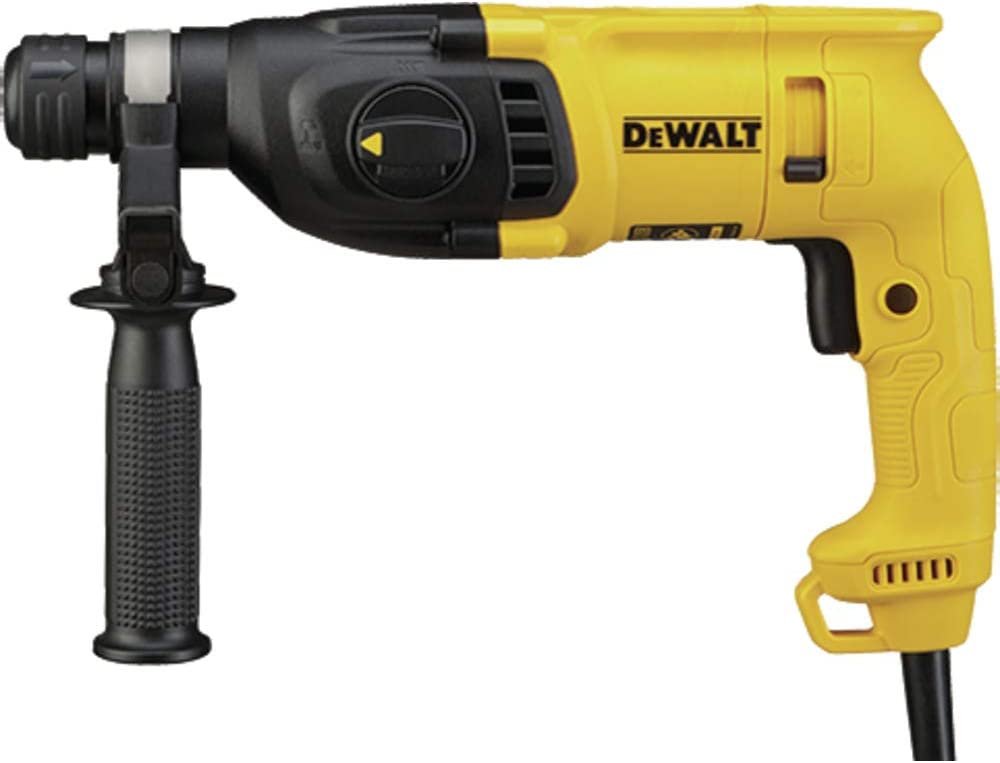

22MM 3 MODE SDS PLUS HAMMER + CHUCK

Ideal for drilling anchor and fixing holes into concrete and masonry from 4 to 22 mm in diameter
• Ideal for drilling anchor and fixing holes into concrete and masonry from 4 to 22 mm in diameter
• Rotation-stop for light chiseling applications in brick; soft masonry and occasionally concrete
• Impact-stop for drilling in wood; steel; ceramic and screwdriving applications
• Large hammer mechanism delivers high performance with low stress to the critical components resulting in better durability
• Mechanical clutch eliminates sudden high-torque reaction should the bit jam
• Electronic variable speed for total control in any application
• Rounded ergonomic industrial design allows easy and comfortable handling in any application
• Improved sealing for maximum protection from dust ingress ensuring long tool life
• Output air slots designed to protect users’ eye

SKU: D25033C-B5 Category:
Description

FEATURES
——–
• Ideal for drilling anchor and fixing holes into concrete and masonry from 4 to 22 mm in diameter
• Rotation-stop for light chiseling applications in brick; soft masonry and occasionally concrete
• Impact-stop for drilling in wood; steel; ceramic and screwdriving applications
• Large hammer mechanism delivers high performance with low stress to the critical components resulting in better durability
• Mechanical clutch eliminates sudden high-torque reaction should the bit jam
• Electronic variable speed for total control in any application
• Rounded ergonomic industrial design allows easy and comfortable handling in any application
• Improved sealing for maximum protection from dust ingress ensuring long tool life
• Output air slots designed to protect users’ eye

TECHNICAL DATA
————–
• Tool Holder: SDS-Plus
• Power Input: 710 Watts
• Power Output: 590 Watt
• Impact energy (EPTA 05/2009): 2.0 J
• No Load Speed: 0-1550 rpm
• Blows per Minute: 0-5680 bpm
• Max. Drilling Capacity [Concrete]: 22 mm
• Max. Drilling Capacity [Core bit]: 50 mm
• Max. Drilling Capacity [Wood]: 30 mm
• Max. Drilling Capacity [Metal]: 13 mm
• Weight: 2.5 kg
• Length: 330 mm
• Height: 210 mm
• Width: 75 mm
• Hand/Arm Vibration – Hammer drilling into concrete: 13.6 m/s²
• Uncertainty K 1 (Vibration): 1.5 m/s²
• Hand/Arm Vibration – Chiselling: 12.5 m/s²
• Uncertainty K 2 (Vibration): 1.5 m/s²
• Hand/Arm Vibration – Drilling into metal: <2.5 m/s² • Uncertainty K 3 (Vibration): 1.5 m/s² • Hand/Arm Vibration – Screw driving without impact: <2.5 m/s² • Uncertainty K 4 (Vibration): 1.5 m/s² • Sound Pressure: 89 dB(A) • Sound Pressure Uncertainty: 3.8 dB(A) • Sound Power: 100.1 dB(A) • Sound Power Uncertainty: 3.8 dB(A) Tool Holder: SDS-Plus Power Input: 710 Watts Power Output: 590 Watt Impact energy (EPTA 05/2009): 2.0 J No Load Speed: 0-1550 rpm Blows per Minute: 0-5680 bpm Max. Drilling Capacity [Concrete]: 22 mm Max. Drilling Capacity [Core bit]: 50 mm Max. Drilling Capacity [Wood]: 30 mm Max. Drilling Capacity [Metal]: 13 mm Weight: 2.5 kg Length: 330 mm Height: 210 mm Width: 75 mm Hand/Arm Vibration – Hammer drilling into concrete: 13.6 m/s² Uncertainty K 1 (Vibration): 1.5 m/s² Hand/Arm Vibration – Chiselling: 12.5 m/s² Uncertainty K 2 (Vibration): 1.5 m/s² Hand/Arm Vibration – Drilling into metal: <2.5 m/s² Uncertainty K 3 (Vibration): 1.5 m/s² Hand/Arm Vibration – Screw driving without impact: <2.5 m/s² Uncertainty K 4 (Vibration): 1.5 m/s² Sound Pressure: 89 dB(A) Sound Pressure Uncertainty: 3.8 dB(A) Sound Power: 100.1 dB(A) Sound Power Uncertainty: 3.8 dB(A) Readmoreless
