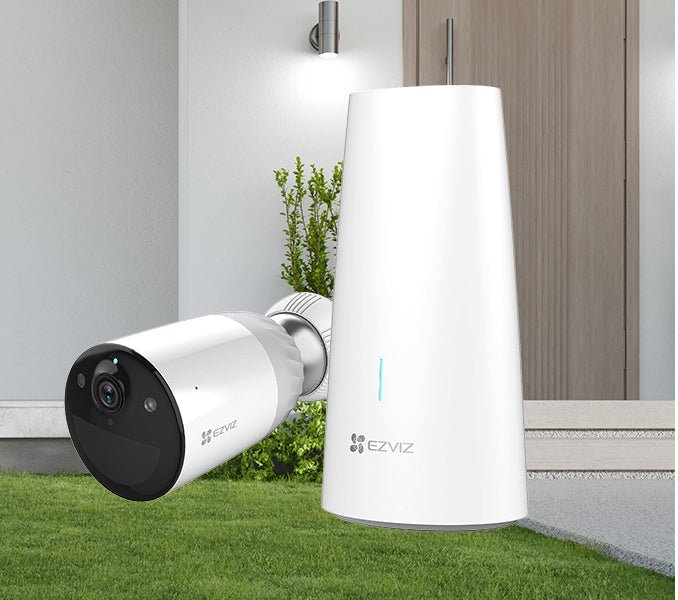

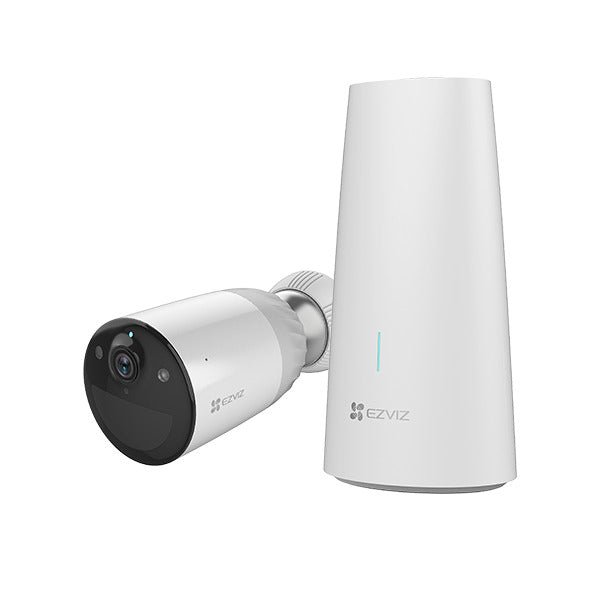

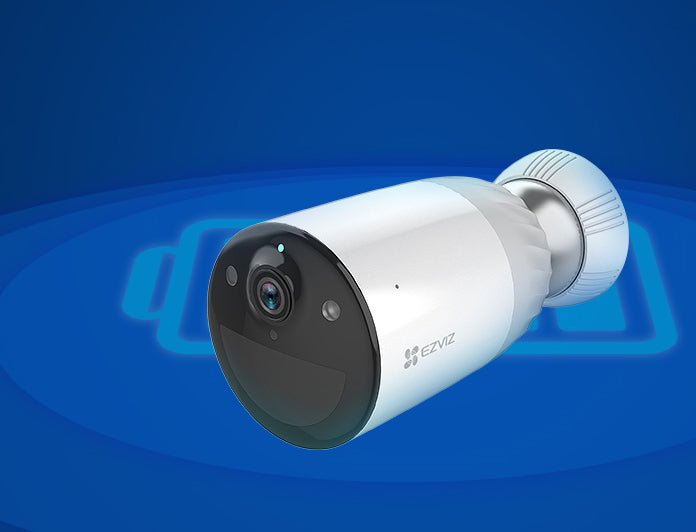

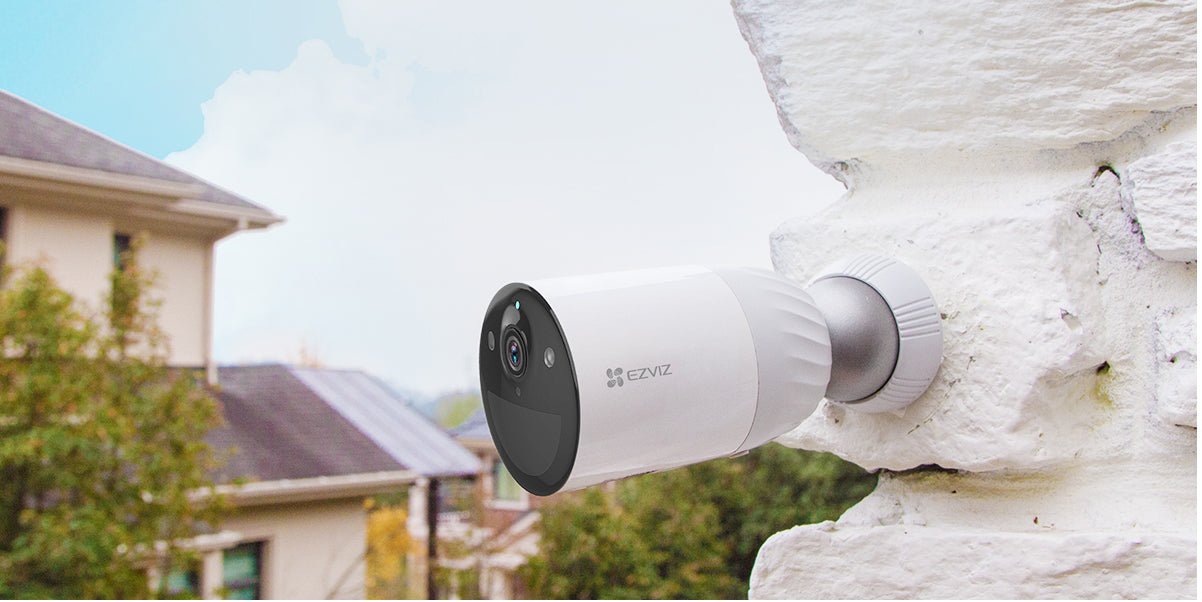

BC1 BATTERY-POWERED CAMERA KIT
1080p Video
• 1080p Video
• 12,900 mAh Rechargeable Lithium Battery

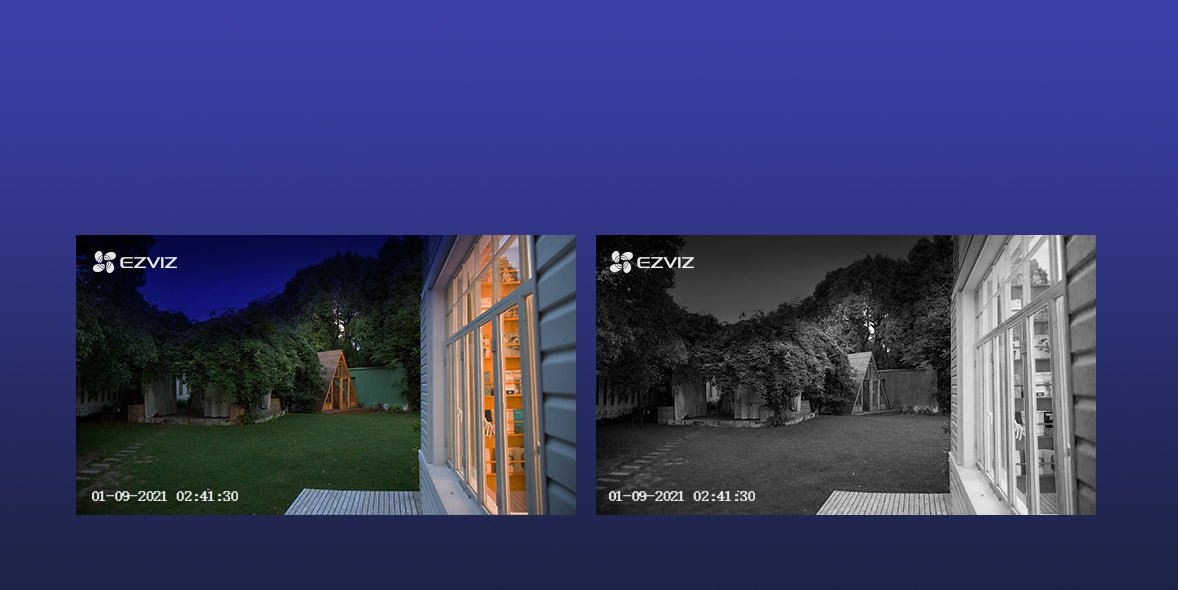

• Color Night Vision
• Smart Human Motion Detection
• Active Defense
• Customizable Voice Alerts
• Two-Way Talk

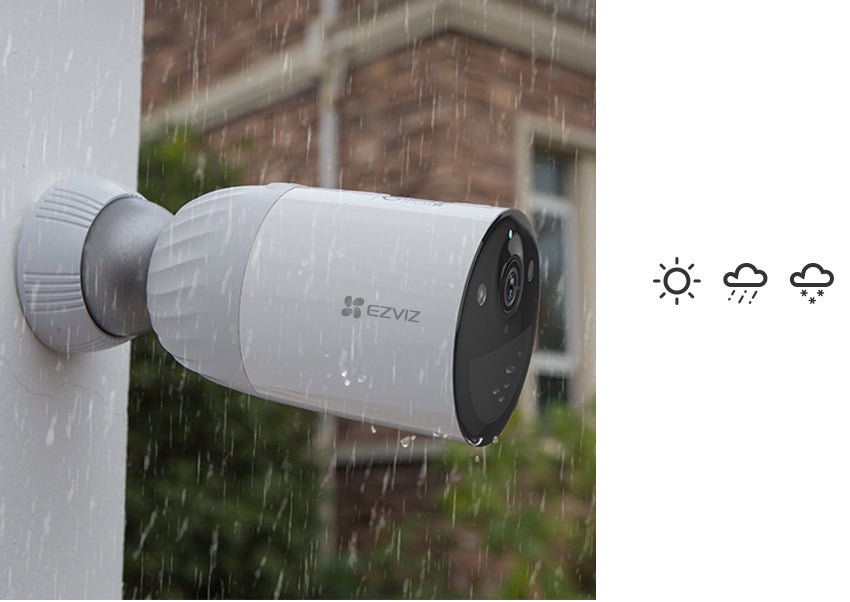

• IP66 Dust and Water Protection
• Supports 2.4 GHz Wi-Fi
• H.265 Video Compression
• Base Station Included (Supports MicroSD Cards up to 256 GB)
• Works with EZVIZ Solar Panel for Battery Charging
• Up to 4 BC1 cameras*
• Easy pairing in seconds
• Built-in 125 dB siren*
• MicroSD card slot (up to 256 GB)
• AES 128-bit encryption
• TLS encryption protocol
• Multiple authentication steps
• Live View
• Audio Reception
• Instant Alerts
• Video History
• Up to 8x Zoom
• Smart Home Enabled
FEATURES
——–
• 1080p Video
• 12,900 mAh Rechargeable Lithium Battery
• Color Night Vision
• Smart Human Motion Detection
• Active Defense
• Customizable Voice Alerts
• Two-Way Talk
• IP66 Dust and Water Protection
• Supports 2.4 GHz Wi-Fi
• H.265 Video Compression
• Base Station Included (Supports MicroSD Cards up to 256 GB)
• Works with EZVIZ Solar Panel for Battery Charging
• Up to 4 BC1 cameras*
• Easy pairing in seconds
• Built-in 125 dB siren*
• MicroSD card slot (up to 256 GB)
• AES 128-bit encryption
• TLS encryption protocol
• Multiple authentication steps
• Live View
• Audio Reception
• Instant Alerts
• Video History
• Up to 8x Zoom
• Smart Home Enabled
SYSTEM PARAMETERS
—————–
• Processor: High-Performance Embedded SOC Processor
• Operating System: Linux
CAMERA PARAMETERS
—————–
• Image sensor: 1/2.8” 2-Megapixel Progressive Scan CMOS Sensor
• Lens: 2.8 mm @ F1.6; 128° (Diagonal), 108° (Horizontal)
• Lens Mount: M12
• Night Vision: IR Distance:10m, IR-cut filter with auto-switching
VIDEO PARAMETERS
—————-
• Video Compression: H.265
• Max. Resolution: FHD 1920 x 1080
• Frame Rate: 15fps. Self-Adaptive during network transmission
• DNR: 3D DNR
• WDR: DWDR
AUDIO PARAMETERS
—————-
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression
CAMERA EVENT
————
• Sensor: PIR Motion Detection Sensor
• Alarm: Customized Alert Area
• Siren: 105 dB built-in siren
CAMERA NETWORK PARAMETERS AND STORAGE
————————————-
• Wireless: Built-in 2.4G Wi-Fi
• Network Configuration: AP Pairing
• Minimum Network Requirement: 1Mbp
• Local Storage: Support MicroSD card up to 256 GB in Base Station
• Cloud Storage: EZVIZ Cloud Storage
BASE STATION PARAMETERS
———————–

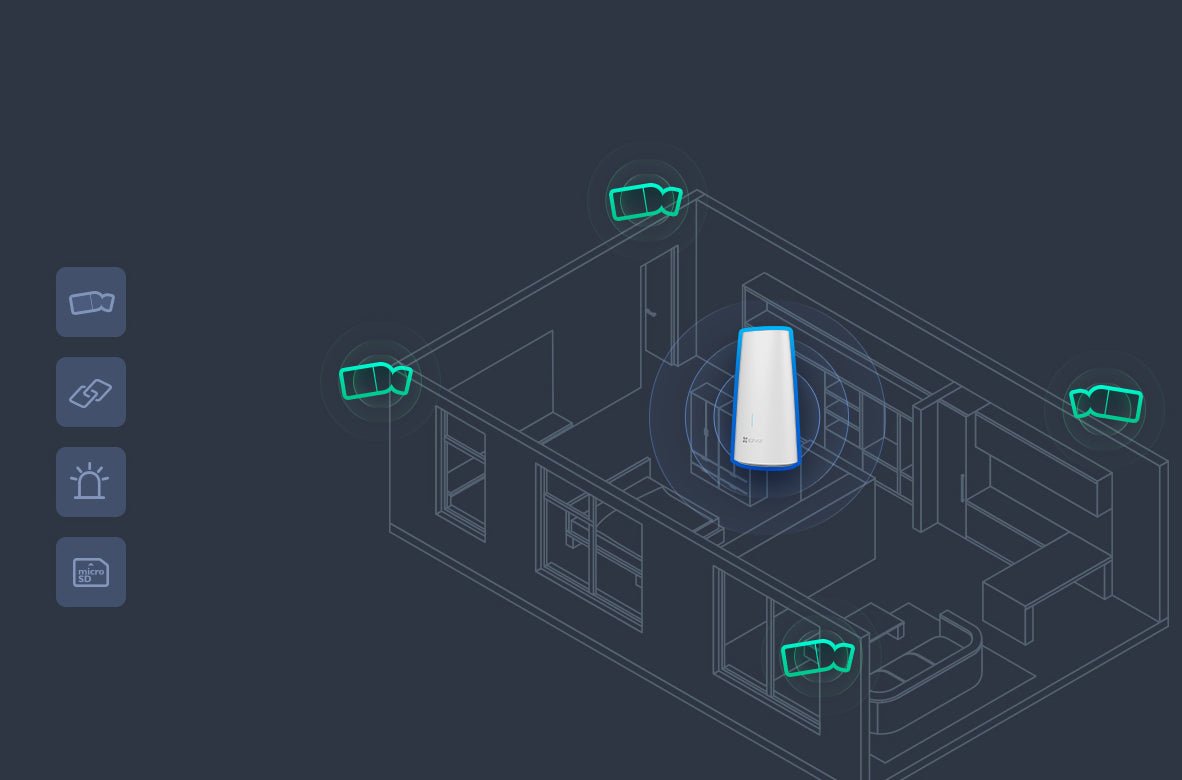

• Camera pairing: Support up to 4 BC1 cameras
• Buttons: 1 SYNC button; 1 POWER button; 1 RESET button (hold 5 seconds to RESET)
• Siren: 125 dB built-in siren
• Local Storage: MicroSD card slot on the base station (up to 256 GB)
• Antenna: 2.4G: 2 internal @ 3dB
• Indicator: RGB 3 LED Indicator; 1 network Indicator
• USB: Do not support
• Network Interface: 1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface.
• Wireless Interface: Support 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at
• 802.11b/g/n.
• Power: 12V/1A typical power consumption < 12watts; The adapter supports a wide voltage range from 100V~240V
GENERAL
-------
• Operating Conditions: -20°C to 45°C (-4°F to 113 °F), Humidity 95% or less (non-condensing)
• Power Supply: 12900mAh Rechargeable Lithium Battery or 5V DC
• Power Consumption: Max. 5W
• IP Grade: IP 66
• Dimensions: Camera: 104.76 x 62.80 x 62.80 mm (4.12 x 2.47 x 2.47 inch)
• Base: 81.97 x 63.97 x 160.22 mm (3.23 x 2.52 x 6.31 inch)
• Packaging Dimensions: 260.00 x 217.00 x 180.00 mm (10.24 x 8.54 x 7.09 inch)
• Weight: 1304 g (46 oz)
IN THE BOX
----------
• BC1 Camera
• Base Station
• Magnetic Base
• Screw Base
• Power Adapter (For Base Station)
• Power Adapter (For Camera)
• USB Cable
• Mounting Plate
• Drill Template
• Screw Kit
• Regulatory Information
• Quick Start Guide
CERTIFICATIONS
--------------
• CE/FCC/WEEE/ROHS/REACH/UL
