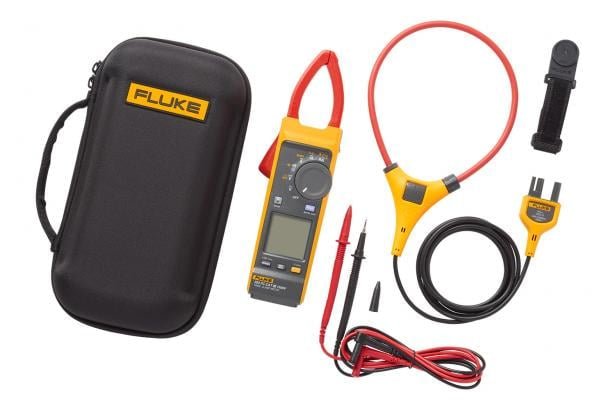

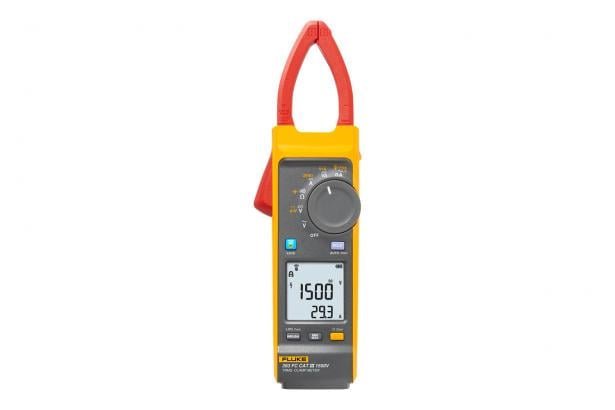

FLUKE 393 FC CAT III 1500 V TRUE-RMS SOLAR CLAMP METER WITH IFLEX
The Fluke 393 FC CAT III 1500 V True-RMS Solar Clamp Meter is engineered for professionals working in high-voltage DC environments, particularly in solar photovoltaic (PV) installations. It measures up to 1500 V DC and 1000 V AC using test leads, and up to 999.9 A DC or AC through the clamp jaw. The included iFlex® flexible current probe extends AC current measurement capabilities up to 2500 A, providing enhanced flexibility in tight spaces. The meter features a thin jaw design, allowing access to cables in crowded combiner boxes, and is rated IP54, making it suitable for outdoor use. Additional functionalities include DC power measurement displaying readings in kilowatts, an audio polarity indicator to prevent accidental miswires, and visual continuity that provides a bright green light in the display, ideal for working in dark or noisy environments. The Fluke 393 FC is safety rated for CAT III 1500 V, ensuring user protection during high-voltage measurements.
Description
FEATURES
——–
• The Fluke 393 FC CAT III 1500 V True-RMS Solar Clamp Meter is engineered for professionals working in high-voltage DC environments, particularly in solar photovoltaic (PV) installations. It measures up to 1500 V DC and 1000 V AC using test leads, and up to 999.9 A DC or AC through the clamp jaw. The included iFlex® flexible current probe extends AC current measurement capabilities up to 2500 A, providing enhanced flexibility in tight spaces. The meter features a thin jaw design, allowing access to cables in crowded combiner boxes, and is rated IP54, making it suitable for outdoor use. Additional functionalities include DC power measurement displaying readings in kilowatts, an audio polarity indicator to prevent accidental miswires, and visual continuity that provides a bright green light in the display, ideal for working in dark or noisy environments. The Fluke 393 FC is safety rated for CAT III 1500 V, ensuring user protection during high-voltage measurements.
• Specification :
• Specification
• Value
• DC Voltage Range
• Up to 1500 V
• AC Voltage Range
• Up to 1000 V
• AC Current Range
• Up to 1000 A (2500 A with iFlex®)
• DC Current Range
• Up to 1000 A
• DC Power Measurement
• Displays in kilowatts
• Resistance Measurement
• Up to 60,000 Ω
• Frequency Measurement
• 5 Hz to 500 Hz
• Safety Rating
• CAT III 1500 V
• IP Rating
• IP54
• Wireless Connectivity

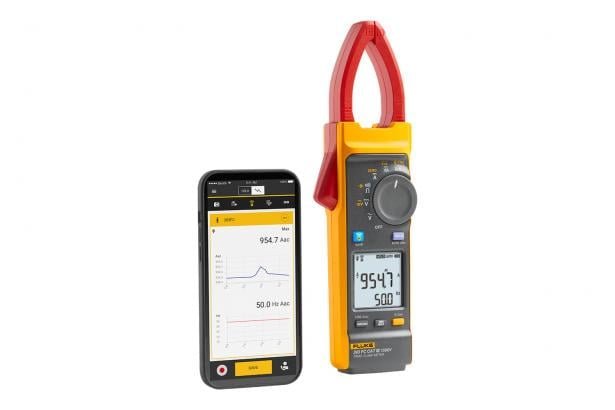

• Fluke Connect® compatibility
• Dimensions
• 293 x 96 x 52 mm
• Weight
• 870 g
