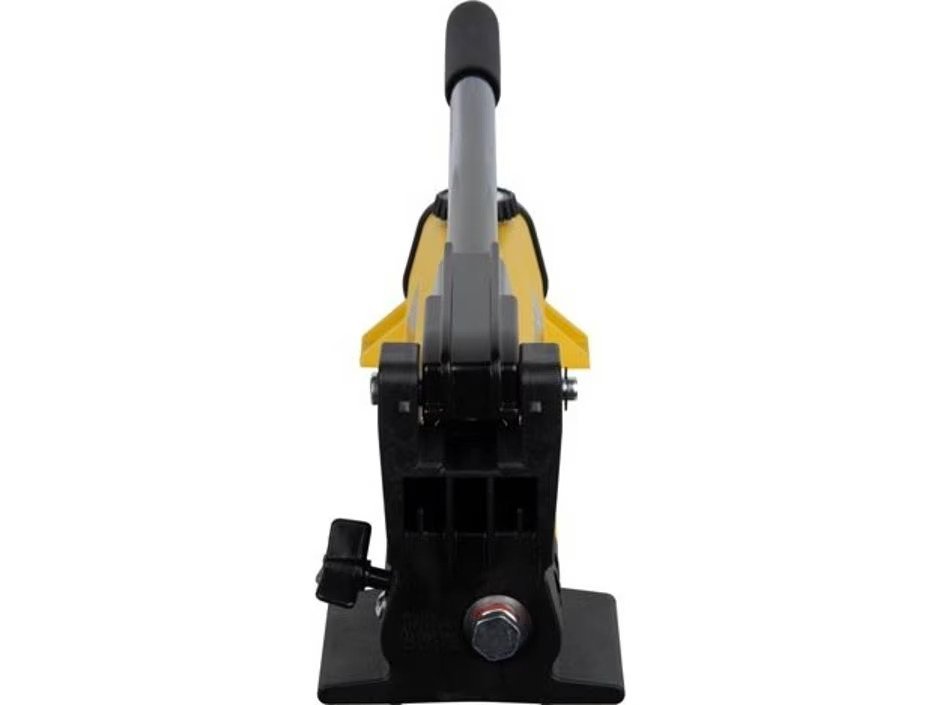

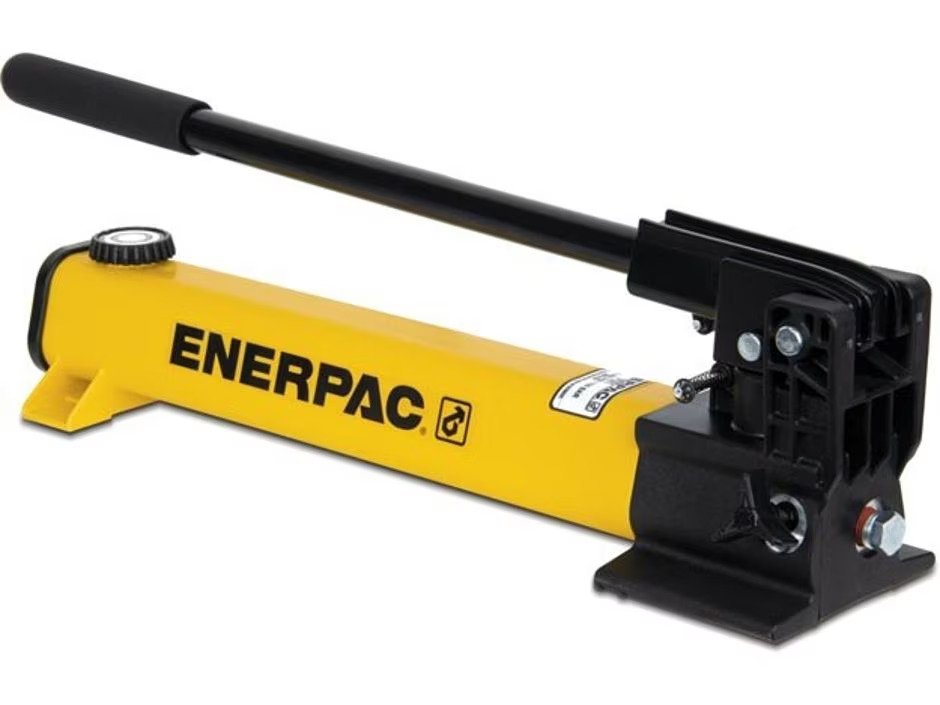

LIGHTWEIGHT HYDRAULIC HAND PUMP, SINGLE SPEED, 700 BAR | P391
Lightweight and compact design
• Lightweight and compact design
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
• Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
• Lower handle effort to minimize operator fatigue
• Handle lock and lightweight construction for easy carrying
• Large oil capacities to power a wide range of cylinders or tools
• Non-conductive fiberglass handle for operator safety
• Internal pressure relief valve for overload protection
Description
FEATURES
——–
• Lightweight and compact design
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
• Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
• Lower handle effort to minimize operator fatigue
• Handle lock and lightweight construction for easy carrying
• Large oil capacities to power a wide range of cylinders or tools
• Non-conductive fiberglass handle for operator safety
• Internal pressure relief valve for overload protection
ABOUT PRODUCT
————-
Enerpac lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 10,000 psi (700 bar).
The durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base offers an unrivalled combination of strength, weight, and resistance to corrosion.

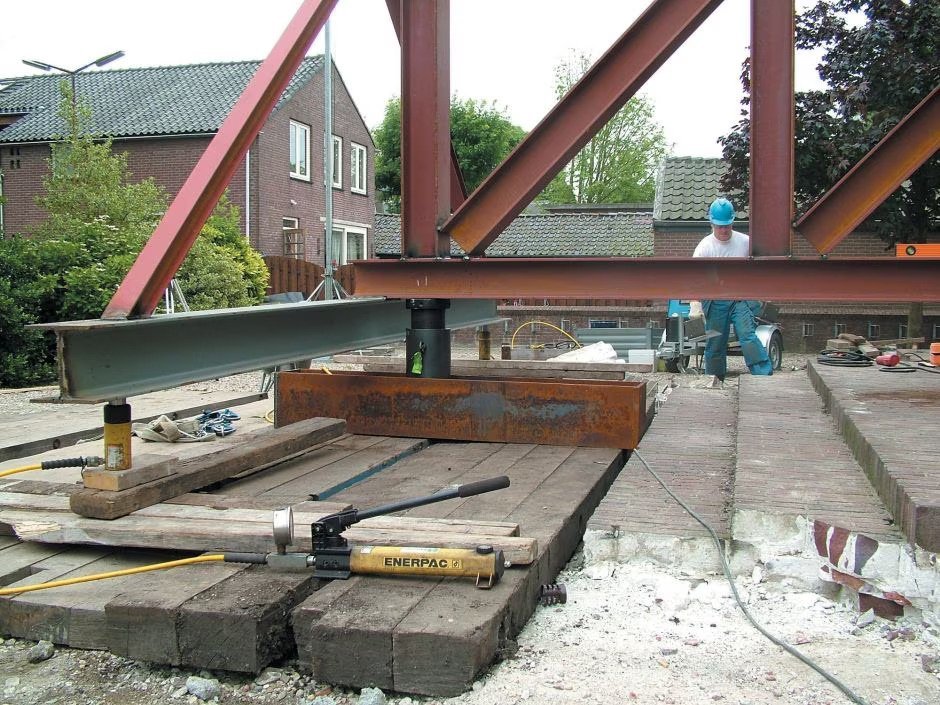

Lightweight single-speed hydraulic hand pumps offer the simplicity needed for a wide range of industrial applications. The 2-stage hydraulic models reduce the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal when you want to advance a tool such as a cylinder to the point of load contact. High flow is delivered when it’s needed most before the pump automatically switches to the low flow high-pressure stage.
With a choice of oil capacities up to 453 in3 (7423 cm3), we’re certain you’ll find a lightweight hydraulic hand pump to handle multiple cylinder hook-ups. For compatibility with double-acting tools choose the P842.
SPECIFICATIONS
————–
• aximum Operating Pressure (bar) : 700
• Pressure Rating 1st Stage (bar) : 700
• Cylinder Compatability : Single-acting
• Pump Type : Single Speed
• Reservoir Capacity (cm3) : 901
• Usable Oil Capacity (cm3) : 901
• Maximum Flow at Rated Pressure : 2,47 cm3/stroke
• Oil Displacement Per Stroke 1st Stage (cm3) : 2,47
• Maximum Handle Effort (kg) : 38,6
• Piston Stroke (mm) : 25,4
• Valve Operation : Manual
• Power Source : Manual
• Weight (kg) : 4,1
Readmoreless
