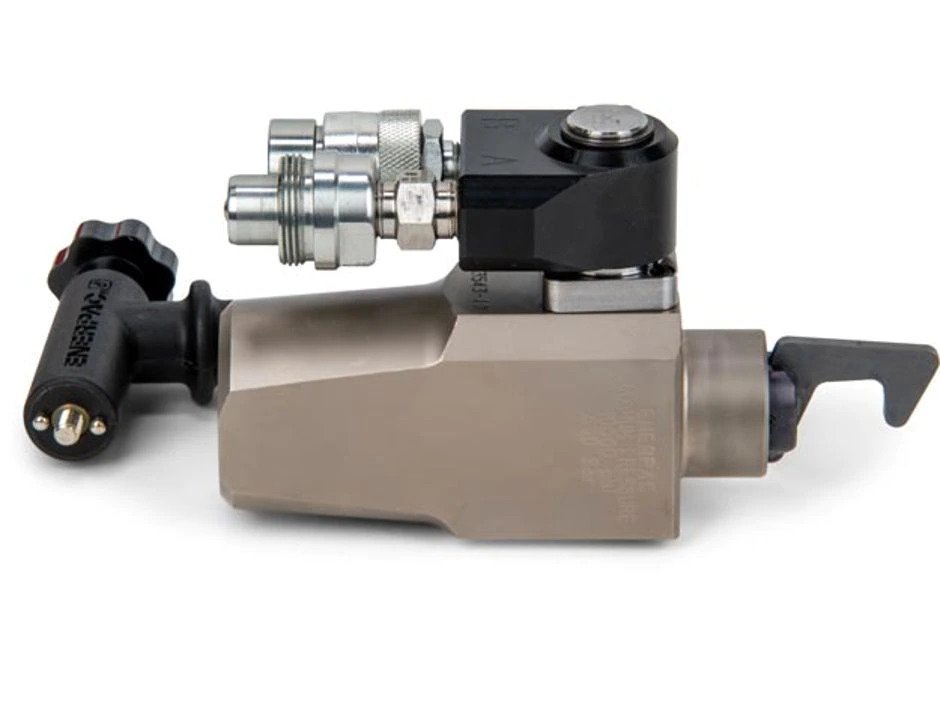

LOW PROFILE HYDRAULIC TORQUE WRENCH DRIVE UNIT 5.661 NM | W4000X
Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
• Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
• 30° rotation angle and rapid return stroke provide fast operation
• Tough manifold design with added safety feature for enhanced operator safety
• Fast release drive unit enables rapid exchange of cassettes, no tools required
• Quick and easy disassembly for maintenance without special tools

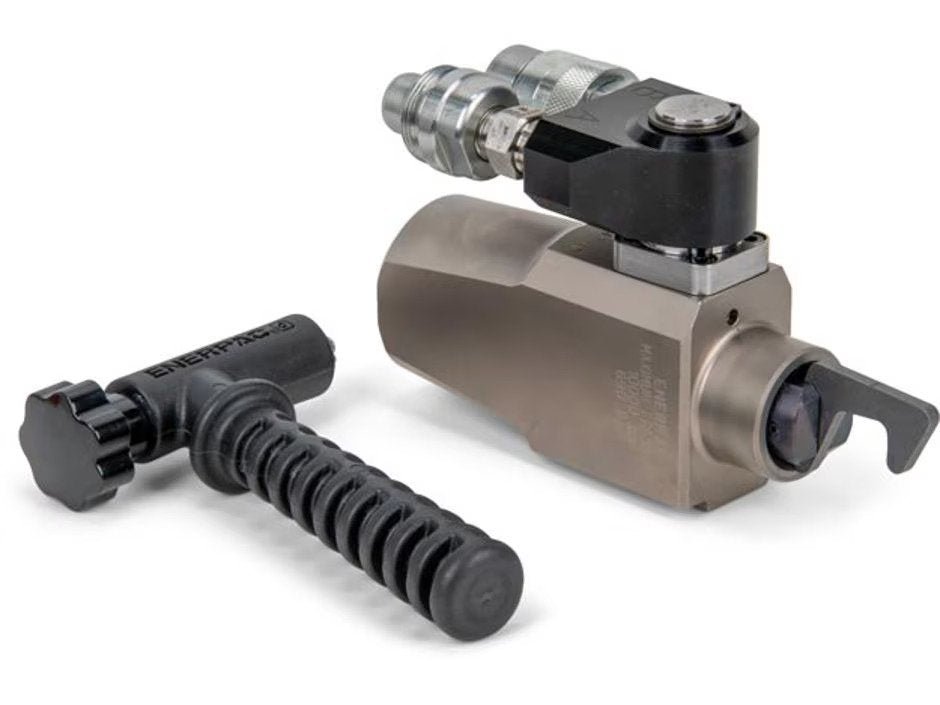

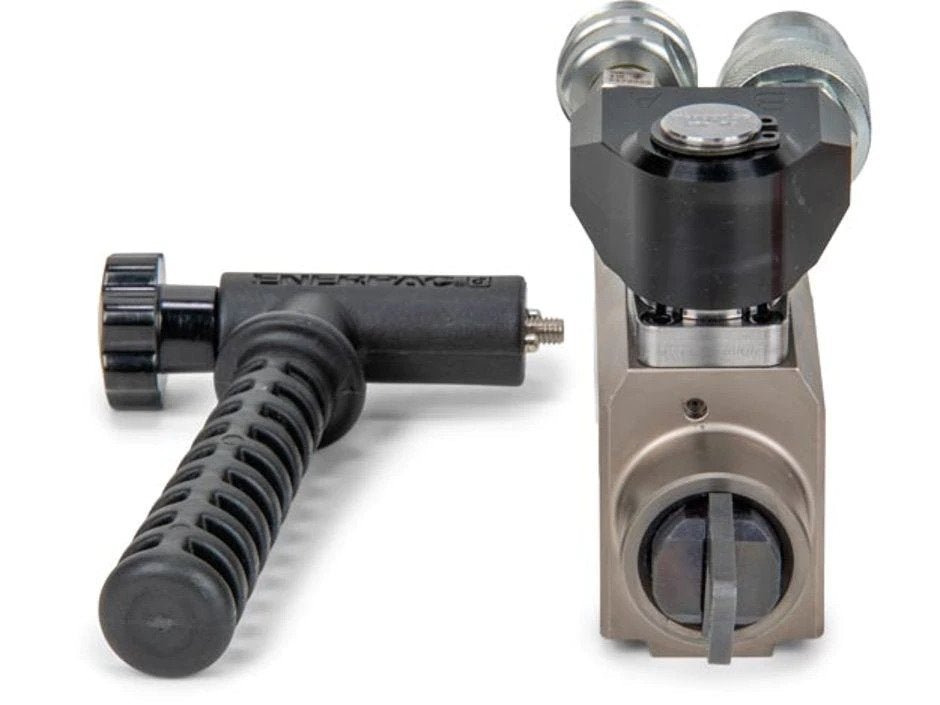

• Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
• X-Edition drive units, cassettes and most accessories are compatible with standard edition tools.
• Drive unit compatible with UltraSlim and WCR-Series cassettes
• Constant torque output provides accuracy of +/-3% across full stroke
Description
FEATURES
——–
• Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
• 30° rotation angle and rapid return stroke provide fast operation
• Tough manifold design with added safety feature for enhanced operator safety
• Fast release drive unit enables rapid exchange of cassettes, no tools required
• Quick and easy disassembly for maintenance without special tools
• Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
• X-Edition drive units, cassettes and most accessories are compatible with standard edition tools.
• Drive unit compatible with UltraSlim and WCR-Series cassettes
• Constant torque output provides accuracy of +/-3% across full stroke
ABOUT PRODUCT
————-
X-Edition hexagon hydraulic torque wrenches set a new standard in safety, simplicity and performance
SPECIFICATIONS
————–
• Nominal Torque Rated At : 10000 psi 690 bar
• Maximum Torque Output (Ft.lbs) : 4175
• Maximum Torque Output (Nm) : 5661
• Minimum Torque Rated At : 1000 psi 69 bar
• Minimum Torque (Ft.lbs) : 418
• Minimum Torque (Nm) : 566
• Hexagon Range (in) : 1 5/16 – 3 3/8
• Hexagon Range (mm) : 36 – 85
• Weight (kg) : 2.0
Readmoreless
