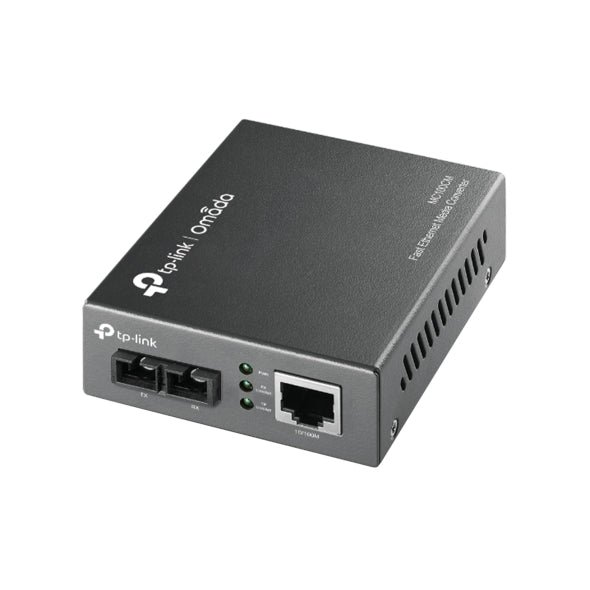

10/100MBPS MULTI-MODE MEDIA CONVERTER

Convert fiber to copper media seamlessly with the MC100CM, supporting standards up to 2km.

The MC100CM is a high-performance media converter designed to seamlessly convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. It supports IEEE 802.3u 10/100Base-TX and 100Base-FX standards, ensuring reliable data transfer over a range of network environments. This device is ideal for extending fiber distances up to 2 kilometers using multi-mode fiber. Additionally, it offers the flexibility of standalone operation or integration with TP-LINK’s TL-MC1400 chassis. Featuring auto MDI/MDI-X for TX port and auto negotiation of duplex mode, the MC100CM ensures ease of use and compatibility with various network configurations.

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Extends fiber distance up to 2km
• Auto MDI/MDI-X for TX port
• Standalone or chassis-based operation with TP-LINK’s TL-MC1400

Specification: Value
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Ports: 1 100M SC/UPC port, 1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm
Network Media 100BASE-FX: Multi-mode Fiber
