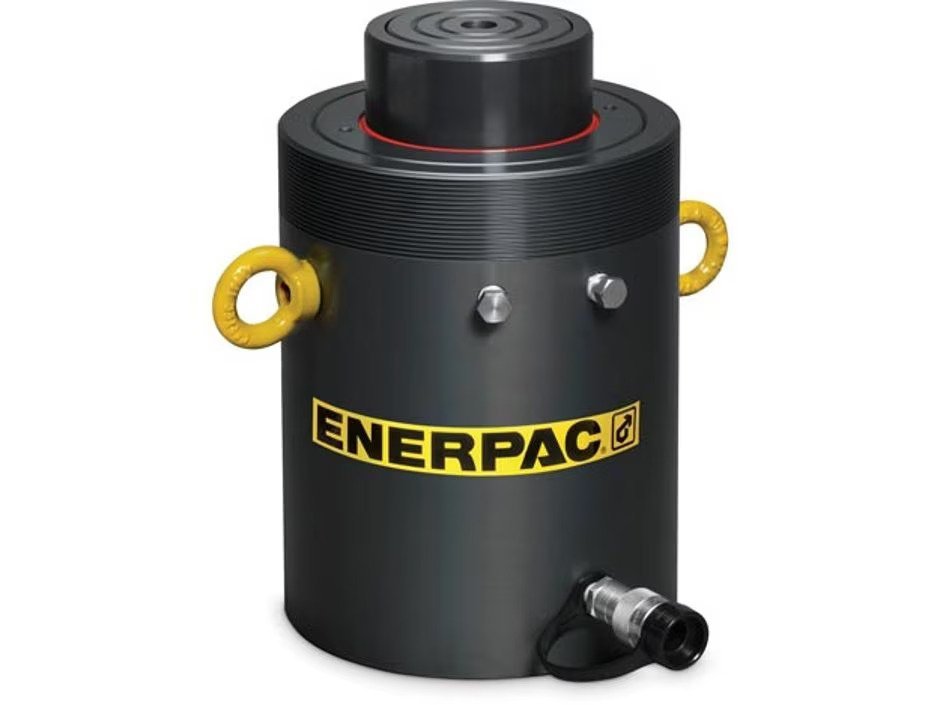

150 TON CAPACITY, 150 MM STROKE, SINGLE-ACTING, HIGH TONNAGE HYDRAULIC CYLINDER | HCG1506
Features:
Specifications:
Dimensions:
FEATURES:
———
SPECIFICATIONS:
—————
DIMENSIONS:
———–
• Hardened surface resists side-loading and cyclic wear
• 10% side-load resistance over full stroke
• Stop-ring to prevent plunger blow-out
• Weather protected, inside and out
• Upper and lower replaceable bearings enclose the cylinder plunger for
• support throughout the stroke
• Certified lifting eyes, base mounting holes and collar threads
• Maximum Operating Pressure (bar) : 700
• Capacity Class (tonnage) : 150
• Maximum Cylinder Capacity Advance (kN) : 1497
• Stroke (mm) : 150
• Collapsed Height A (mm) : 320
• Extended Height B (mm) : 470
• Return Type : Single-Acting, Load Return
• Plunger Type : Solid
• Material : Steel
• Cylinder Effective Area Advance (cm2) : 213,8
• Oil Capacity Advance (cm3) : 3207
• Sideload Resistance of Maximum Capacity (percentage) : 10%
• Surface Treatment : Nitride
