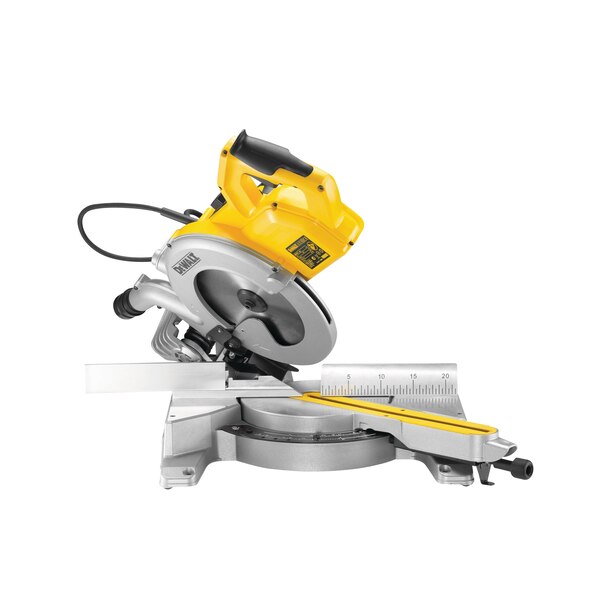

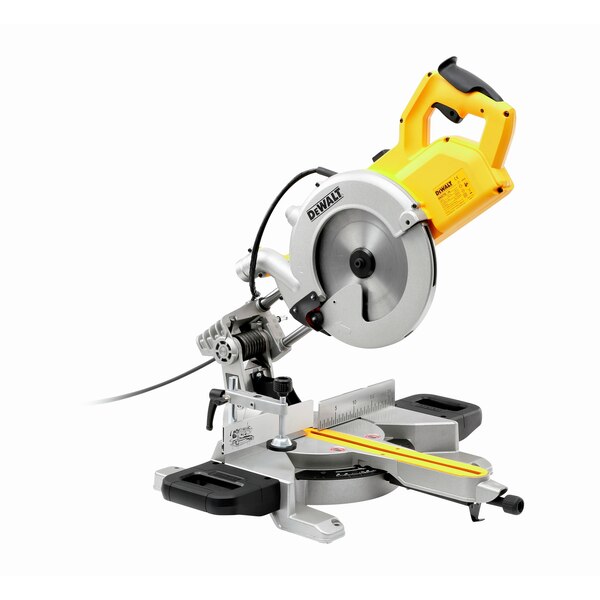

COMPACT SLIDE MITRE SAW – 250MM | DWS778-QS

Features
Technical Data
What’s Included

FEATURES
——–

TECHNICAL DATA
————–

WHAT’S INCLUDED
—————

Key Features

• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
• Built on classic pull saw design improved and updated for the modern user
• New 1850 Watt motor for powerful cutting in all materials
• Compact internal rail design for huge cutting capacity in a highly transportable format
• New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
• The base and fence have been machined to meet the accuracy requirements of the most demanding applications

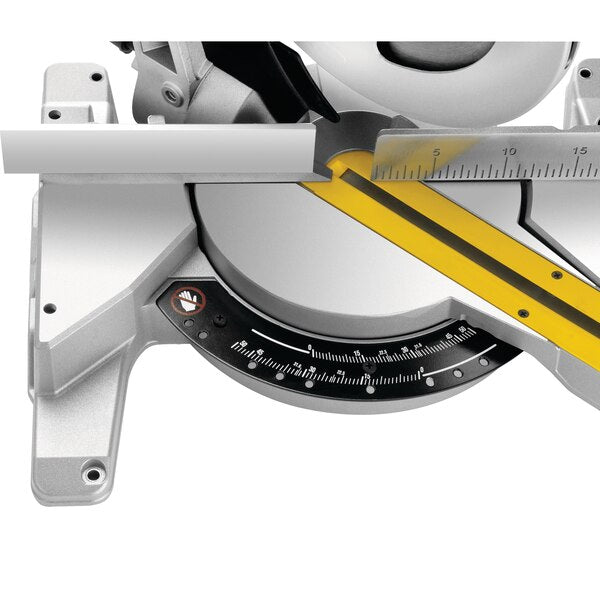

• Sliding left hand fence with measuring scale for improved material support and management
• Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
• Wight 17.2 Kg
• Blade Diameter 250 mm
• Bevel Capacity 48.0 º
• Mitre Capacity [right/left] 50/50 º
• Cutting Capacity at 90°/90° (W x H) 305 x 85 mm
• Power Source Corded
• Power Input 1850W
• Power Output 1050 W
• Blade Bore 30 mm
• Blade Speed 4300.0 rpm
• Cutting Capacity at 90°/45° (W x H) 305×58 mm
• Cutting Capacity at 45°/90° (W x H) 215×85 mm
