FAZ II ZP BOLT ANCHOR

Key Features

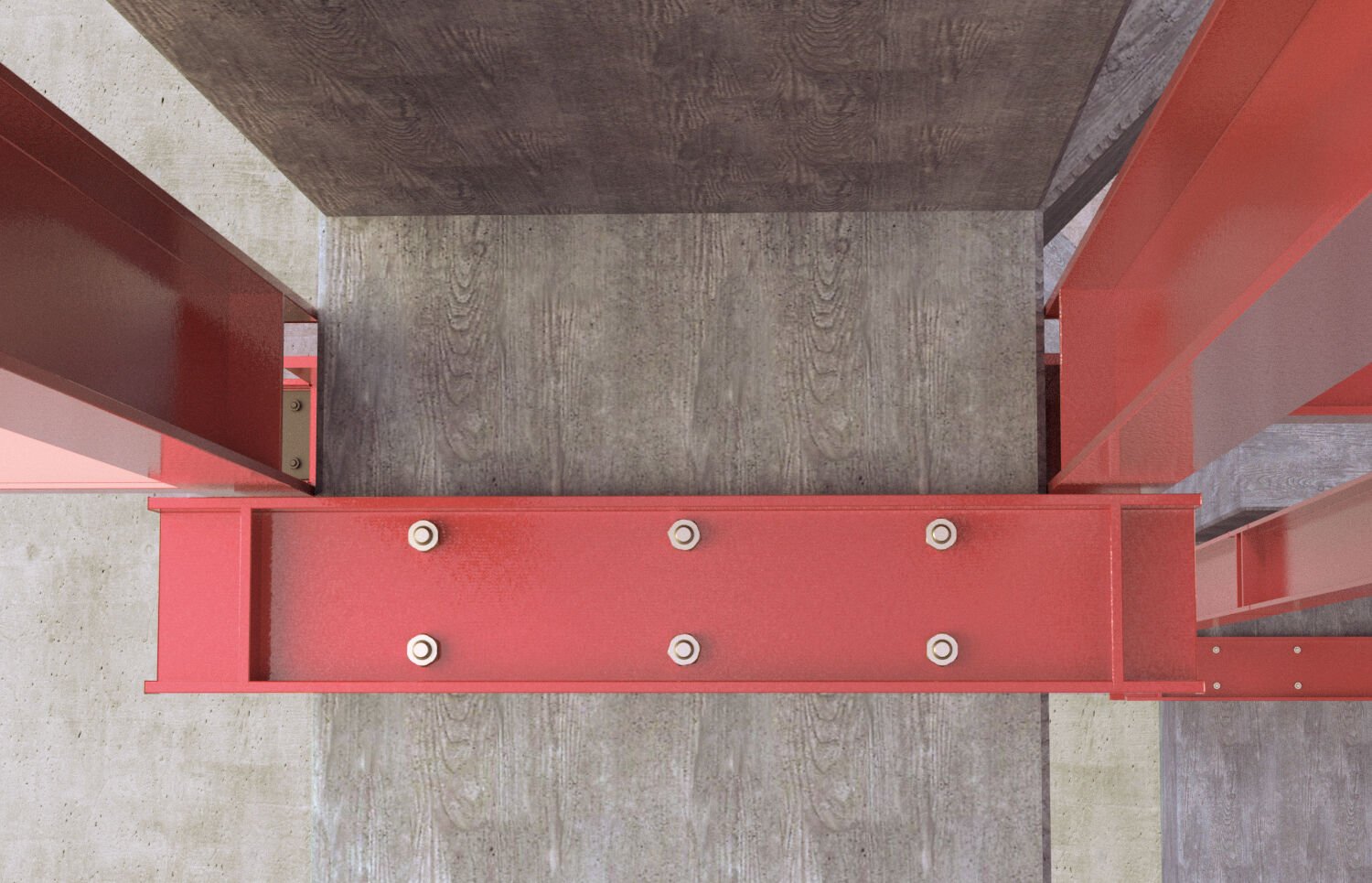

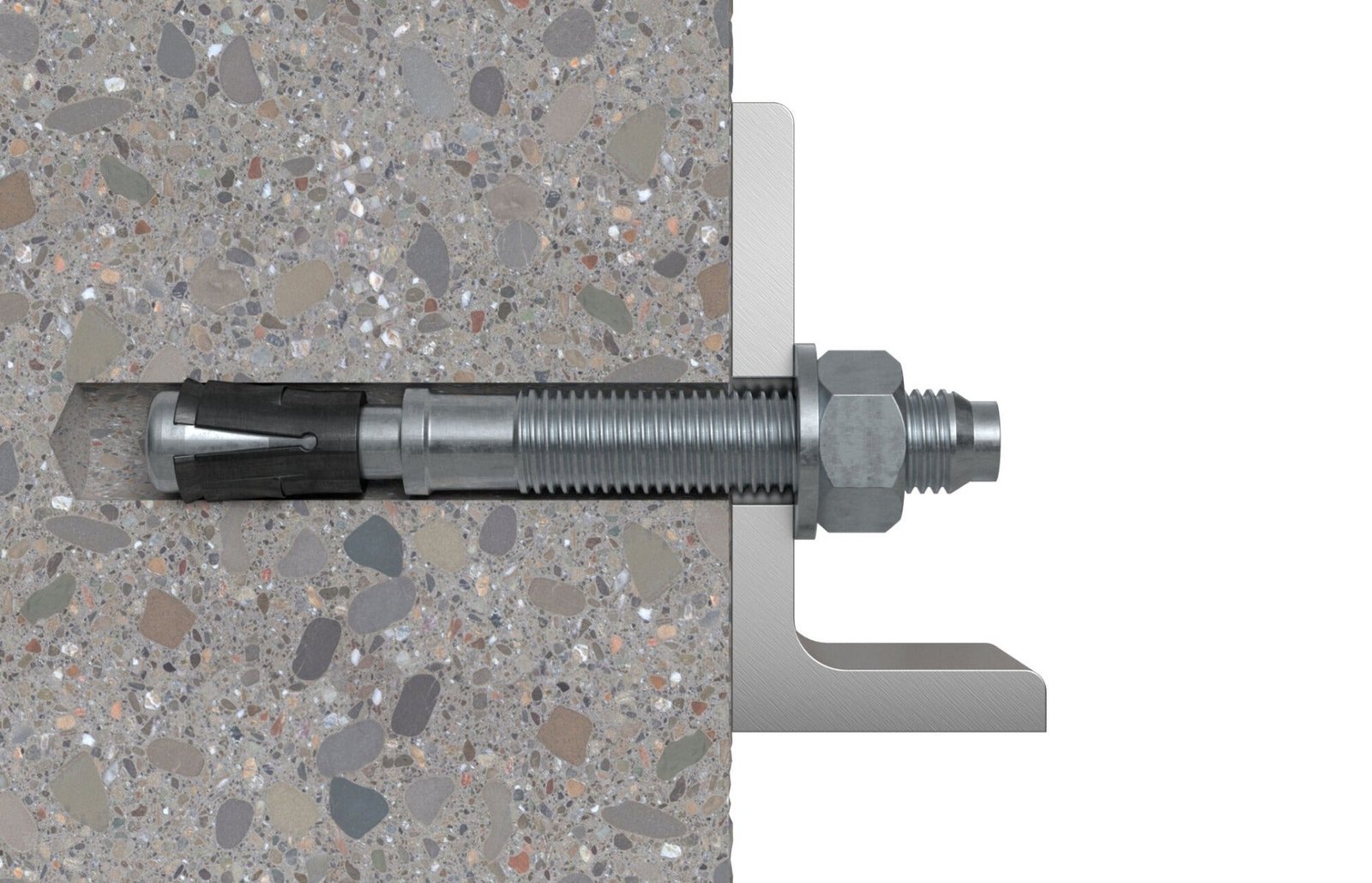

The Fischer bolt anchor FAZ II is the steel anchor for the most demanding requirements. Heavy loads are fixed into cracked concrete with the steel anchor. Due to simple mounting, the FAZ II can be used in a particularly flexible manner. The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties. The zinc-plated steel version is used to fix loads in indoor areas. The steel anchor is, for example, suitable for fixing railings, cable trays, and consoles.
Technical Data:
8/30
8/100
12/10
Advantages:
Features:
The Fischer bolt anchor FAZ II is the steel anchor for the most demanding requirements. Heavy loads are fixed into cracked concrete with the steel anchor. Due to simple mounting, the FAZ II can be used in a particularly flexible manner. The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties. The zinc-plated steel version is used to fix loads in indoor areas. The steel anchor is, for example, suitable for fixing railings, cable trays, and consoles.

TECHNICAL DATA:
—————
8/30
8/100
12/10

ADVANTAGES:
———–

FEATURES:
———

Specifications

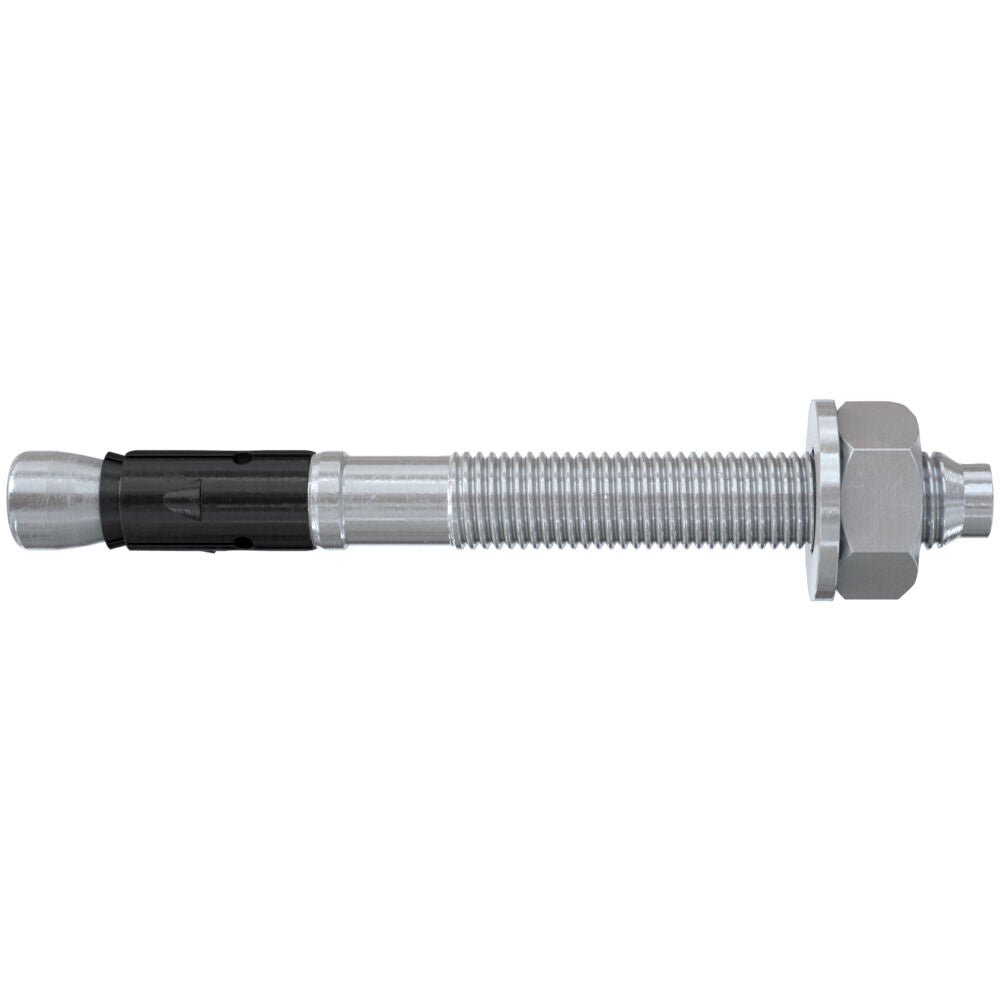

• ETA-approval: Yes
• ICC-approval: Yes
• Seismic-Approval: C1
• Drill diameter d0: 8 [mm]
• Min. drill hole depth for through fixings h2: 85[mm]
• Anchor length l: 95 [mm]
• Max. usable length hef,max./hef,min. tfix: 30 / 40[mm]
• Thread Ø x length: M8 x 58[mm]
• Width across nut SW: 13[mm]
• Packaging: Folding box

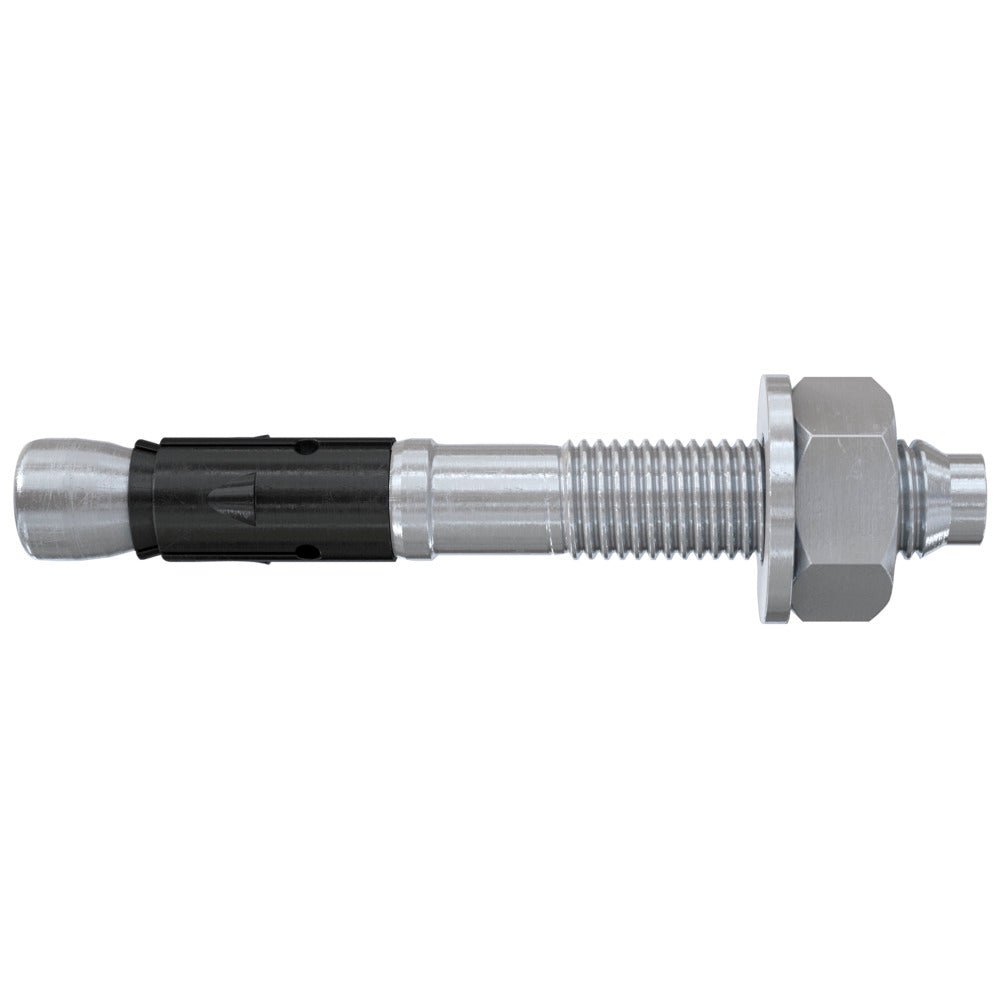

• ETA-approval: Yes
• ICC-approval: Yes
• Seismic-Approval: C1
• Drill diameter d0: 8 [mm]
• Min. drill hole depth for through fixings h2: 155[mm]
• Anchor length l: 165[mm]
• Max. usable length hef,max./hef,min. tfix: 100 / 110[mm]
• Thread Ø x length: M8 x 128[mm]
• Width across nut SW: 13[mm]
• Packaging: Folding box
