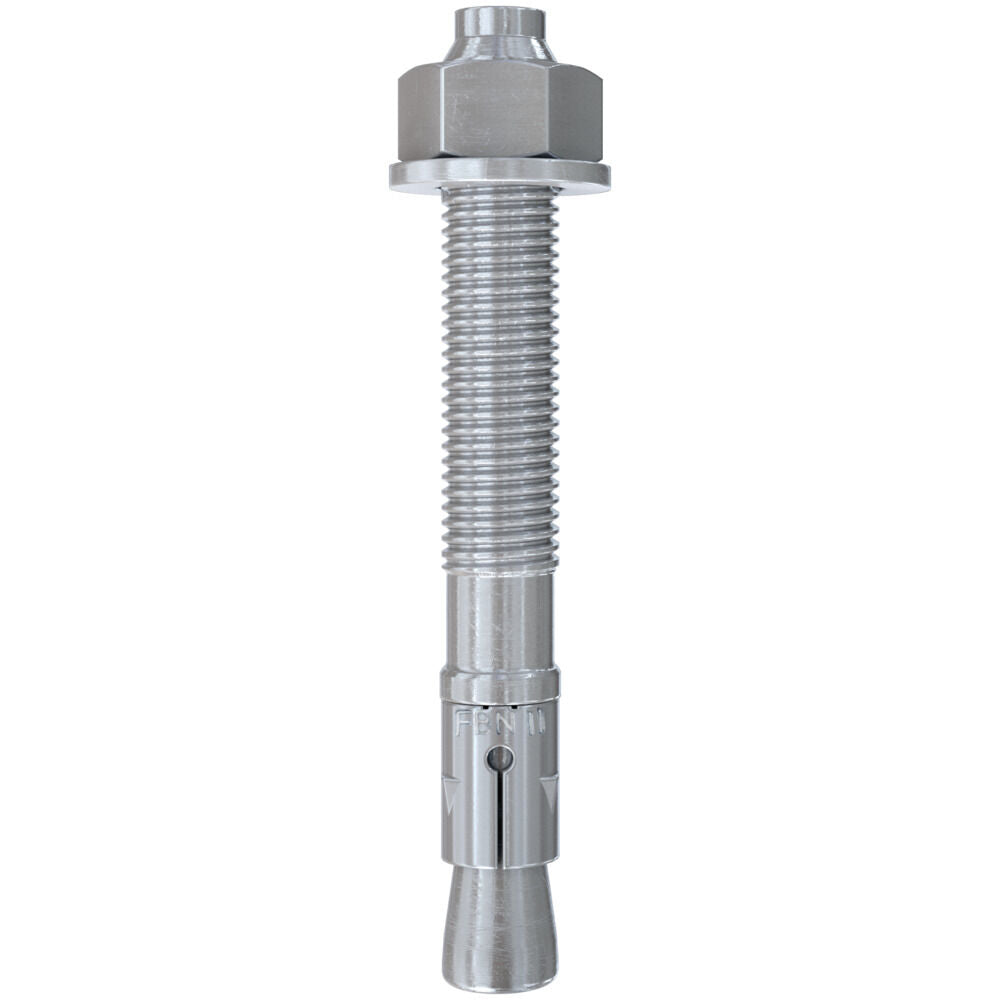

FBN II ZP BOLT ANCHOR

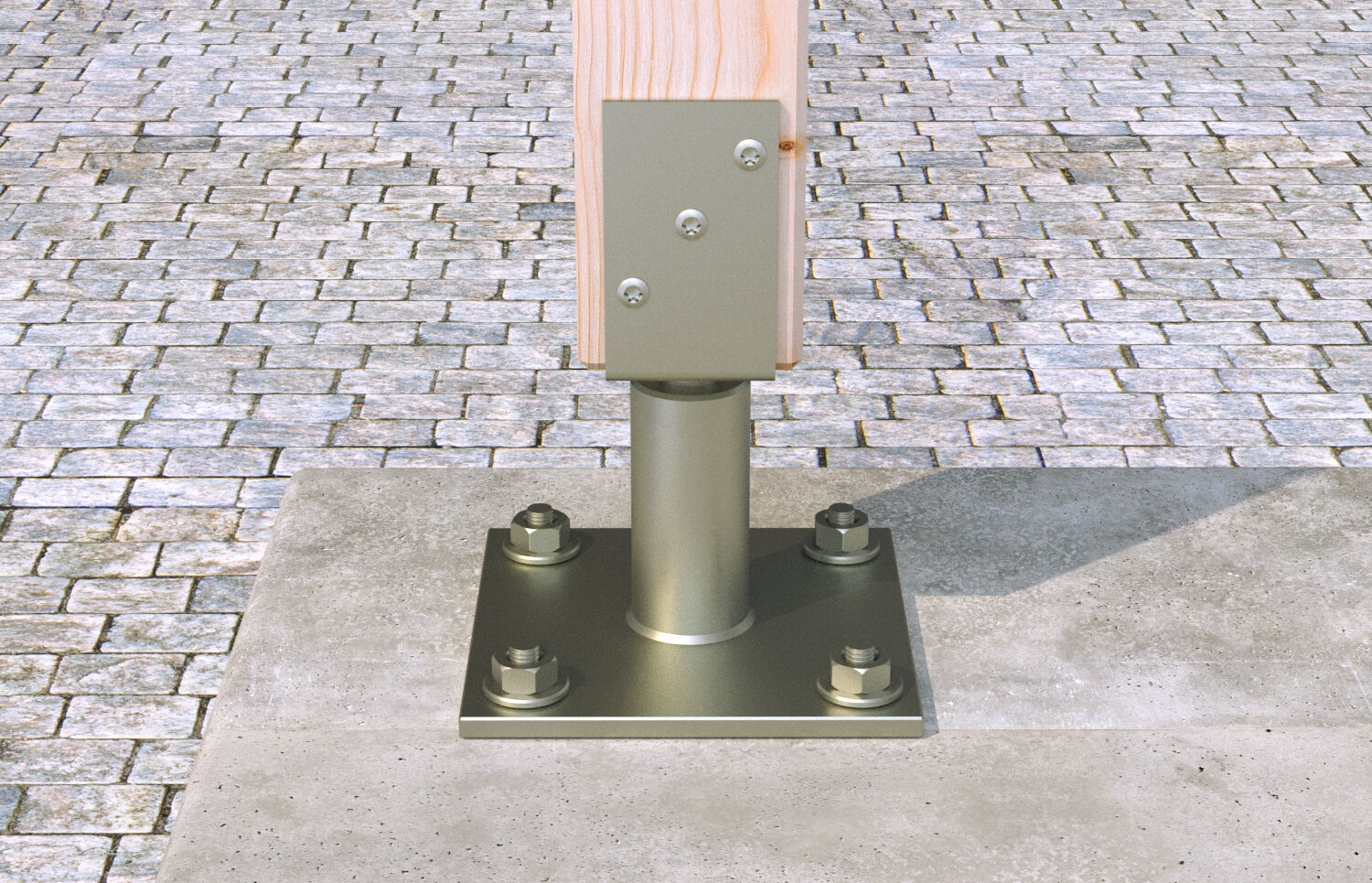

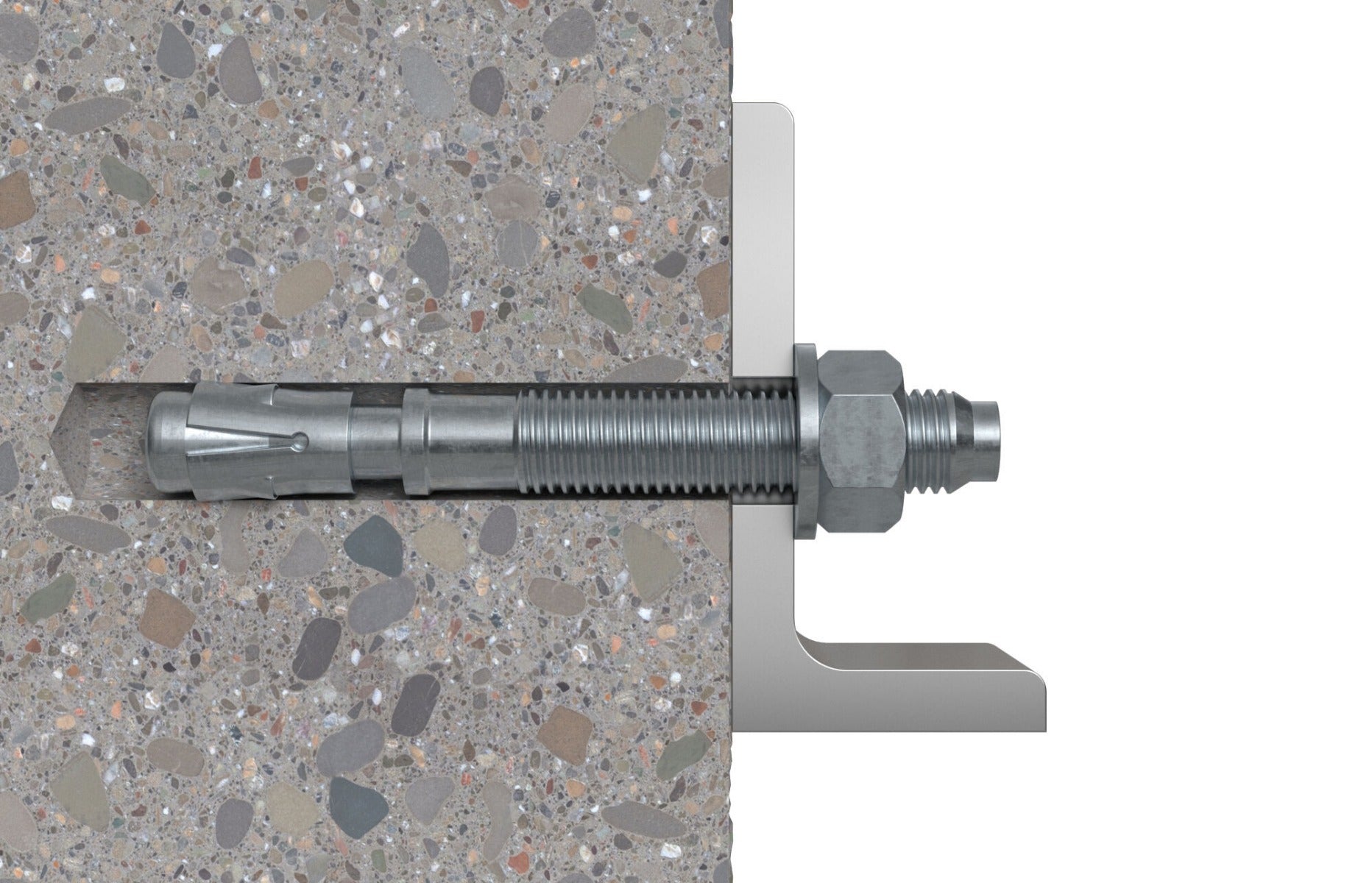

The Fischer bolt anchor FBN II is a steel anchor for cost-effective fixations in non-cracked concrete. Thanks to its long thread and the two anchorage depths, the Fischer bolt anchor FBN II is particularly flexible. In addition to pre-positioned and push-through installation, the bolt anchor is suitable for stand-off installation. In the stainless steel design, the bolt anchor is suitable for facade sub-structures, cantilevers, and ladders outside.
Technical Data:
8/20
8
/50
12/20
12/50
12/100
16/50
16/80
Advantages:
The Fischer bolt anchor FBN II is a steel anchor for cost-effective fixations in non-cracked concrete. Thanks to its long thread and the two anchorage depths, the Fischer bolt anchor FBN II is particularly flexible. In addition to pre-positioned and push-through installation, the bolt anchor is suitable for stand-off installation. In the stainless steel design, the bolt anchor is suitable for facade sub-structures, cantilevers, and ladders outside.

TECHNICAL DATA:
—————
8/20
8
/50
12/20
12/50
12/100
16/50
16/80

ADVANTAGES:
———–

Key Features

• ETA-approval: Yes
• Drill diameter d0: 8 mm
• Min. drill hole depth for through fixings h2: 76 mm
• Anchor length l: 80 mm
• Max. usable length hef,max./hef,min. tfix: 20 / 30 mm
• Thread Ø x length: M8 x 49 mm
• Width across nut: 13 mm
• Packaging: Folding box
• ETA-approval: Yes
• Drill diameter d0: 8 [mm]
• Min. drill hole depth for through fixings h2: 61 [mm]
• Anchor length l: 65 [mm]
• Max. usable length hef,max./hef,min. tfix: 5 / 15 [mm]
• Thread Ø x length: M8 x 34 [mm]
• Width across nut: 13 [mm]
• Packaging: Folding box
• ETA-approval: Yes
• Drill diameter d0: 12 [mm]
• Min. drill hole depth for through fixings h2: 105 [mm]
• Anchor length l: 114 [mm]
