FLUKE 1577 INSULATION MULTIMETER

The

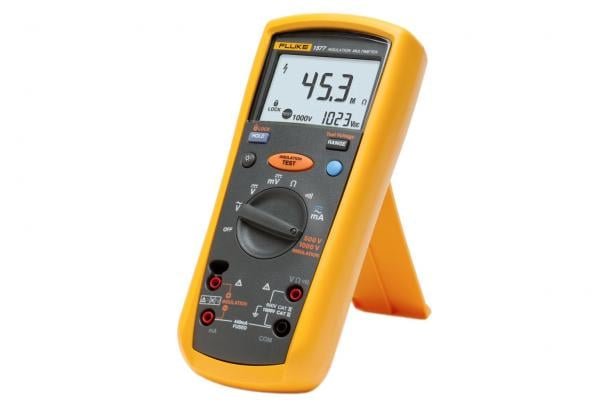

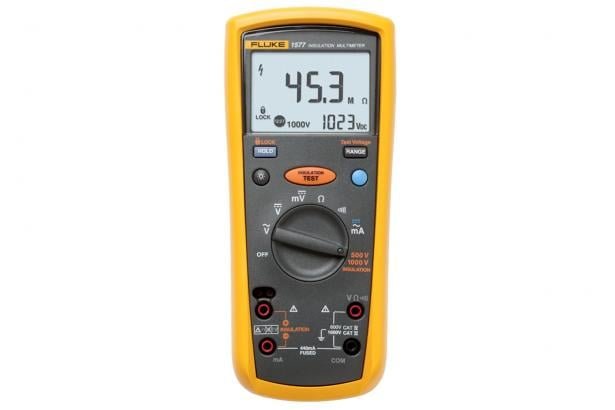

Fluke 1577 Insulation Multimeter
offers the functionality of a digital insulation tester and a true RMS digital multimeter in a single, compact, handheld device. Designed for maximum versatility, it is suitable for both troubleshooting and preventive maintenance applications. Whether working on motors, generators, cables, or switchgear, the Fluke 1577 provides reliable and accurate measurements to ensure equipment integrity and performance.
Key Features:
Technical Specifications:
Included Accessories:
The
Fluke 1577 Insulation Multimeter
offers the functionality of a digital insulation tester and a true RMS digital multimeter in a single, compact, handheld device. Designed for maximum versatility, it is suitable for both troubleshooting and preventive maintenance applications. Whether working on motors, generators, cables, or switchgear, the Fluke 1577 provides reliable and accurate measurements to ensure equipment integrity and performance.

KEY FEATURES:
————-

TECHNICAL SPECIFICATIONS:
————————-

INCLUDED ACCESSORIES:
———————

• Insulation Testing:Performs insulation resistance tests with selectable voltages of500 Vand1000 V, measuring resistance from0.1 M? to 600 M?.
• Live Circuit Detection:Prevents insulation tests if voltage greater than30 Vis detected, enhancing user safety.
• Auto-Discharge:Automatically discharges capacitive voltage after testing to ensure user protection.
• Large Backlit Display:Features a large display with backlight for easy reading in various lighting conditions.
• Auto Power Off:Conserves battery life by automatically powering off when not in use.
• Safety Ratings:RatedCAT III 1000 VandCAT IV 600 V, ensuring high safety standards for electrical testing.

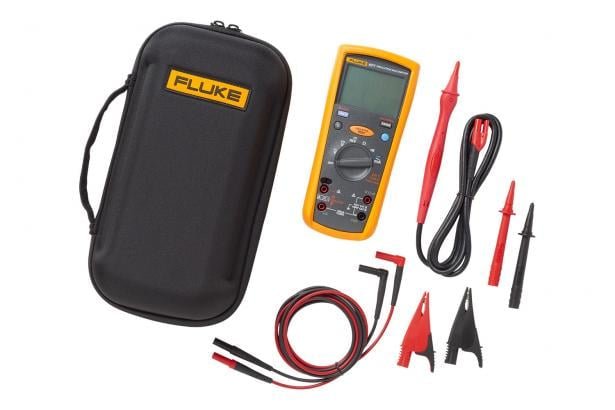

• Remote probe
• Test leads
• Alligator clips
• Hard carrying case
• User documentation

Specification | Details
———————–
Insulation Test Voltages | 500 V, 1000 V
Insulation Resistance Range | 0.1 M? to 600 M?
AC/DC Voltage Measurement | Up to 1000 V
DC Millivolts Measurement | Yes
AC/DC Milliamps Measurement | Yes
Resistance Measurement | 0.1 ? to 50 M?
Continuity Test | Yes
Display | Large backlit LCD
Power Supply | Four AA alkaline batteries
Dimensions | 203 mm x 100 mm x 50 mm
Weight | 624 g
