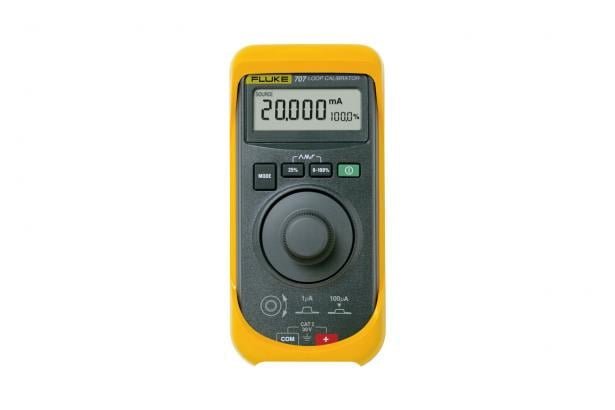

FLUKE 707 LOOP CALIBRATOR
The Fluke 707 Loop Calibrator is engineered to provide a fast and efficient solution for professionals involved in the calibration and maintenance of current loops. Its innovative “Quick Click” rotary knob simplifies the process of setting and adjusting current values, enabling precise control with minimal effort. The calibrator offers mA sourcing, simulation, and measurement capabilities, ensuring versatility in various applications. The simultaneous display of mA and percentage of span allows for immediate assessment of readings, enhancing workflow efficiency. With selectable step and ramp outputs, users can perform smooth outputs for valve slewing and loop functional tests. The built-in 24V loop supply, including a 250-ohm HART® resistor, facilitates the powering and reading of transmitters without the need for additional equipment. Designed for durability and ease of use, the Fluke 707 is a reliable tool for field technicians.
Description
FEATURES
——–
• The Fluke 707 Loop Calibrator is engineered to provide a fast and efficient solution for professionals involved in the calibration and maintenance of current loops. Its innovative “Quick Click” rotary knob simplifies the process of setting and adjusting current values, enabling precise control with minimal effort. The calibrator offers mA sourcing, simulation, and measurement capabilities, ensuring versatility in various applications. The simultaneous display of mA and percentage of span allows for immediate assessment of readings, enhancing workflow efficiency. With selectable step and ramp outputs, users can perform smooth outputs for valve slewing and loop functional tests. The built-in 24V loop supply, including a 250-ohm HART® resistor, facilitates the powering and reading of transmitters without the need for additional equipment. Designed for durability and ease of use, the Fluke 707 is a reliable tool for field technicians.
• fluke.com
• Specifications:
• Specification
• Details
• Current Measurement Range
• 0 to 24 mA
• Current Measurement Accuracy
• 0.015% of reading + 2 counts
• Current Sourcing Range
• 0 to 20 mA or 4 to 20 mA
• Current Sourcing Accuracy
• 0.015% of reading + 2 counts
• Voltage Measurement Range
• 0 to 28 V DC
• Voltage Measurement Accuracy
• 0.015% of reading + 2 counts
• Loop Supply Voltage
• 24 V DC
• Display Resolution
• 0.001 mA for current, 1 mV for voltage
• Power Supply
• One 9V battery
• Dimensions
• 152 x 70 x 41 mm
• Weight
• 0.61 kg
• Features:
• One-handed user interface with “Quick Click” rotary knob
• mA sourcing, simulation, and measurement
• 0.015% accuracy and 0.001 mA resolution
• Simultaneous mA and percentage of span display
• Selectable step or ramp outputs
• 24V loop supply with built-in 250-ohm HART® resistor
• Measures DC voltage up to 28V
• Removable battery door for quick battery replacement
• Compact case with protective holster
