FLUKE 709 PRECISION MA LOOP CALIBRATOR

The

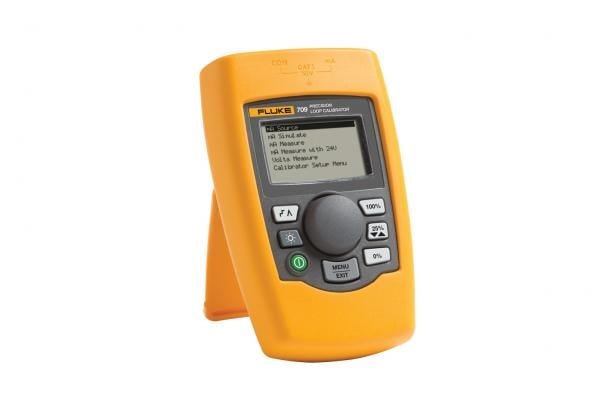

Fluke 709 Precision mA Loop Calibrator
is engineered for technicians who need high accuracy and efficiency when calibrating loops. This calibrator reduces setup and test time while offering an intuitive interface with a
quick-set rotary encoder knob
.
Key Features:
Specifications:
The
Fluke 709 Precision mA Loop Calibrator
is engineered for technicians who need high accuracy and efficiency when calibrating loops. This calibrator reduces setup and test time while offering an intuitive interface with a
quick-set rotary encoder knob
.
Key Features:
Specifications:

• High Accuracy:0.01% of reading, ensuring precise measurements.
• User-Friendly Design:Quick-set rotary encoder knob for easy operation.
• Integrated 250? Resistor:Supports HART communication.
• Multiple Measurement Functions:Source, simulate, and measure mA signals.
• Voltage and Current Readings:Measures up to24mAand30V DC.
• Compact and Durable:Comes with a rugged, protective holster.
• Battery Efficient:Operates for up to 40 hours with alkaline batteries.
• Loop Power:Provides 24V DC loop power.
• Valve Test Function:Simulates defined mA values for testing.
• Backlit Display:Ensures clear visibility in all lighting conditions.

Specification | Details
———————–
Functions | mA source, mA simulate, mA read, mA read/loop power, volts read
Measurement Range | 0 to 24 mA (current), 0 to 30 V DC (voltage)
Resolution | 1 µA (mA ranges), 1 mV (voltage ranges)
Accuracy | 0.01% ± 2 counts (@23° ± 5°C)
Operating Temperature | -10°C to 55°C (14°F to 131°F)
Humidity | 10% to 95% non-condensing
Display | 128 x 64 pixels LCD with backlight
Battery Type | 6 AAA alkaline batteries
Battery Life | Up to 40 hours (continuous use)
Loop Compliance Voltage | 24V DC @ 20mA
Over-Voltage Protection | 240V AC
Overload Current Protection | 28mA DC
EMC Compliance | EN61326 Annex A (Portable Instruments)
Dimensions | 15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)
Weight | 0.3 kg (9.5 oz)

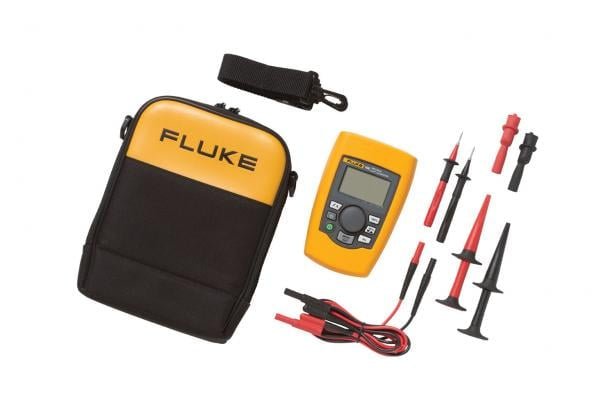

Included Accessories | NIST traceable calibration certificate, batteries, test leads, manual
