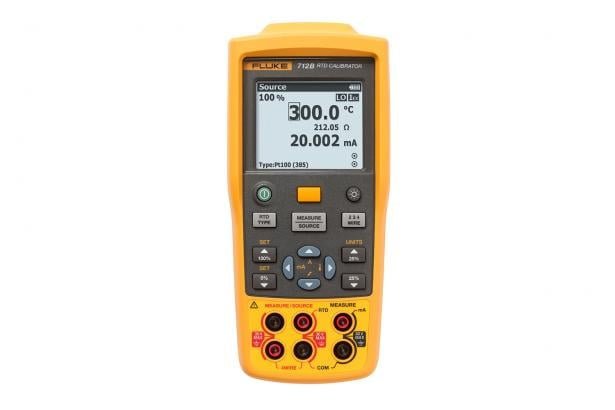

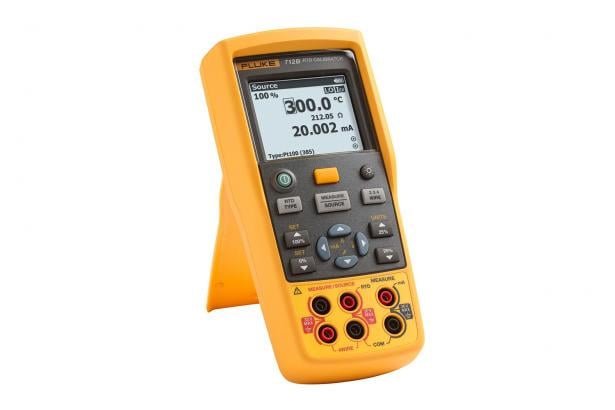

FLUKE 712B RTD TEMPERATURE CALIBRATOR

The
Fluke 712B RTD Temperature Calibrator
is a
portable, battery-operated
device designed for
calibration engineers and technicians
who require a
precise and easy-to-use
instrument. This device supports
measuring and simulating a wide range of RTD types and resistances
, along with an
isolated channel for measuring 4-20mA signals
while simultaneously sourcing a temperature signal.
It also provides
configurable source settings
at
0% and 100% for quick 25% linearity tests
, in addition to
linear ramp and automatic 25% step ramp functions
. The
backlit display and dual inputs
allow for easy interpretation of results, and the
device retains test settings
even when powered off, enabling
quick test resumption upon restart
.
Key Features:
Technical Specifications:
The
Fluke 712B RTD Temperature Calibrator
is a
portable, battery-operated
device designed for
calibration engineers and technicians
who require a
precise and easy-to-use
instrument. This device supports
measuring and simulating a wide range of RTD types and resistances
, along with an
isolated channel for measuring 4-20mA signals
while simultaneously sourcing a temperature signal.
It also provides
configurable source settings
at
0% and 100% for quick 25% linearity tests
, in addition to
linear ramp and automatic 25% step ramp functions
. The
backlit display and dual inputs
allow for easy interpretation of results, and the
device retains test settings
even when powered off, enabling
quick test resumption upon restart
.

KEY FEATURES:
————-

TECHNICAL SPECIFICATIONS:
————————-

Key Features

• High Accuracy:Supportsmeasuring and simulating 13 different RTD typesand resistances.
• Simultaneous Measurement:Canmeasure 4-20mA signals while sourcing a temperature signal.
• User-Friendly Design:Offersconfigurable source settings (0% and 100%) for fast 25% linearity testing.
• Automated Functions:Featureslinear ramp and automatic 25% step ramp functionsbased on the selected settings.
• Convenient Operation:Dual inputs and backlit displayensure easy reading and interpretation in different environments.
• Built-in Memory:Retains thelast test settingsforquick resumption.

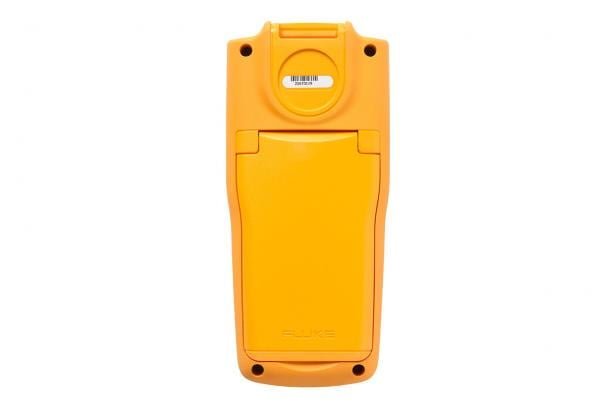

• Hands-Free Use:Comes with amagnetic hanging toolfor convenient operation.

Specifications

Specification | Details
———————–
RTD Measurement/Simulation | Supports13 RTD typesand resistance measurement
Current Measurement Range | 0 to 24mA
Resistance Measurement Range | 0 to 4000?
Accuracy | 0.01% ± 2 counts (@23°C ± 5°C)
Operating Temperature Range | -10°C to 55°C (14°F to 131°F)
Humidity Range | 10% to 95% non-condensing
Display | Backlit LCD for easy reading
Battery Type | 4 AA alkaline batteries
Battery Life | Approximately 50 hours of continuous use
Dimensions | 188.5 mm × 84 mm × 52.5 mm (7.4 in × 3.3 in × 2.1 in)
Weight | 0.515 kg (1.1 lbs)
Included Accessories | Test leads, alligator clips, user manual, soft carrying case, magnetic hanging tool
