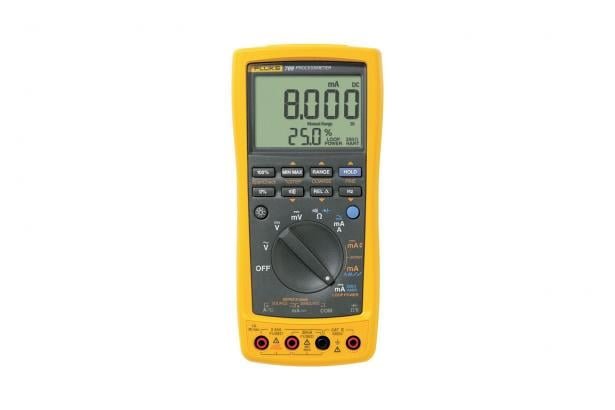

FLUKE 789 PROCESSMETER™

The Fluke 789 ProcessMeter™ enhances the capabilities of process technicians by integrating a full-featured loop calibrator with a safety-rated digital multimeter. This combination reduces the need to carry multiple instruments, thereby increasing efficiency in the field. The device features a large, dual display with enhanced backlighting for clear visibility in various lighting conditions. Its built-in 24V loop power supply eliminates the need for an external power source when testing transmitters offline. Additionally, the selectable 250-ohm HART® resistor facilitates communication with HART devices without requiring an external resistor.
Specifications:
Features:
The Fluke 789 ProcessMeter™ enhances the capabilities of process technicians by integrating a full-featured loop calibrator with a safety-rated digital multimeter. This combination reduces the need to carry multiple instruments, thereby increasing efficiency in the field. The device features a large, dual display with enhanced backlighting for clear visibility in various lighting conditions. Its built-in 24V loop power supply eliminates the need for an external power source when testing transmitters offline. Additionally, the selectable 250-ohm HART® resistor facilitates communication with HART devices without requiring an external resistor.
Specifications:
Features:

Key Features

• Combines a digital multimeter and mA loop calibrator
• Built-in 24V loop power supply
• Selectable 250-ohm HART® resistor
• Large dual display with enhanced backlighting
• Manual and automatic step and ramping functions
• Externally accessible fuses and batteries for easy replacement

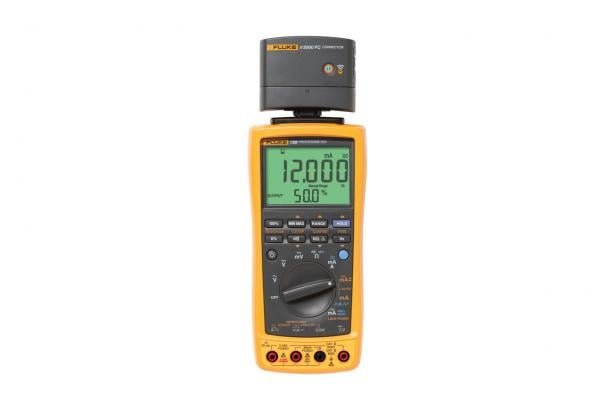

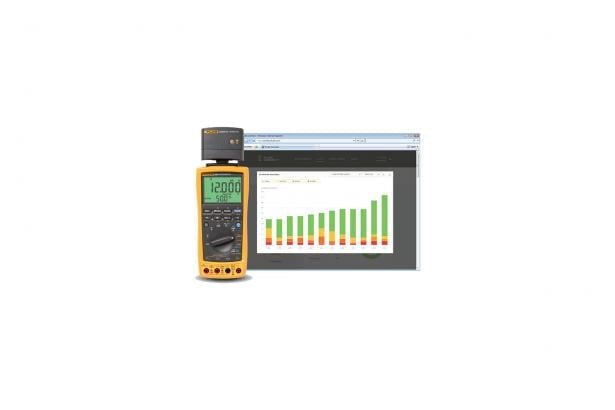

• Compatible with Fluke Connect® for wireless data logging (with optional IR3000FC module)

Specifications

Specification | Details
———————–
Voltage Measurement | 0 to 1000 V AC/DC
Current Measurement | 0 to 1 A AC/DC
Resistance Measurement | 0 to 40 M?
Frequency Measurement | 0.5 Hz to 20 kHz
Current Sourcing Range | 0 to 20 mA or 4 to 20 mA
Drive Capability | 24V compliance or 1200 ? at 20 mA
Display | Large dual display with two levels of backlighting
Power Supply | Four AA alkaline batteries
Dimensions | 50 x 100 x 203 mm
Weight | 610 g
