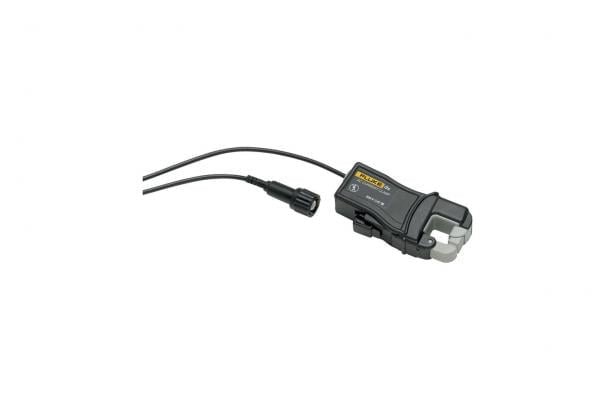

FLUKE I5S AC CURRENT CLAMP

The Fluke i5S AC Current Clamp is designed to extend the capabilities of your Fluke 430 series power quality analyzer or ScopeMeter test tool. Specially configured for precise low-current measurements, it is ideal for assessing secondary current transformers.
Key Features:
Specifications:
The Fluke i5S AC Current Clamp is designed to extend the capabilities of your Fluke 430 series power quality analyzer or ScopeMeter test tool. Specially configured for precise low-current measurements, it is ideal for assessing secondary current transformers.
Key Features:
Specifications:

Key Features

• Low-Level Current Measurement:Accurately measures AC currents up to 5 A, with a continuous range from 10 mA to 6 A.
• Compact Design:Its small dimensions (116 x 43 x 23 mm) make it easy to transport and store.
• Non-Intrusive Testing:Allows for accurate readings without the need to break the circuit.
• Safety Rated:CAT III 600 V, suitable for use on insulated conductors only.

Specifications

Specification | Details
———————–
Nominal Current Range | 5 A
Continuous Current Range | 10 mA to 6 A
Maximum Non-Destructive Current | 70 A
Lowest Measurable Current | 10 mA
Basic Accuracy (48 Hz to 65 Hz) | 10 mA to 1 A: 1% + 5 mA; 1 A to 5 A: 1%
Usable Frequency | 40 Hz to 5 kHz
Output Level | 400 mV/A
Input Load Impedance | > 1 M? in parallel with up to 47 pF
Crest Factor | ? 3, add 0.7% to accuracy
Safety | CAT III 600 V per IEC/EN61010-1, Pollution Degree 2
Maximum Voltage | 600 V AC
Maximum Conductor Diameter | 15 mm
Output Cable Length | 2.5 m
Dimensions | 116 x 43 x 23 mm
Weight | 200 g
