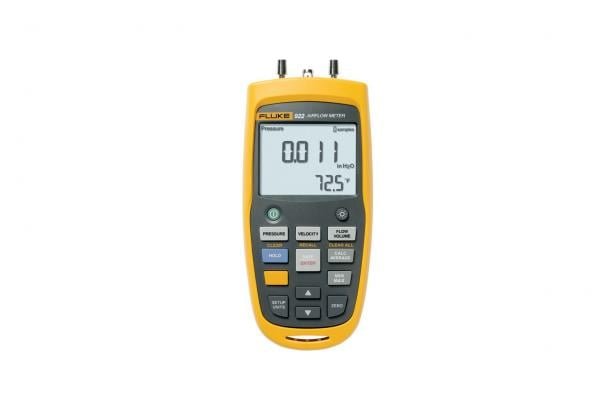

FLUKE 922/KIT AIRFLOW METER/MICROMANOMETER

The
Fluke 922/KIT Airflow Meter/Micromanometer
enhances the capabilities of HVAC technicians by providing a complete set of tools for accurate airflow diagnostics. This kit includes the Fluke 922 micromanometer, a 12-inch pitot tube, and other accessories to facilitate comprehensive airflow analysis. With the ability to measure differential and static pressure, air velocity, and flow readings, the Fluke 922/KIT is designed for performance, ruggedness, and ease of use. The bright backlit display ensures clear viewing in all environments, and user-defined duct shape and size inputs allow for maximum airflow accuracy. Convenient colored hoses assist in proper interpretation of pressure readings, and the device offers 99-point data storage capacity with Min/Max/Average/Hold functions for easy data analysis. Auto power-off saves battery life, making it a reliable tool for field use.
fluke.com
Product Specifications:
The
Fluke 922/KIT Airflow Meter/Micromanometer
enhances the capabilities of HVAC technicians by providing a complete set of tools for accurate airflow diagnostics. This kit includes the Fluke 922 micromanometer, a 12-inch pitot tube, and other accessories to facilitate comprehensive airflow analysis. With the ability to measure differential and static pressure, air velocity, and flow readings, the Fluke 922/KIT is designed for performance, ruggedness, and ease of use. The bright backlit display ensures clear viewing in all environments, and user-defined duct shape and size inputs allow for maximum airflow accuracy. Convenient colored hoses assist in proper interpretation of pressure readings, and the device offers 99-point data storage capacity with Min/Max/Average/Hold functions for easy data analysis. Auto power-off saves battery life, making it a reliable tool for field use.
fluke.com

PRODUCT SPECIFICATIONS:
———————–

Specifications

Feature | Range | Resolution | Accuracy
—————————————
Air Pressure | ±4000 Pascals | 1 Pascal | ±1% + 1 Pascal
| ±16 in H?O | 0.001 in H?O | ±1% + 0.01 in H?O
| ±400 mm H?O | 0.1 mm H?O | ±1% + 0.1 mm H?O
| ±40 mbar | 0.01 mbar | ±1% + 0.01 mbar
| ±0.6 PSI | 0.0001 PSI | ±1% + 0.0001 PSI
Air Velocity | 250 to 16,000 fpm | 1 fpm | ±2.5% of reading at 2000 fpm (10.00 m/s)
| 1 to 80 m/s | 0.001 m/s | ±2.5% of reading at 2000 fpm (10.00 m/s)
Air Flow (Volume) | 0 to 99,999 cfm | 1 cfm | Accuracy is a function of velocity and duct size
| 0 to 99,999 m³/hr | 1 m³/hr | Accuracy is a function of velocity and duct size
| 0 to 99,999 l/s | 1 l/s | Accuracy is a function of velocity and duct size
Temperature | 0 °C to 50 °C (32 °F to 122 °F) | 0.1 °C (0.1 °F) | ±1% + 2 °C (±1% + 4 °F)
General Specifications | | |
Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) | |
Storage Temperature | -40 °C to +60 °C (-40 °F to +140 °F) | |
Relative Humidity | 0% to 90%, non-condensing | |
IP Rating | IP40 | |
Operating Altitude | 2000 m | |
Storage Altitude | 12,000 m | |
EMI, RFI, EMC | Meets requirements for EN61326-1 | |
Vibration | MIL-PREF-28800F, Class 3 | |
Max Pressure at Each Port | 10 PSI | |
Data Storage Capacity | 99 readings | |
Power | Four AA batteries | |
Battery Life | 280 hours without backlight, 60 hours with backlight | |
Dimensions | 187 mm x 91 mm x 49 mm | |
Weight | 0.6 kg (1.3 lb)
