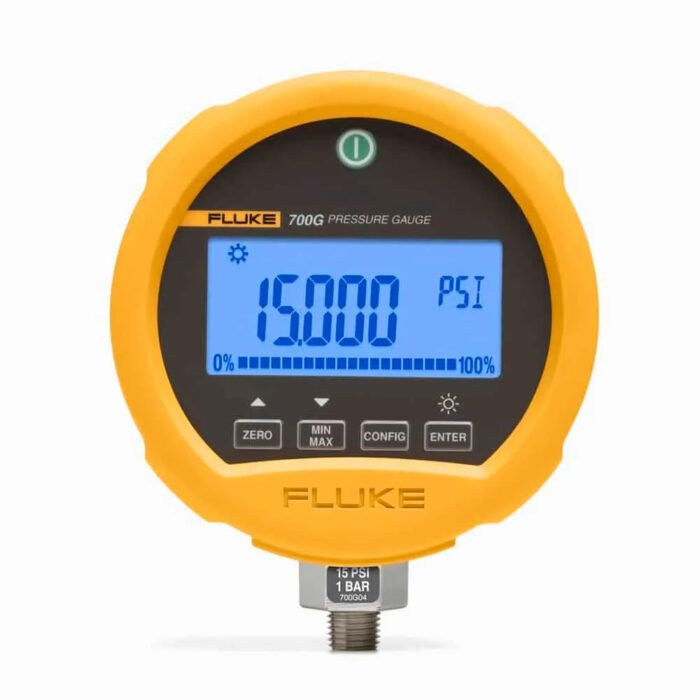

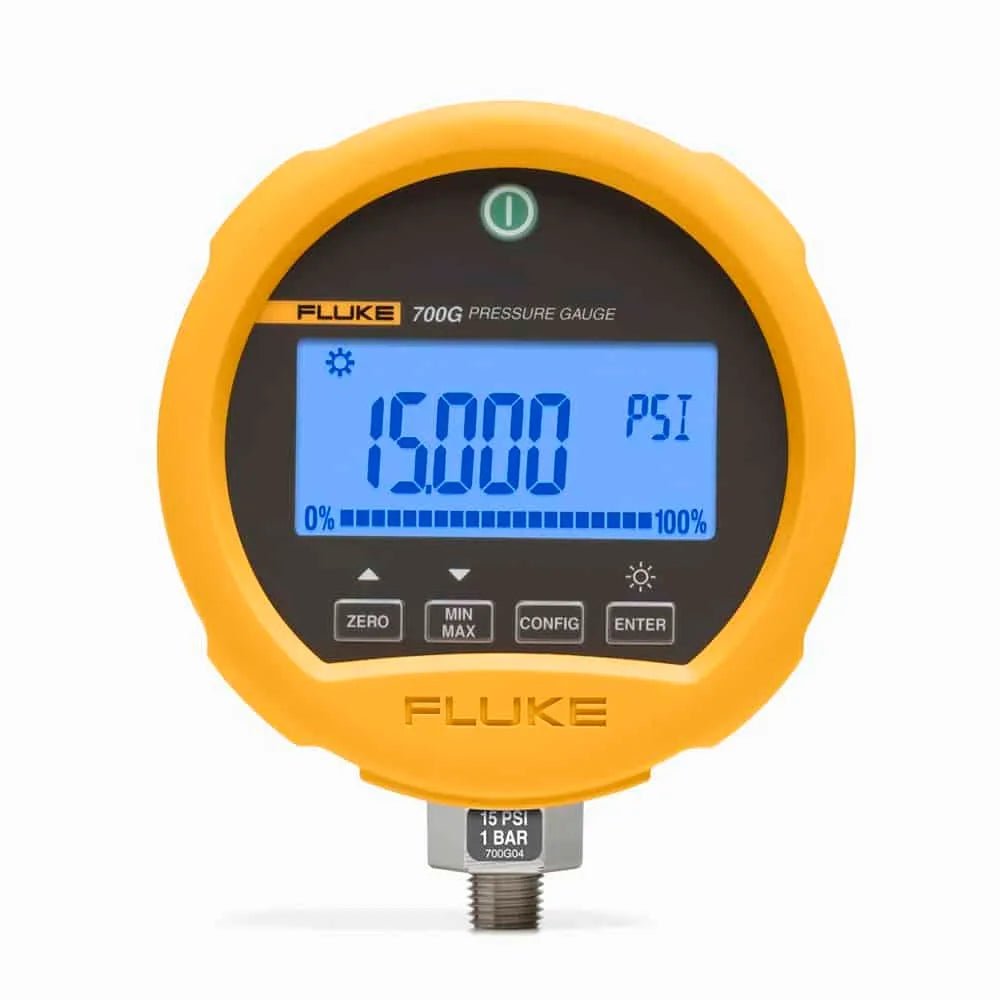

FLUKE PRESSURE TEST GAUGE -0.97 – 2 BAR | 700RG05

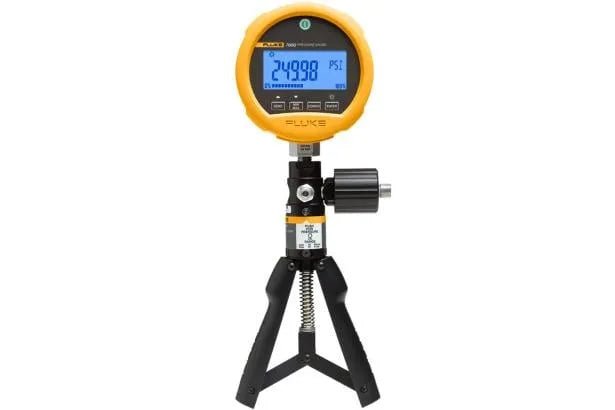

The Fluke 700RG05 Pressure Test Gauge is engineered for fast, accurate pressure measurements ranging from -14 to 30 PSI. It features a robust design suitable for field and laboratory use, with a resolution of 0.001 PSI and accuracy up to ±0.05% FS. Its digital display includes a 5½-digit screen with a bar graph for easy readings. The gauge operates on AA batteries, offering long battery life, and is compatible with Fluke pneumatic and hydraulic pump kits for a complete pressure testing solution.
Key Features:
Specifications:
The Fluke 700RG05 Pressure Test Gauge is engineered for fast, accurate pressure measurements ranging from -14 to 30 PSI. It features a robust design suitable for field and laboratory use, with a resolution of 0.001 PSI and accuracy up to ±0.05% FS. Its digital display includes a 5½-digit screen with a bar graph for easy readings. The gauge operates on AA batteries, offering long battery life, and is compatible with Fluke pneumatic and hydraulic pump kits for a complete pressure testing solution.

KEY FEATURES:
————-

SPECIFICATIONS:
—————

Key Features

• Pressure Range:-14 to 30 PSI (-0.97 to 2 Bar)
• High Accuracy:±0.05% FS for positive pressure; ±0.1% FS for vacuum
• Digital Display:5½-digit with 20-segment bar graph
• Durable Build:Rugged design for industrial environments
• Long Battery Life:Up to 2000 hours with slow sample rate

Specifications

Specification | Details
———————–
Range | -14 to 30 PSI (-0.97 to 2 Bar)
Resolution | 0.001 PSI (0.0001 Bar)
Accuracy | ±0.05% FS (positive), ±0.1% FS (vacuum)
Burst Pressure | 120 PSI (8 Bar)
Pressure Connection | ¼” NPT male
Display | 5½ digits, 0.65-inch height
Power Supply | 3 x AA alkaline batteries
Battery Life | Up to 2000 hours
Dimensions | 5 x 4.5 x 1.5 in (12.7 x 11.4 x 3.7 cm)
Weight | 0.5 kg
