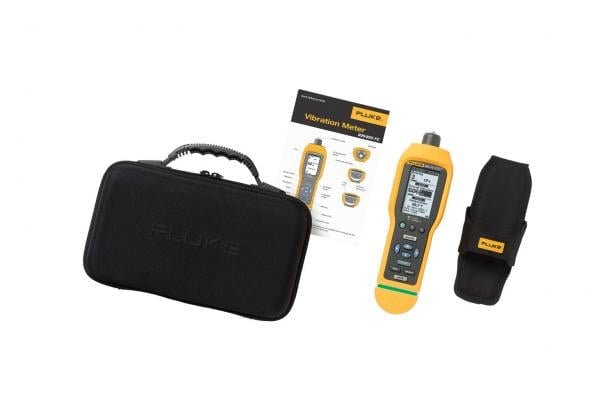

FLUKE 805 FC VIBRATION METER WITH 805ES EXTERNAL VIBRATION SENSOR

The Fluke 805 FC Vibration Meter, paired with the 805ES External Vibration Sensor, offers a versatile solution for mechanical troubleshooting teams requiring reliable and repeatable vibration measurements. The 805 FC provides severity-scaled readings of overall vibration and bearing condition, while the 805ES sensor enables measurements in hard-to-reach or hazardous areas, enhancing the device’s flexibility.
Key Features:
805ES External Vibration Sensor Features:
Specifications:
The Fluke 805 FC Vibration Meter, paired with the 805ES External Vibration Sensor, offers a versatile solution for mechanical troubleshooting teams requiring reliable and repeatable vibration measurements. The 805 FC provides severity-scaled readings of overall vibration and bearing condition, while the 805ES sensor enables measurements in hard-to-reach or hazardous areas, enhancing the device’s flexibility.
Key Features:
805ES External Vibration Sensor Features:
Specifications:

Key Features

• Innovative Sensor Design:Minimizes measurement variations due to device angle or contact pressure.
• Consistent Data Quality:Provides reliable readings across low and high-frequency ranges.
• Four-Level Severity Scale:Assesses the urgency of issues related to overall vibration and bearing condition.
• Fluke Connect™ Compatibility:Enables workflow management and monitoring via the mobile app.
• Crest Factor+ Technology:Offers reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz.
• Temperature Measurement:Includes a Spot IR Sensor to enhance diagnostic capabilities.
• Data Export and Trending:Allows data export via USB and trending in Microsoft® Excel using pre-built templates.
• On-Board Memory:Holds up to 3,500 measurements for easy data management.
• External Accelerometer Support:Facilitates measurements in hard-to-reach locations.
• Built-In Flashlight:Illuminates measurement spots in dark areas.
• Large High-Resolution Display:Ensures easy navigation and viewing of data.
• Low-Profile 90-Degree Sensor Body:Allows access to tight spots.
• Rugged, Coiled Cable:Minimizes dangling while stretching to more than 7 feet when needed.
• Powerful “U” Shaped Magnet Mount:Creates a firm connection to flat or curved measurement surfaces.
• Removable Sensor Magnet:Allows for direct attachment to a sensor mounting pad or threaded hole on equipment.

Specifications

Specification | Details
———————–
Low-Frequency Range | 10 Hz to 1,000 Hz
High-Frequency Range | 4,000 Hz to 20,000 Hz
Vibration Measurement | Overall vibration, bearing condition, temperature
Accuracy | ±5% of readings or ±0.02 g
Severity Scale | Four levels (Good, Satisfactory, Unsatisfactory, Unacceptable)
Temperature Measurement | Spot IR sensor (built-in)
Connectivity | Fluke Connect™ enabled, USB data export
Memory Capacity | Stores up to 3,500 measurements
Battery Type | Two AA batteries
Battery Life | Up to 250 measurements
External Accelerometer Support | Yes, via BNC connector
Display | High-resolution, backlit screen
Operating Temperature | -10°C to 50°C (14°F to 122°F)
Storage Temperature | -20°C to 60°C (-4°F to 140°F)
Safety Rating | CAT II 600 V
Weight | 400 g (0.88 lbs)
Dimensions | 22.86 x 6.35 x 5.72 cm (9 x 2.5 x 2.25 inches)
805ES Sensor Weight | 0.363 kg (0.80 lbs)
805ES Sensor Dimensions | 19.75 x 15.88 x 6.35 cm (7.75 x 6.25 x 2.5 inches)
