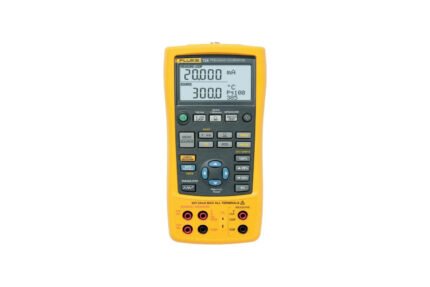

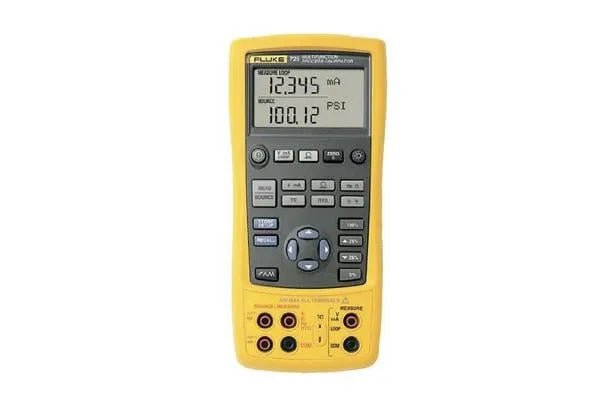

FLUKE MULTIFUNCTION PROCESS CALIBRATOR 725

The Fluke 725 is a versatile multifunction process calibrator designed to meet the needs of process professionals in the field. It features a rugged and reliable design with a simple, user-friendly interface without complex menus. The calibrator allows users to measure and source DC current (mA), DC voltage (V), temperature using RTDs and thermocouples, frequency, resistance, and pressure when using optional pressure modules from the Fluke 700P series.

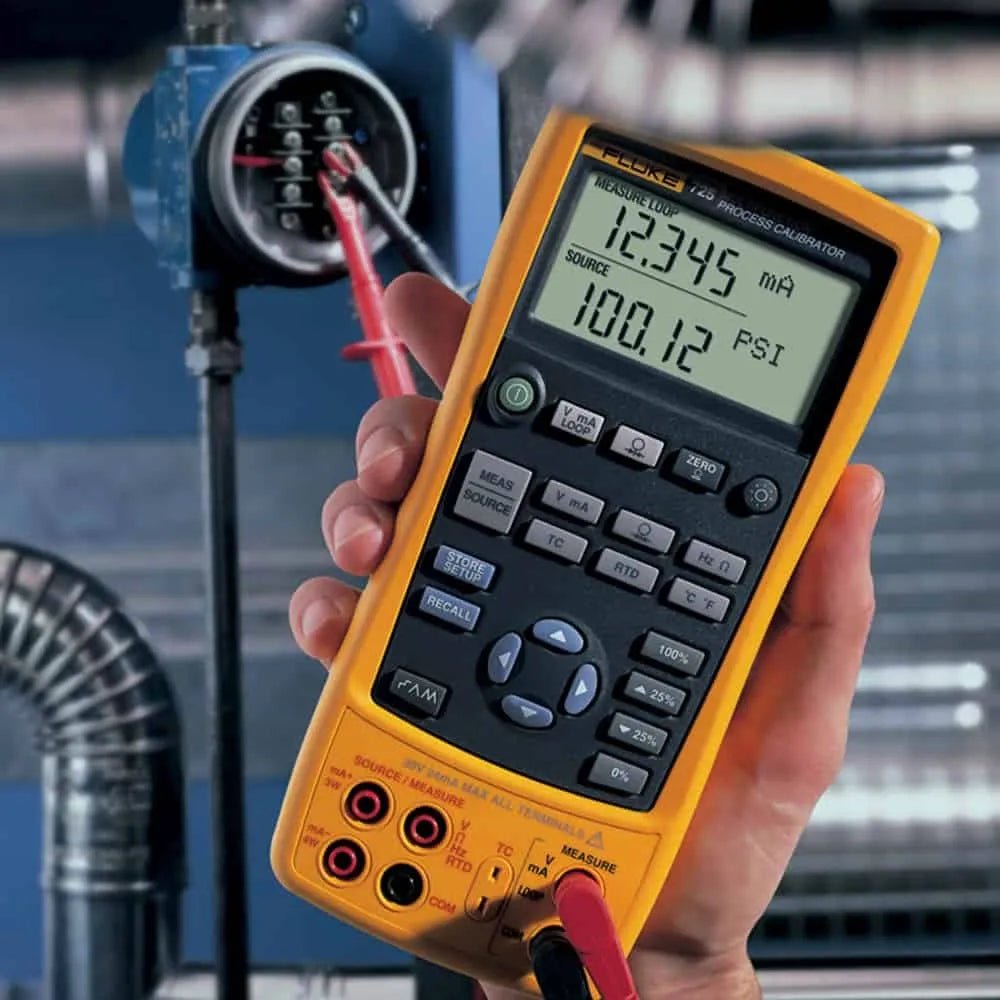

The dual display allows for simultaneous viewing of input and output signals, simplifying the calibration process. Additionally, the Fluke 725 supports step and ramp functions for quick linearity tests and provides a 24V loop power supply to power transmitters during testing. Frequently used test settings can also be stored for later retrieval, increasing field efficiency.
Specifications Table:
Features:
The Fluke 725 is a versatile multifunction process calibrator designed to meet the needs of process professionals in the field. It features a rugged and reliable design with a simple, user-friendly interface without complex menus. The calibrator allows users to measure and source DC current (mA), DC voltage (V), temperature using RTDs and thermocouples, frequency, resistance, and pressure when using optional pressure modules from the Fluke 700P series.
The dual display allows for simultaneous viewing of input and output signals, simplifying the calibration process. Additionally, the Fluke 725 supports step and ramp functions for quick linearity tests and provides a 24V loop power supply to power transmitters during testing. Frequently used test settings can also be stored for later retrieval, increasing field efficiency.

SPECIFICATIONS TABLE:
———————

FEATURES:
———

Key Features

• Compact and streamlined design for easy handling and field use.
• Simple, user-friendly interface without complex menus.
• Measures and sources a wide range of process parameters to meet various calibration needs.
• Dual display for simultaneous viewing of input and output signals, simplifying the calibration process.
• Supports optional pressure modules from the Fluke 700P series for pressure calibration.
• Step and ramp functions for quick linearity tests.
• 24V loop power supply to power transmitters during testing.
• Ability to store frequently used test settings for easy retrieval.
• Rugged and reliable design built to withstand harsh field conditions.

Specifications

Specification | Details
———————–
Measurement Functions | Current (mA), Voltage (V), Temperature (RTDs and thermocouples), Frequency, Resistance, and Pressure (with optional pressure modules)
Source Functions | Current (mA), Voltage (V), Temperature (RTDs and thermocouples), Frequency, Resistance, and Pressure (with optional pressure modules)
Pressure Measurement | Compatible with Fluke 700P series pressure modules, with accuracy up to 0.025% of range
Display | Dual display for simultaneous viewing of input and output signals
Power Supply | Four AA batteries
Battery Life | Approximately 25 hours of typical use
Dimensions | 130 × 236 × 61 mm
Weight | 1 kg
Operating Temperature | -10 to 55 °C
Safety Rating | CAT II 30V
