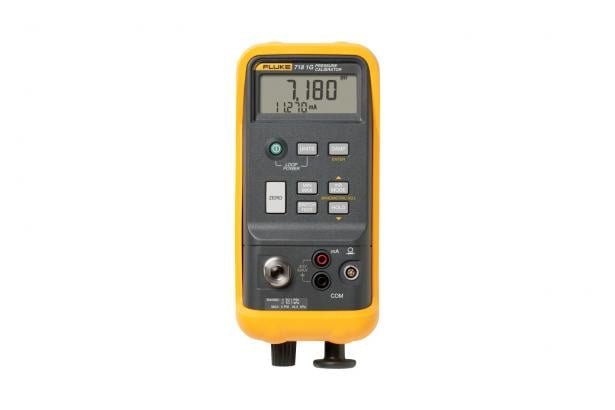

FLUKE 718-100US PRESSURE CALIBRATOR

The
Fluke 718 Pressure Calibrator
is a complete solution for pressure calibration needs, offering a combination of pressure sourcing and measurement capabilities in a portable design. Equipped with an integrated pressure/vacuum hand pump, it allows for efficient pressure generation and adjustment. The calibrator measures pressure with an internal sensor, achieving 0.025% full-scale accuracy, and can also measure current (mA) with 0.015% accuracy and 0.001 mA resolution. Its user-friendly interface includes functions such as zero, min/max, hold, and damp, enhancing usability in various calibration tasks. The device is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes. Additionally, it supports pressure switch testing and offers a wide range of selectable measurement units.
Key Features:
Specifications:
The
Fluke 718 Pressure Calibrator
is a complete solution for pressure calibration needs, offering a combination of pressure sourcing and measurement capabilities in a portable design. Equipped with an integrated pressure/vacuum hand pump, it allows for efficient pressure generation and adjustment. The calibrator measures pressure with an internal sensor, achieving 0.025% full-scale accuracy, and can also measure current (mA) with 0.015% accuracy and 0.001 mA resolution. Its user-friendly interface includes functions such as zero, min/max, hold, and damp, enhancing usability in various calibration tasks. The device is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes. Additionally, it supports pressure switch testing and offers a wide range of selectable measurement units.
Key Features:
Specifications:

Key Features

• Integrated pressure/vacuum hand pump with fine adjustment vernier and bleed valve.
• Measures pressure up to 300 psi (20 bar) with 0.025% full-scale accuracy.
• Measures current (mA) with 0.015% accuracy and 0.001 mA resolution.
• Provides 24V loop power supply.
• Compact and lightweight design for easy portability.
• EMI tolerant, dust and splash resistant.
• Removable battery door for quick battery changes.
• Compatible with non-corrosive gases and liquids.
• Pressure switch test function captures set, reset, and deadband values.
• Selectable engineering units: psi, inH?O, cmH?O, bar, mbar, kPa, inHg, mmHg, kg/cm².

Specifications

Specification | Details
———————–
Pressure Measurement Range | -12 to 300 psi (-850 mbar to 20 bar)
Pressure Accuracy | 0.025% of full scale
Current Measurement Range | 0 to 24 mA
Current Accuracy | 0.015% of reading ± 0.001 mA
Pressure Connection | 1/8 NPT female
Display | Backlit LCD
Power Supply | Two 9V alkaline batteries
Battery Life | Approximately 4 to 20 hours, depending on functions used
Dimensions | 201 mm x 98 mm x 52 mm
Weight | 1 kg
Operating Temperature | -10°C to 55°C
Humidity | 10% to 95% non-condensing
Included Accessories | Test leads, alligator clips, protective yellow holster, user manual
