FLUKE 714B THERMOCOUPLE CALIBRATOR

The

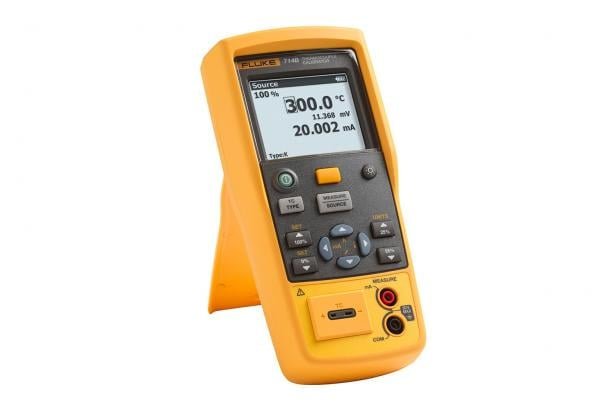

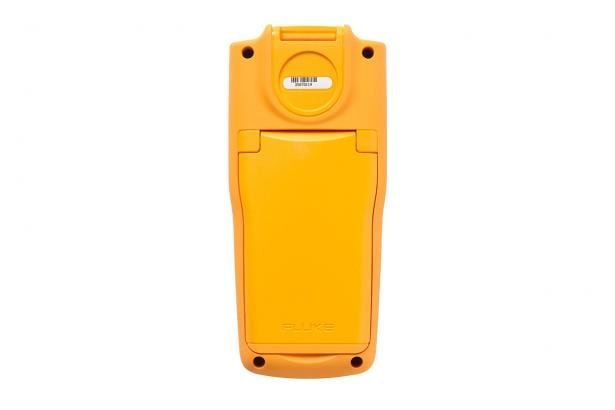

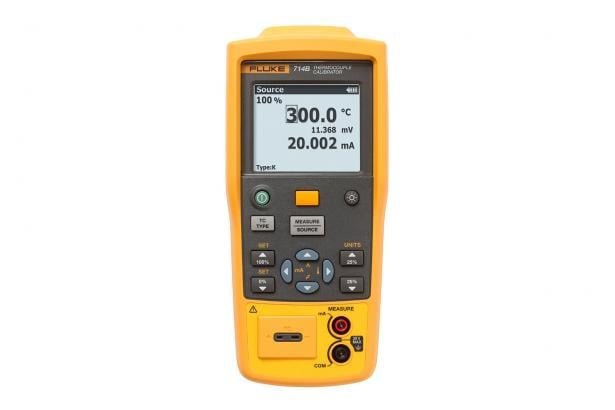

Fluke 714B Thermocouple Calibrator
is a portable, battery-operated instrument designed for temperature calibration professionals who require a precise and user-friendly device. It measures and sources a variety of thermocouple types and millivolt signals, enabling the calibration of linear thermocouple transmitters using the mV source function. Additionally, it can measure 4 to 20 mA signals while sourcing a temperature signal, facilitating comprehensive testing of temperature instrumentation. The calibrator features configurable 0% and 100% source settings for quick 25% linearity checks, as well as linear ramp and 25% step auto ramp functionalities. Its intelligent shutdown feature remembers settings when powered down, allowing for easy test replication upon powering back up.
Key Features:
Specifications:
The
Fluke 714B Thermocouple Calibrator
is a portable, battery-operated instrument designed for temperature calibration professionals who require a precise and user-friendly device. It measures and sources a variety of thermocouple types and millivolt signals, enabling the calibration of linear thermocouple transmitters using the mV source function. Additionally, it can measure 4 to 20 mA signals while sourcing a temperature signal, facilitating comprehensive testing of temperature instrumentation. The calibrator features configurable 0% and 100% source settings for quick 25% linearity checks, as well as linear ramp and 25% step auto ramp functionalities. Its intelligent shutdown feature remembers settings when powered down, allowing for easy test replication upon powering back up.
Key Features:
Specifications:

Key Features

• High Accuracy:Measures and simulates 17 different thermocouple types and millivolt signals.
• Simultaneous Measurement:Measures 4 to 20 mA signals while sourcing a temperature signal.
• User-Friendly Design:Configurable 0% and 100% source settings for quick 25% linearity checks.
• Automated Functions:Provides linear ramp and 25% step auto ramp based on 0% and 100% settings.
• Convenient Operation:Dual inputs and backlit display for easy interpretation of measurements.
• Memory Function:Remembers power-down settings for easy restart of tests.
• Hands-Free Use:Comes with a magnetic hanging tool designed for convenient hands-free operation.

Specifications

Specification | Details
———————–
Thermocouple Measurement/Simulation | Supports 17 thermocouple types and millivolt signals
Current Measurement Range | 0 to 24 mA
Accuracy | ±0.02% of reading + 0.002 mV
Operating Temperature | -10°C to 55°C (14°F to 131°F)
Humidity | 10% to 95% non-condensing
Display | Backlit LCD for easy reading
Battery Type | 3 AA alkaline batteries
Battery Life | Approximately 50 hours of continuous use
Dimensions | 17.0 cm x 8.3 cm x 4.3 cm (6.7 in x 3.3 in x 1.7 in)
Weight | 0.35 kg (12.3 oz)
Included Accessories | Test leads, alligator clips, user manual, soft carrying case, magnetic hanging tool
