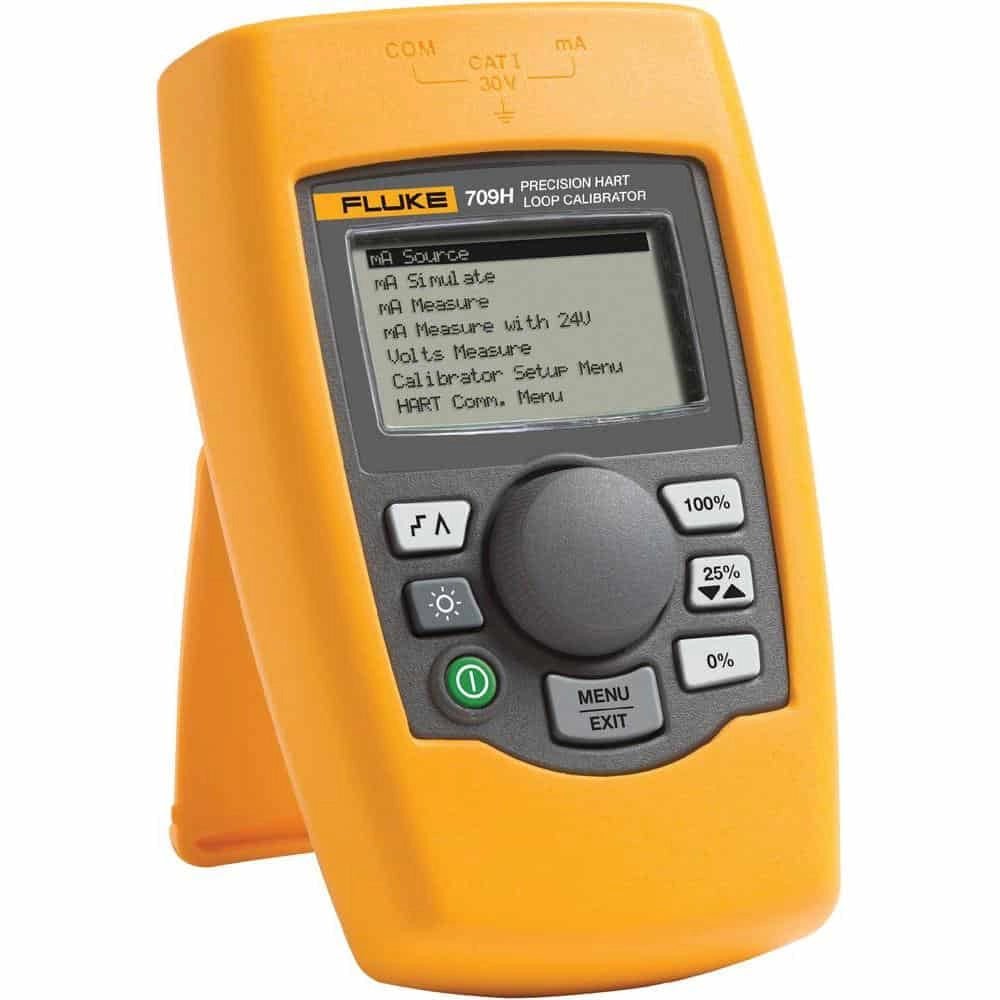

FLUKE 709H PRECISION MA LOOP CALIBRATOR WITH HART COMMUNICATIONS

The
Fluke 709H Precision mA Loop Calibrator
is engineered for technicians requiring high accuracy and efficiency in loop calibration. This calibrator integrates HART communication, supporting a select set of universal and common practice commands, making it both an affordable and powerful tool for HART communication and troubleshooting. The user-friendly interface, featuring a Quick-Set rotary encoder knob, reduces setup and test time. Its compact, rugged design includes a protective holster, and the large backlit display ensures readability in various work environments.
Key Features:
Specifications:
The
Fluke 709H Precision mA Loop Calibrator
is engineered for technicians requiring high accuracy and efficiency in loop calibration. This calibrator integrates HART communication, supporting a select set of universal and common practice commands, making it both an affordable and powerful tool for HART communication and troubleshooting. The user-friendly interface, featuring a Quick-Set rotary encoder knob, reduces setup and test time. Its compact, rugged design includes a protective holster, and the large backlit display ensures readability in various work environments.
Key Features:
Specifications:

• High Accuracy:0.01% of reading, ensuring precise measurements.
• HART Communication:Supports a select set of HART universal and common practice commands.
• User-Friendly Design:Quick-Set rotary encoder knob for easy operation.
• Integrated 250? Resistor:Built-in resistor for HART communication.
• Multiple Measurement Functions:Source, simulate, and measure mA signals; measure voltage up to 30V DC.
• Data Logging:Selectable capture intervals from 1 to 60 seconds with a capacity of 9,800 records or 99 sessions.
• Compact and Durable:Comes with a rugged, protective holster.
• Battery Efficient:Operates for up to 40 hours with six AAA batteries.
• Loop Power:Provides 24V DC loop power.
• Backlit Display:Ensures clear visibility in all lighting conditions.

Specification | Details
———————–
Functions | mA source, mA simulate, mA read, mA read/loop power, volts read
Measurement Range | 0 to 24 mA (current), 0 to 30 V DC (voltage)
Resolution | 1 µA (mA ranges), 1 mV (voltage ranges)
Accuracy | 0.01% ± 2 counts (@23° ± 5°C)
Operating Temperature | -10°C to 55°C (14°F to 131°F)
Humidity | 10% to 95% non-condensing
Display | 128 x 64 pixels LCD with backlight
Battery Type | 6 AAA alkaline batteries
Battery Life | Up to 40 hours (continuous use)
Loop Compliance Voltage | 24V DC @ 20mA
Over-Voltage Protection | 240V AC
Overload Current Protection | 28mA DC
EMC Compliance | EN61326 Annex A (Portable Instruments)
Dimensions | 15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)
Weight | 0.3 kg (9.5 oz)
Included Accessories | NIST traceable calibration certificate, batteries, test leads, manual
