FLUKE 710 MILLIAMP LOOP VALVE TESTER
The

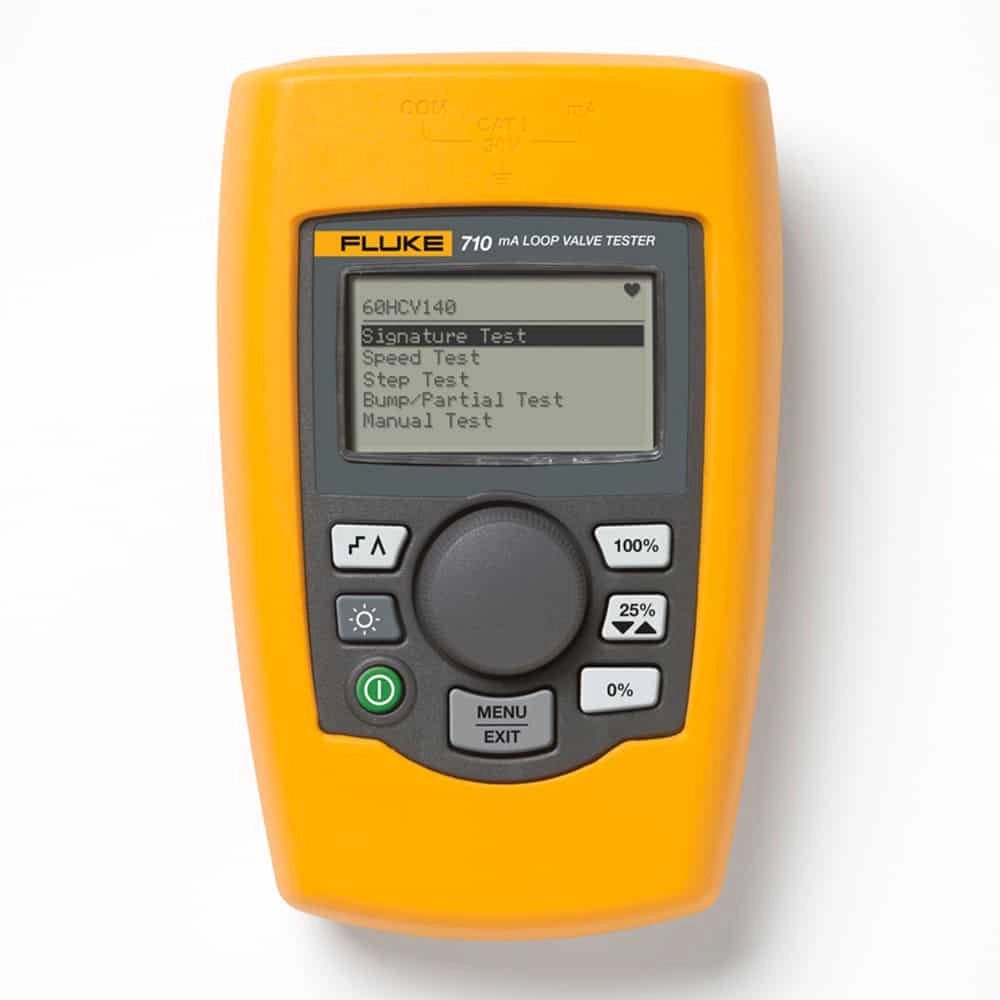

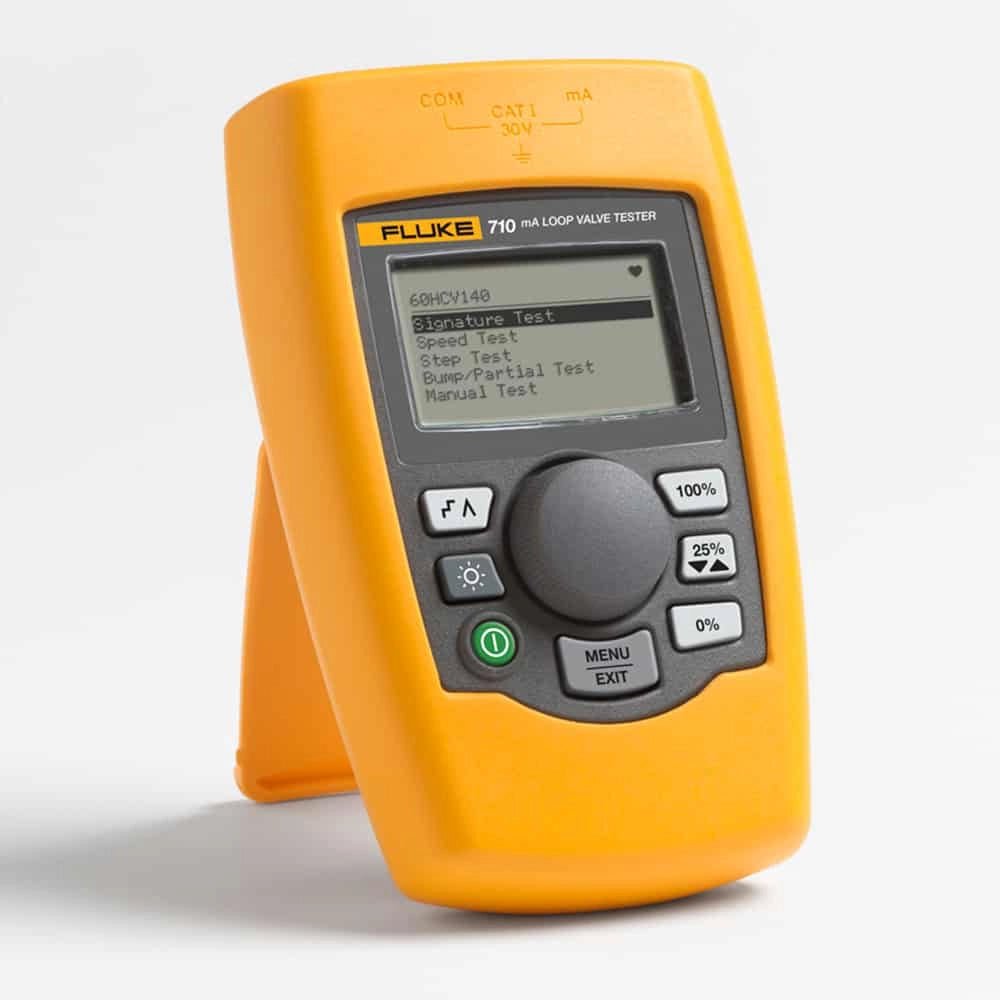

Fluke 710 Milliamp Loop Valve Tester
Description
FEATURES
——–
• The
• Fluke 710 Milliamp Loop Valve Tester
• is engineered for technicians who require precise and efficient testing of HART-enabled smart control valves. This tester features built-in test procedures and an intuitive user interface, allowing users to perform valve tests quickly and easily. The device sources a 4-20 mA signal to move the smart control valve while simultaneously interpreting the valve’s HART feedback to verify its movement to the expected position. The
• ValveTrack™ Software
• enables further analysis and trending by uploading logged valve tests to a PC.
• Key Features:
• High Accuracy:
• 0.01% of reading, ensuring precise measurements.
• HART Communication:
• Supports a range of HART commands for comprehensive valve testing.
• User-Friendly Design:
• Quick-Set rotary encoder knob for fast setup and operation.
• Integrated 250Ω Resistor:
• Built-in resistor for HART communication.
• Multiple Measurement Functions:
• Source, simulate, and measure mA signals; measure voltage up to 30V DC.
• Data Logging:
• Selectable capture intervals from 1 to 60 seconds with a capacity of 9,800 records or 99 sessions.
• Compact and Durable:
• Rugged design with a protective holster.
• Battery Efficient:
• Operates for up to 40 hours with six AAA batteries.
• Loop Power:
• Provides 24V DC loop power.
• Backlit Display:
• Ensures clear visibility in various lighting conditions.
• Specifications:
• Specification
• Details
• Functions
• mA source, mA simulate, mA read, mA read/loop power, volts read
• Measurement Range
• 0 to 24 mA (current), 0 to 30 V DC (voltage)
• Resolution
• 1 µA (mA ranges), 1 mV (voltage ranges)
• Accuracy
• 0.01% ± 2 counts (@23° ± 5°C)
• Operating Temperature
• -10°C to 55°C (14°F to 131°F)
• Humidity
• 10% to 95% non-condensing
• Display
• 128 x 64 pixels LCD with backlight
• Battery Type
• 6 AAA alkaline batteries
• Battery Life
• Up to 40 hours (continuous use)
• Loop Compliance Voltage
• 24V DC @ 20mA
• Over-Voltage Protection
• 240V AC
• Overload Current Protection
• 28mA DC
• EMC Compliance
• EN61326 Annex A (Portable Instruments)
• Dimensions
• 15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)
• Weight
• 0.3 kg (9.5 oz)
• Included Accessories
• Stackable test lead set, extended tooth alligator clip set, TP220 test probes, AC280 SureGrip™ hook clips, Lemo to USB upload/download cable, ValveTrack™ software (free download), soft case, six AAA batteries (installed), product manual CD-ROM, quick reference guide, safety information
