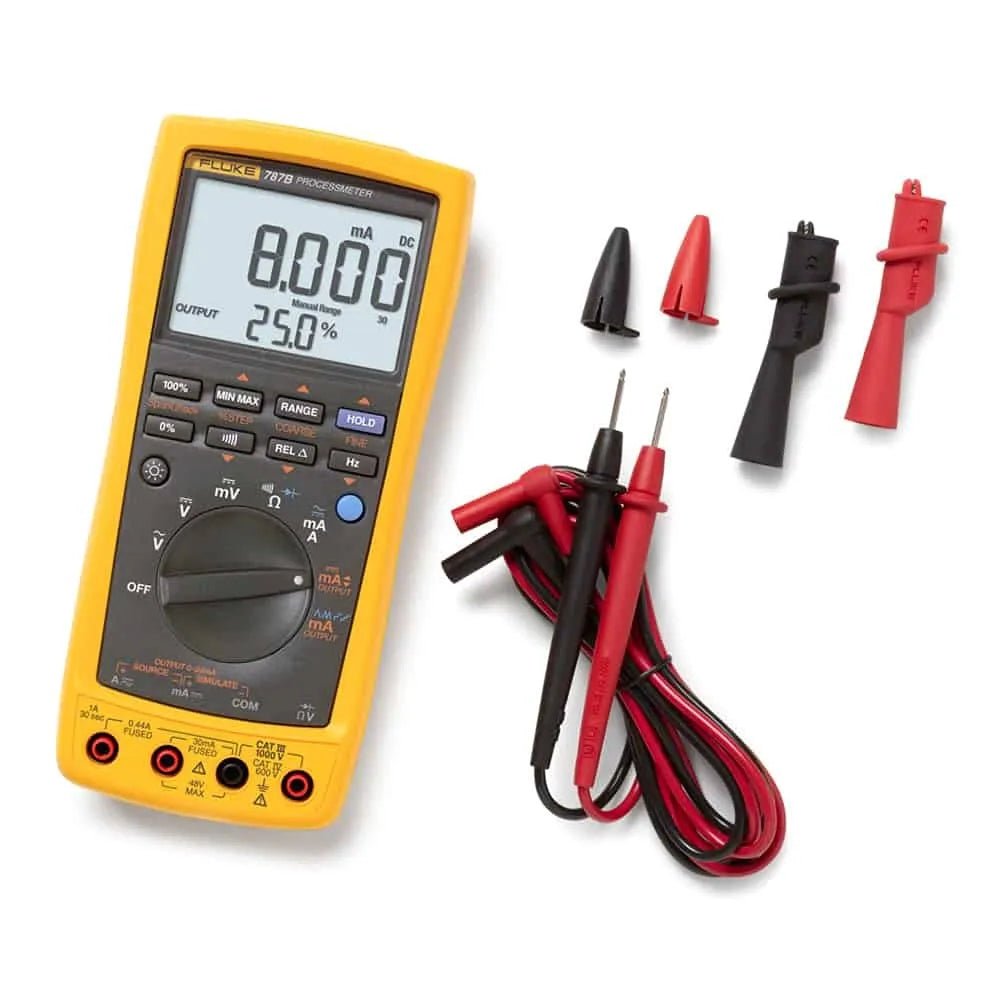

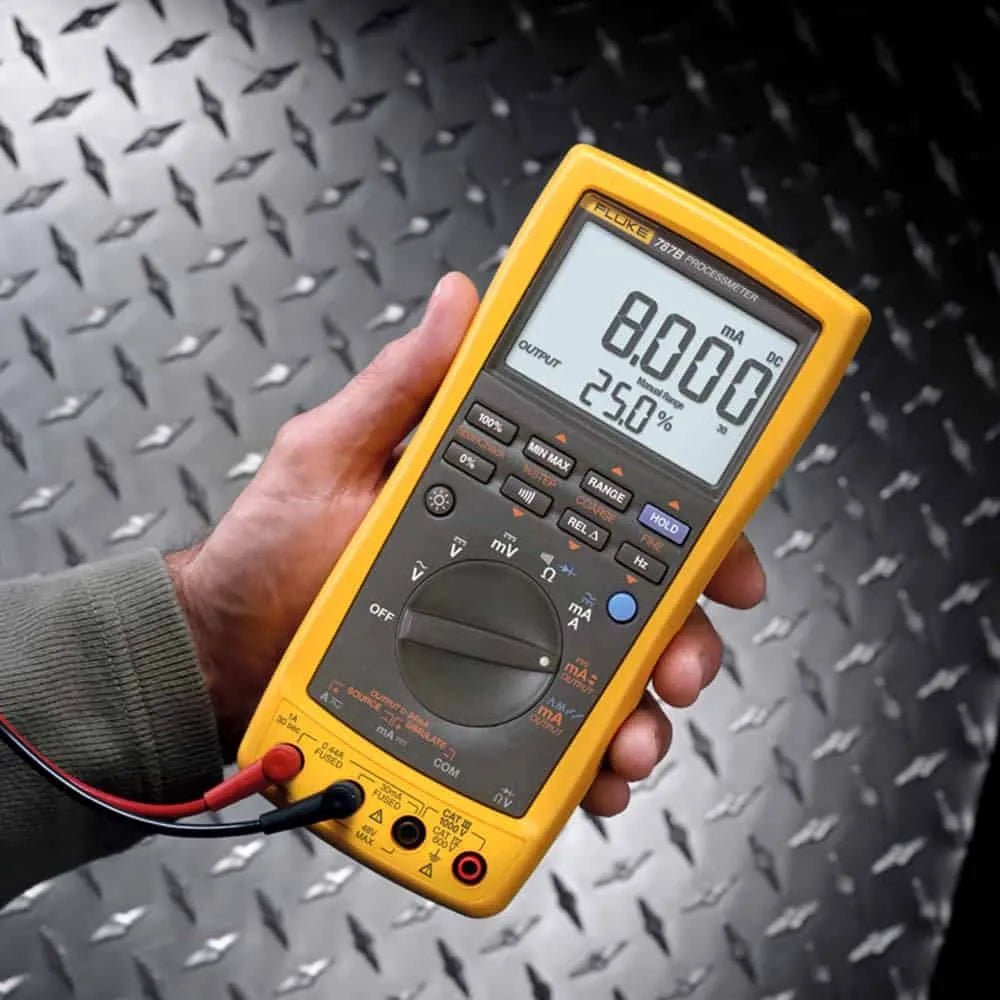

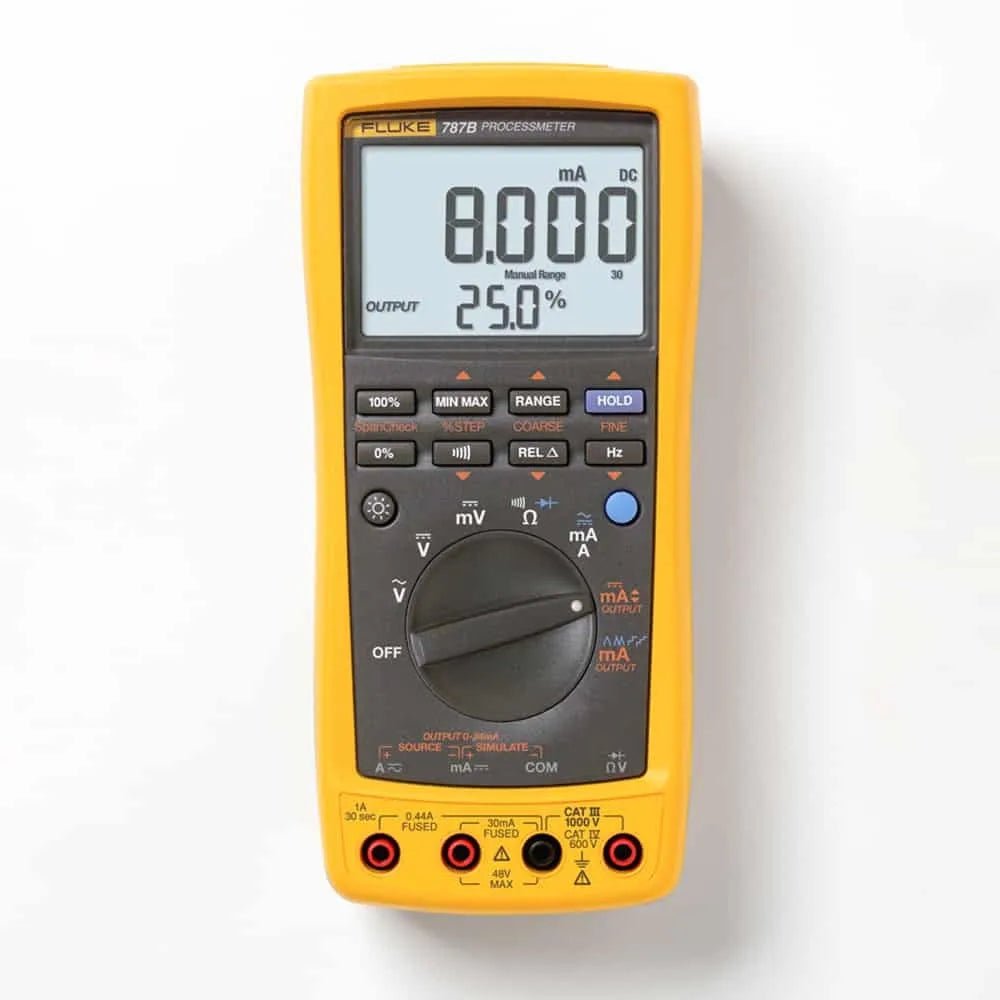

FLUKE 787B PROCESSMETER™
The Fluke 787B ProcessMeter™ enhances your troubleshooting capabilities by integrating the functionalities of a safety-rated digital multimeter and a mA loop calibrator into one compact device. Building upon the trusted measurement features of the Fluke 87V, the 787B allows for precise measurement, sourcing, and simulation of mA currents, making it an ideal tool for diagnosing and calibrating current loop applications. With compatibility for the Fluke Connect® mobile app and desktop software, technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere.*
Description
FEATURES
——–
• The Fluke 787B ProcessMeter™ enhances your troubleshooting capabilities by integrating the functionalities of a safety-rated digital multimeter and a mA loop calibrator into one compact device. Building upon the trusted measurement features of the Fluke 87V, the 787B allows for precise measurement, sourcing, and simulation of mA currents, making it an ideal tool for diagnosing and calibrating current loop applications. With compatibility for the Fluke Connect® mobile app and desktop software, technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere.*
• Specifications:
• Specification
• Details
• DC Voltage Measurement
• Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V
• Accuracy: ±0.1% + 1 digit
• AC Voltage Measurement
• Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V
• Accuracy: ±0.7% + 2 digits (True-RMS)
• DC Current Measurement
• Range: 0 to 1 A
• Accuracy: ±0.2% + 2 digits
• AC Current Measurement
• Range: 0 to 1 A
• Accuracy: ±1% + 2 digits (True-RMS)
• Resistance Measurement
• Ranges: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ
• Accuracy: ±0.2% + 1 digit (up to 4 MΩ); ±1% + 2 digits (40 MΩ)
• Frequency Measurement
• Range: 0 to 20 kHz
• Accuracy: ±0.005% + 1 digit
• Loop Current Source/Simulate
• Range: 0 to 20.000 mA or 4 to 20.000 mA
• Accuracy: ±0.05% + 2 counts
• Display
• 4,000 counts (30,000 counts for DC current)
• Safety Rating
• CAT IV 600 V / CAT III 1000 V
• Power Supply
• Four AA alkaline batteries
• Battery Life
• Approximately 140 hours (measurement mode); 10 hours (sourcing 12 mA)
• Dimensions
• 203 mm x 100 mm x 50 mm
• Weight
• 600 g
• Features:
• Combines a 1000 V, True-RMS digital multimeter with a mA loop calibrator.
• Allows measurement, sourcing, and simulation of mA currents.
• Features manual step (100%, 25%, coarse, fine) plus auto step and auto ramp.
• Equipped with a clear LCD with backlight for easy reading.
• Designed to meet 1000 V IEC 61010 CAT III and 600 V CAT IV safety standards.
• Compatible with Fluke Connect® for wireless data logging (requires IR3000FC module, not included).
