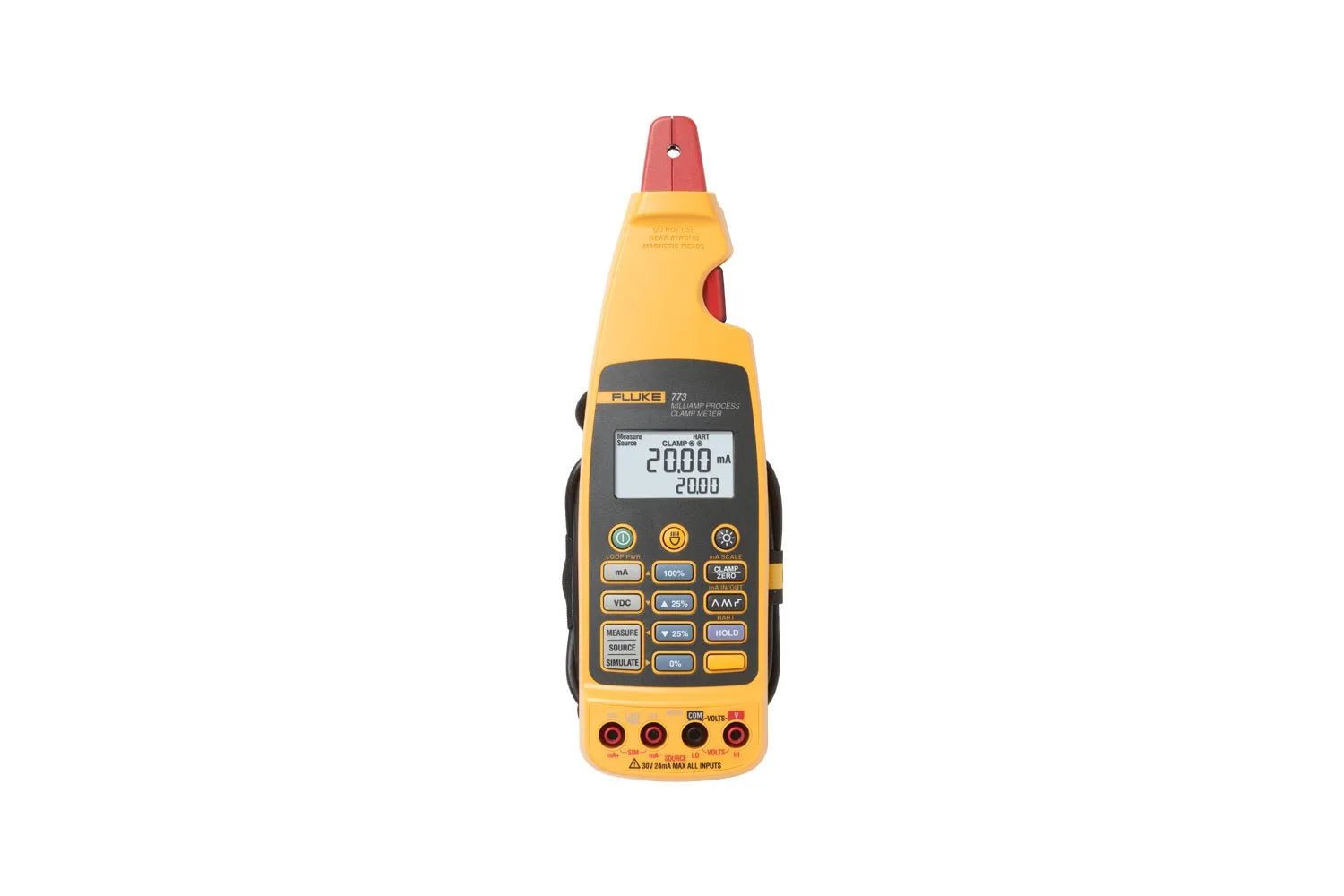

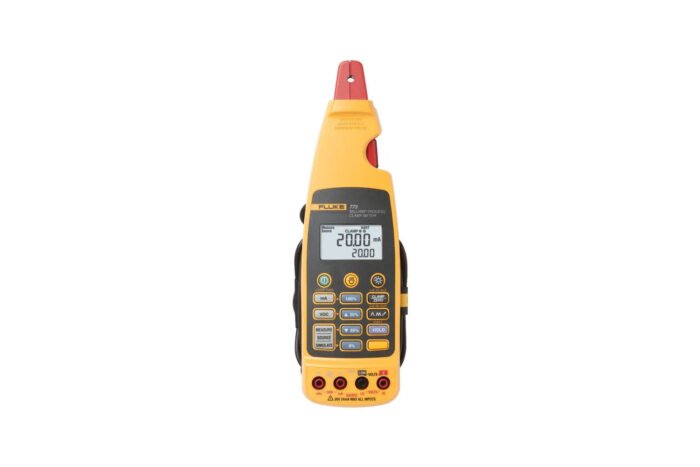

FLUKE MILLIAMP PROCESS CLAMP METER | 773

The Fluke 773 Milliamp Process Clamp Meter enhances efficiency by allowing technicians to measure 4 to 20 mA signals without interrupting the loop, thereby reducing downtime and maintaining process integrity. This advanced tool not only measures mA signals but also sources and simulates them, facilitating comprehensive testing of control system I/O, I/Ps, and other process instruments. Its detachable clamp with extension cable enables access to tight spaces, making it ideal for complex industrial environments. The dual backlit display shows both mA measurements and the percentage of the 4 to 20 mA span, providing clear and concise data for analysis. Additional features include DC voltage measurement and sourcing, scaled mA output, and automatic step and ramp outputs for remote testing. With best-in-class accuracy of 0.2% and a resolution of 0.01 mA, the Fluke 773 is an essential tool for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) in process plants.
Specifications:
Features:
The Fluke 773 Milliamp Process Clamp Meter enhances efficiency by allowing technicians to measure 4 to 20 mA signals without interrupting the loop, thereby reducing downtime and maintaining process integrity. This advanced tool not only measures mA signals but also sources and simulates them, facilitating comprehensive testing of control system I/O, I/Ps, and other process instruments. Its detachable clamp with extension cable enables access to tight spaces, making it ideal for complex industrial environments. The dual backlit display shows both mA measurements and the percentage of the 4 to 20 mA span, providing clear and concise data for analysis. Additional features include DC voltage measurement and sourcing, scaled mA output, and automatic step and ramp outputs for remote testing. With best-in-class accuracy of 0.2% and a resolution of 0.01 mA, the Fluke 773 is an essential tool for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) in process plants.
Specifications:
Features:

• Measure 4 to 20 mA signals without breaking the loop.
• Source and simulate 4 to 20 mA signals for testing control system I/O or I/Ps.
• Measure DC voltage to verify 24 V power supplies or voltage I/O signals.
• Source DC voltage to test input devices that accept a 1 to 5 V or 0 to 10 V signal.
• Dual backlit display shows mA measurement and percent of 4 to 20 mA span.

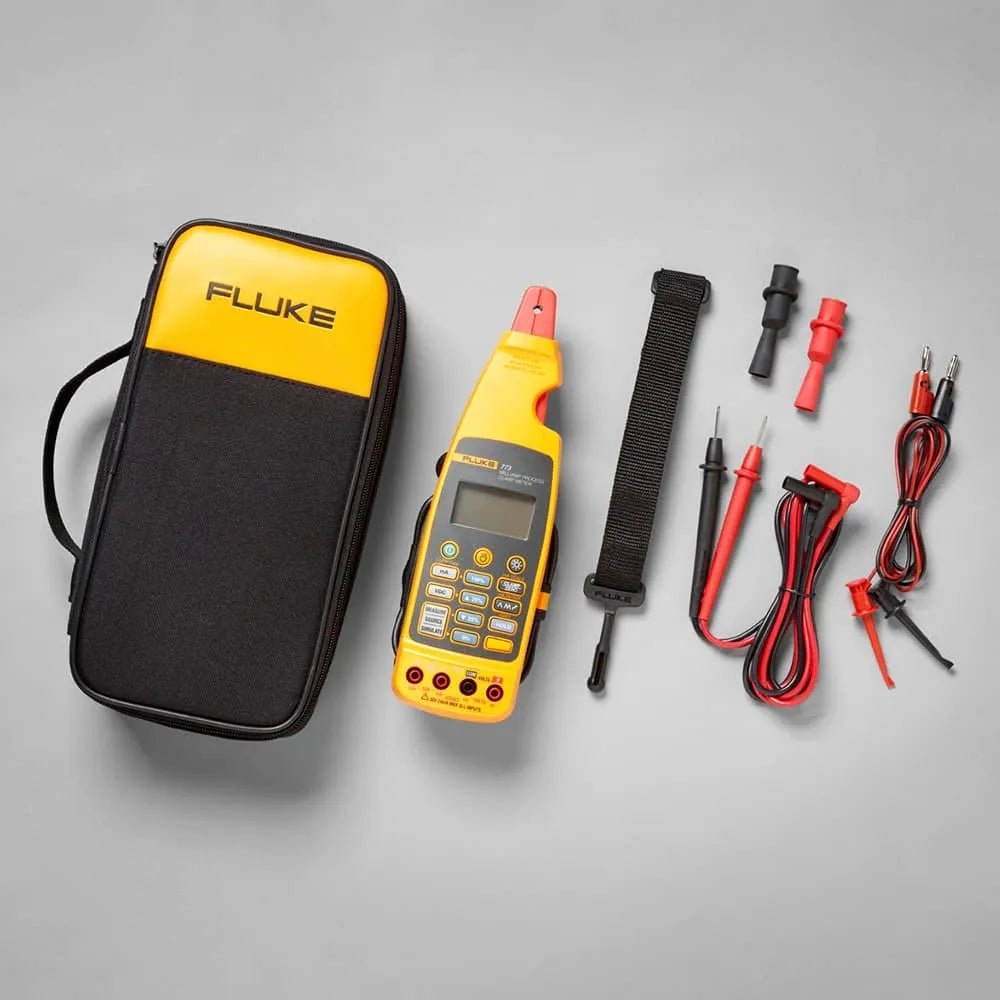

• Detachable clamp with extension cable for measurements in tight spaces.
• Automatic step and ramp output for remote testing.
• Best-in-class 0.2% accuracy and 0.01 mA resolution.
• Power-saving features include auto-off and backlight timeout to extend battery life.

Specification | Details
———————–
mA Measurement (Clamp) | Range: 0 to 20.99 mAAccuracy: ±0.2% + 2 counts
mA Measurement (In-Series with Test Jacks) | Range: 0 to 24.00 mAAccuracy: ±0.2% + 2 counts
mA Source/Simulate | Range: 0 to 24.00 mAAccuracy: ±0.2% + 2 counts
DC Voltage Measurement | Range: 0 to 30.00 VAccuracy: ±0.2% + 2 counts
DC Voltage Source | Range: 0 to 10.00 VAccuracy: ±0.2% + 2 counts
Power Supply | Four AA 1.5 V Alkaline batteries (IEC LR6)
Battery Life | Approximately 12 hours in mA source into 500 ohms
Dimensions | 44 x 70 x 246 mm
Weight | 410 g
Operating Temperature | -10 to 50 ºC
Storage Temperature | -25 to 60 ºC
Operating Humidity | <90% at <30 ºC, <75% at 30 to 55 ºC Safety Rating | CAT III 300 V
