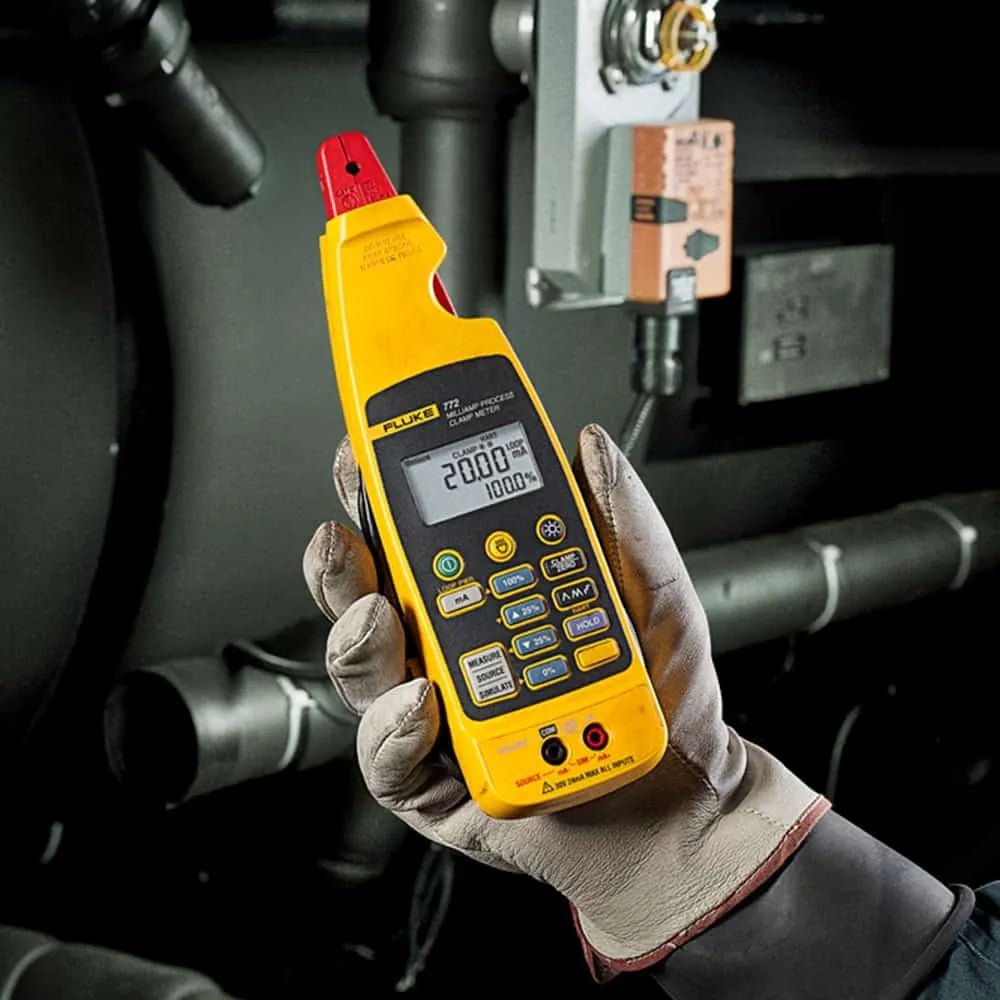

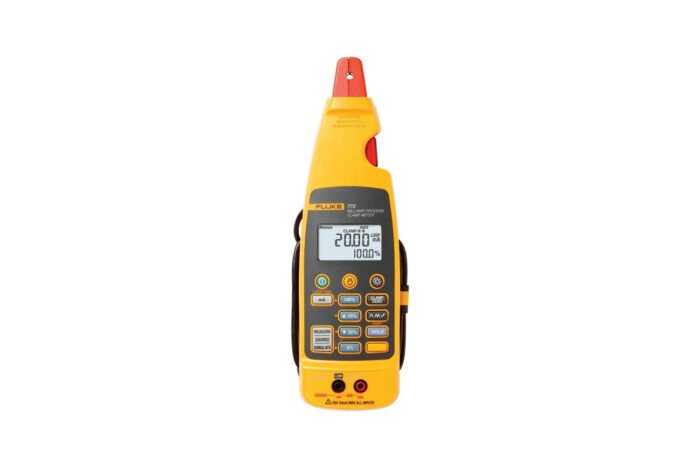

FLUKE MILLIAMP PROCESS CLAMP METER | 772

The Fluke 772 Milliamp Process Clamp Meter is designed to save time and increase productivity by allowing technicians to measure 4 to 20 mA signals without interrupting the loop. Building upon the capabilities of the Fluke 771, the 772 adds functionalities such as sourcing and simulating 4 to 20 mA signals, powering transmitters with a 24V loop supply, and providing automatic step and ramp outputs for remote testing. These features make it an essential tool for troubleshooting transmitters, valves, PLCs, and DCS I/O in process control environments.
Specifications:
Features:
The Fluke 772 Milliamp Process Clamp Meter is designed to save time and increase productivity by allowing technicians to measure 4 to 20 mA signals without interrupting the loop. Building upon the capabilities of the Fluke 771, the 772 adds functionalities such as sourcing and simulating 4 to 20 mA signals, powering transmitters with a 24V loop supply, and providing automatic step and ramp outputs for remote testing. These features make it an essential tool for troubleshooting transmitters, valves, PLCs, and DCS I/O in process control environments.
Specifications:
Features:

• Measure 4 to 20 mA signals without breaking the loop.
• Source and simulate 4 to 20 mA signals for testing control system I/O.
• Power transmitters with the 24V loop power supply.
• Automatic step and ramp output for remote testing.
• Detachable clamp with extension cable for measurements in tight locations.
• Dual backlit display showing mA measurement and percent of 4 to 20 mA span.
• Best-in-class 0.2% accuracy and 0.01 mA resolution.
• Power-saving features include auto-off and backlight timeout to extend battery life.

Specification | Details
———————–
mA Measurement (Clamp) | Range: 0 to 20.99 mAAccuracy: ±0.2% + 2 counts
mA Measurement (In-Series with Test Jacks) | Range: 0 to 24.00 mAAccuracy: ±0.2% + 2 counts
mA Source/Simulate | Range: 0 to 24.00 mAAccuracy: ±0.2% + 2 counts
DC Voltage Measurement | Range: 0 to 30.00 VAccuracy: ±0.2% + 2 counts
DC Voltage Source | Range: 0 to 10.00 VAccuracy: ±0.2% + 2 counts
Power Supply | Four AA 1.5 V Alkaline batteries (IEC LR6)
Battery Life | Approximately 12 hours in mA source into 500 ohms
Dimensions | 44 x 70 x 246 mm
Weight | 410 g
Operating Temperature | -10 to 50 ºC
Storage Temperature | -25 to 60 ºC
Operating Humidity | <90% at <30 ºC, <75% at 30 to 55 ºC Safety Rating | CAT III 300 V
