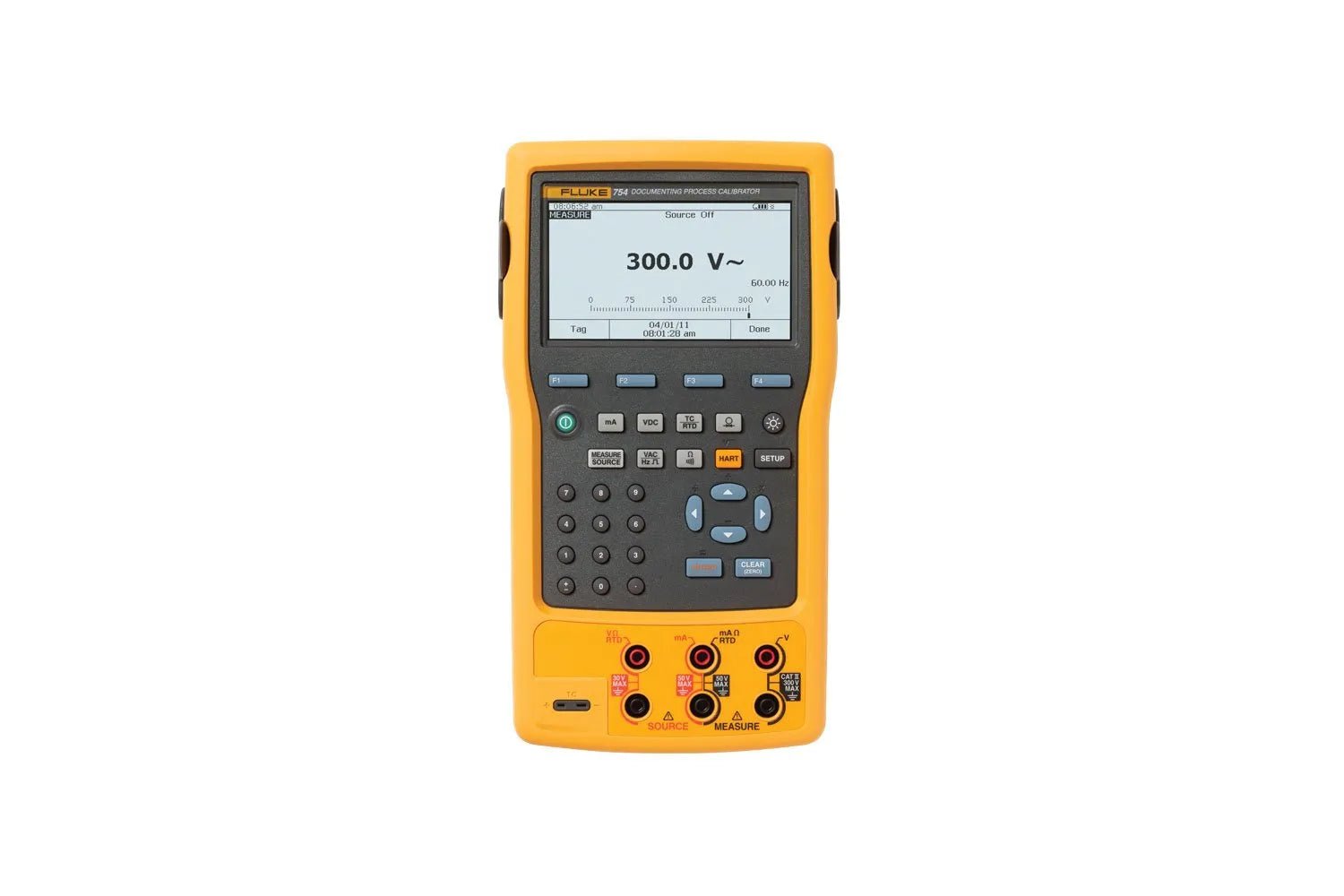

FLUKE DOCUMENTING PROCESS CALIBRATOR WITH HART COMMUNICATION | 754

The Fluke 754 is a robust, handheld documenting process calibrator that combines multiple functions to streamline the calibration, maintenance, and troubleshooting of HART and other instrumentation. It allows technicians to source, simulate, and measure pressure, temperature, and electrical signals with high precision. The integrated HART communication capability enables users to perform nearly all daily tasks without the need for a separate communicator, including reading multiple variables, setting damping times, and performing loop tests. The 754 automates calibration procedures and captures data for documentation, helping organizations meet rigorous standards such as ISO 9000, FDA, EPA, and OSHA regulations. Its bright dual display shows both sourced and measured parameters simultaneously, enhancing efficiency in the field. The calibrator is compatible with Fluke DPCTrack2 and other calibration management software, facilitating seamless data transfer for analysis and archiving.
Specifications:
Features:
The Fluke 754 is a robust, handheld documenting process calibrator that combines multiple functions to streamline the calibration, maintenance, and troubleshooting of HART and other instrumentation. It allows technicians to source, simulate, and measure pressure, temperature, and electrical signals with high precision. The integrated HART communication capability enables users to perform nearly all daily tasks without the need for a separate communicator, including reading multiple variables, setting damping times, and performing loop tests. The 754 automates calibration procedures and captures data for documentation, helping organizations meet rigorous standards such as ISO 9000, FDA, EPA, and OSHA regulations. Its bright dual display shows both sourced and measured parameters simultaneously, enhancing efficiency in the field. The calibrator is compatible with Fluke DPCTrack2 and other calibration management software, facilitating seamless data transfer for analysis and archiving.
Specifications:
Features:

• Automates calibration procedures and captures data for documentation.
• Integrated HART communication for configuring and troubleshooting HART instruments without a separate communicator.
• Simultaneously measures and sources pressure, temperature, and electrical signals.
• Compatible with Fluke DPCTrack2 and other calibration management software for seamless data transfer.
• Bright dual display for simultaneous viewing of sourced and measured parameters.
• Rugged design suitable for field use, with a rechargeable battery providing 8 to 10 hours of operation per charge.

Specification | Details
———————–
Measure and Source Functions | Voltage, current, resistance, frequency, temperature (RTDs and thermocouples), and pressure (with compatible modules)
HART Communication | Integrated HART modem supporting universal, common practice, and device-specific commands
Data Storage | Stores up to a full week of downloaded procedures and calibration results
Display | Bright white dual display for simultaneous viewing of sourced and measured parameters
Power Supply | Rechargeable Li-Ion battery pack providing 8 to 10 hours of usage per charge
Dimensions | 256 x 93 x 66 mm
Weight | 1.4 kg
Operating Temperature | -10 to 50 °C
Safety Rating | CAT II 300 V
