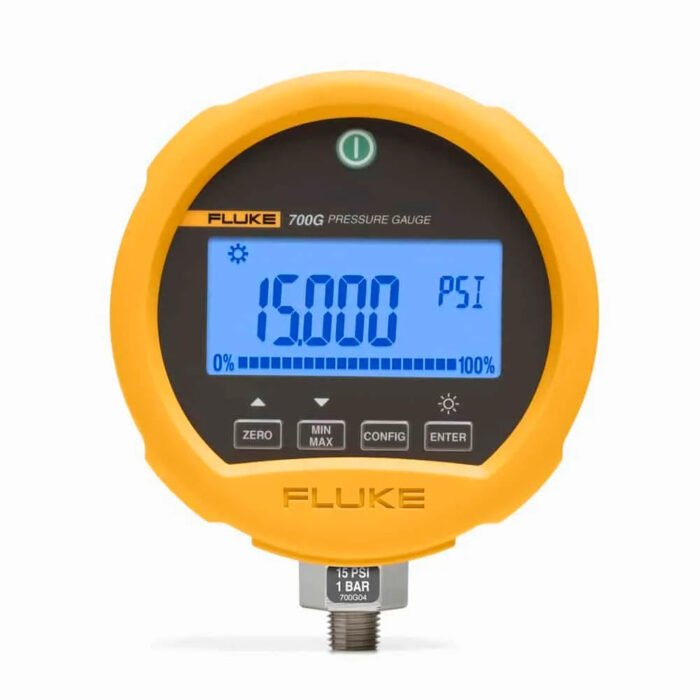

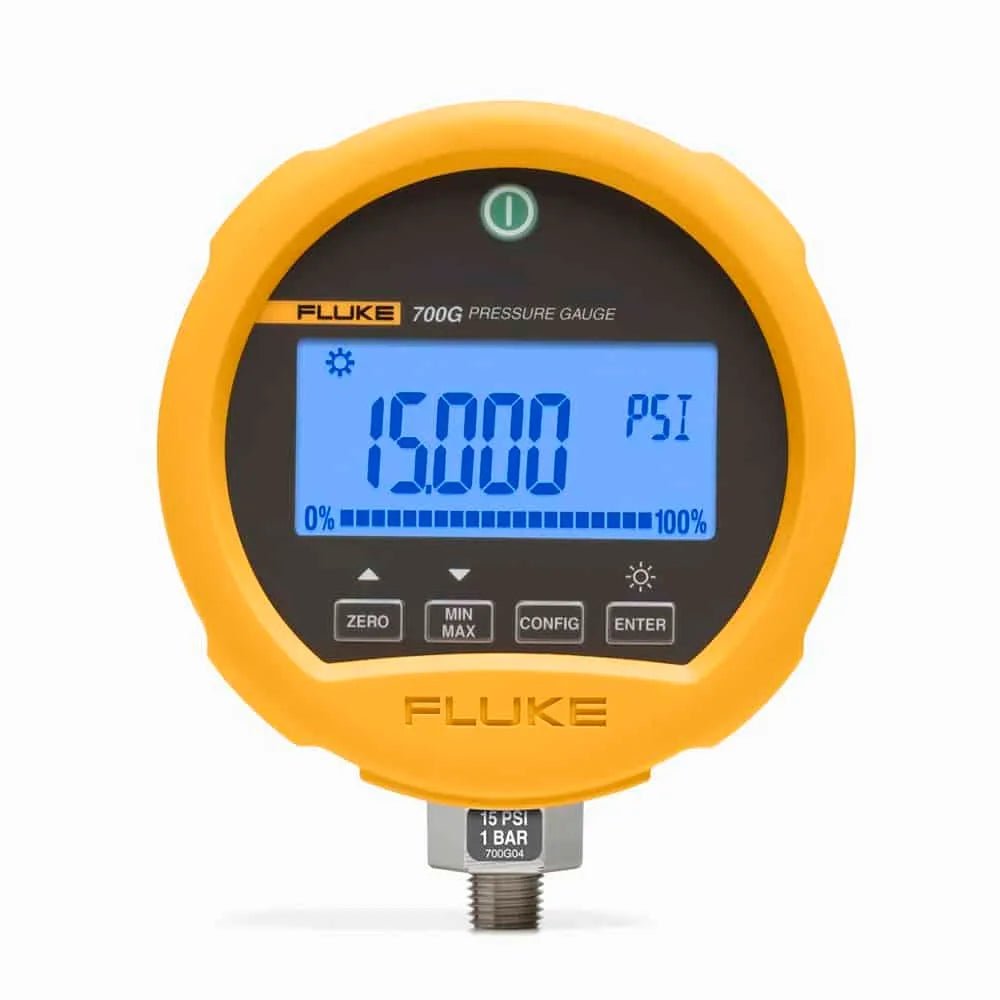

FLUKE PRECISION PRESSURE TEST GAUGE 6.9 BAR | 700GA6

The Fluke 700GA6 Precision Pressure Test Gauge is a high-accuracy digital instrument designed for precise absolute pressure measurements in various applications. With a measurement range from 0 to 100 psia (0 to 6.9 bar absolute) and an accuracy of ±0.05% of full scale, it ensures reliable and accurate readings. The gauge features a rugged design with a protective holster, making it suitable for field use. Its bright backlit display and 5½-digit resolution allow for easy reading in diverse environments. The device operates on three AA alkaline batteries, providing up to 1,500 hours of continuous use without backlight. Additionally, it offers the capability to log up to 8,493 pressure measurements when paired with the 700G/TRACK software, enhancing data recording and analysis.
Specifications Table:
Features:
The Fluke 700GA6 Precision Pressure Test Gauge is a high-accuracy digital instrument designed for precise absolute pressure measurements in various applications. With a measurement range from 0 to 100 psia (0 to 6.9 bar absolute) and an accuracy of ±0.05% of full scale, it ensures reliable and accurate readings. The gauge features a rugged design with a protective holster, making it suitable for field use. Its bright backlit display and 5½-digit resolution allow for easy reading in diverse environments. The device operates on three AA alkaline batteries, providing up to 1,500 hours of continuous use without backlight. Additionally, it offers the capability to log up to 8,493 pressure measurements when paired with the 700G/TRACK software, enhancing data recording and analysis.

SPECIFICATIONS TABLE:
———————

FEATURES:
———

• High-accuracy digital absolute pressure measurement
• Rugged design with protective holster for field use
• Bright backlit display for clear readings
• Capability to log up to 8,493 pressure measurements with optional software

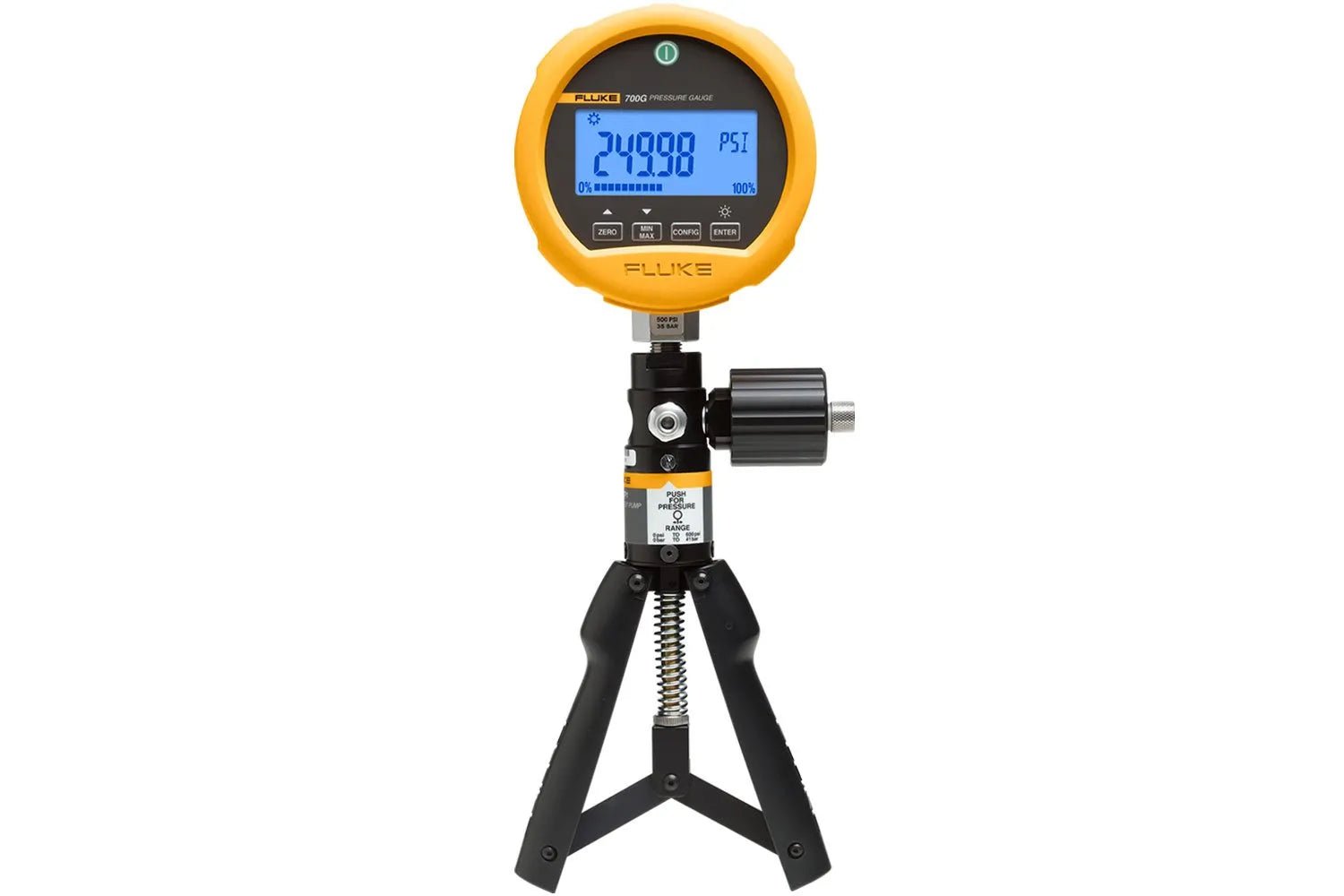

• Compatible with pneumatic or hydraulic hand pumps for comprehensive pressure testing

Specification | Details
———————–
Measurement Range | 0 to 100 psia (0 to 6.9 bar absolute)
Resolution | 0.01 psi (0.0001 bar)
Accuracy | ±0.05% of full scale
Burst Pressure | 400 psi (27 bar)
Dimensions | 12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)
Pressure Connection | ¼ inch NPT Male
Display | 5½ digits, 16.53 mm (0.65 in) high, with 20-segment bar graph
Power Supply | Three AA alkaline batteries
Battery Life | 1,500 hours without backlight; 2,000 hours at slow sample rate
Weight | 0.56 kg (1.22 lb) with holster
