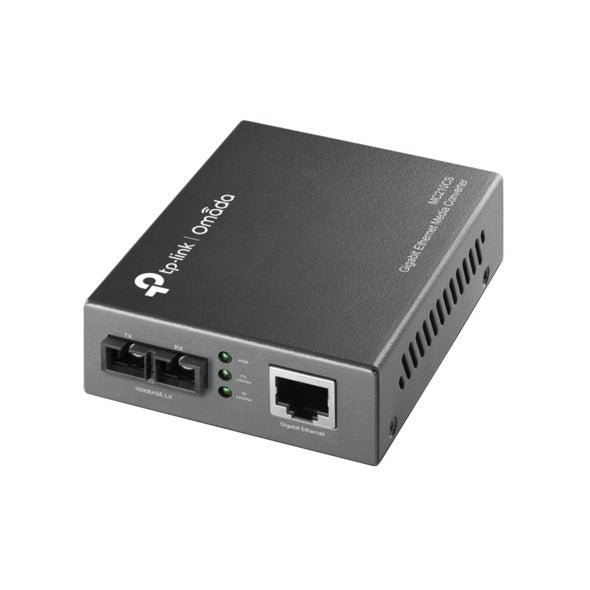

GIGABIT SINGLE-MODE MEDIA CONVERTER

Convert between 1000BASE-LX fiber and 1000Base-T copper media with the MC210CS, a gigabit single-mode media converter that supports longwave laser specifications and extends fiber distances up to 20 km.

The MC210CS is a high-performance gigabit single-mode media converter designed to seamlessly convert 1000BASE-LX fiber optic signals to 1000Base-T copper media and vice versa. Complying with IEEE802.3ab and IEEE802.3z standards, this device ensures reliable data transmission and extends fiber distances up to 20 km using single-mode fiber cables. Ideal for bandwidth-intensive applications, the MC210CS is equipped with SC-Type connectors and operates efficiently at a wavelength of 1310nm for both transmitting and receiving data. It features auto-negotiation for half/full-duplex transfer modes and can be used standalone or integrated with TP-Link’s TL-MC1400 chassis. Its compact design includes front panel status LEDs for easy monitoring and a robust build suitable for varied networking environments.

• Supports 1000BASE-LX fiber to 1000Base-T copper conversion
• Extends fiber distance up to 20 km
• Complies with IEEE 802.3ab and IEEE 802.3z standards
• Auto-negotiation for half/full-duplex transfer modes
• Standalone or can be used with TP-Link’s TL-MC1400 chassis

Specification: Value
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode, Extends fiber distance up to 20km
Ports: 1_ 1000M SC/UPC port, 1_ 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm
Network Media 1000BASE-LX: Single-mode Fiber
