Features:
This product includes:
Technical data:
FEATURES:
———
THIS PRODUCT INCLUDES:
———————-
TECHNICAL DATA:
—————
• High visual clarity is provided by high-powered diodes

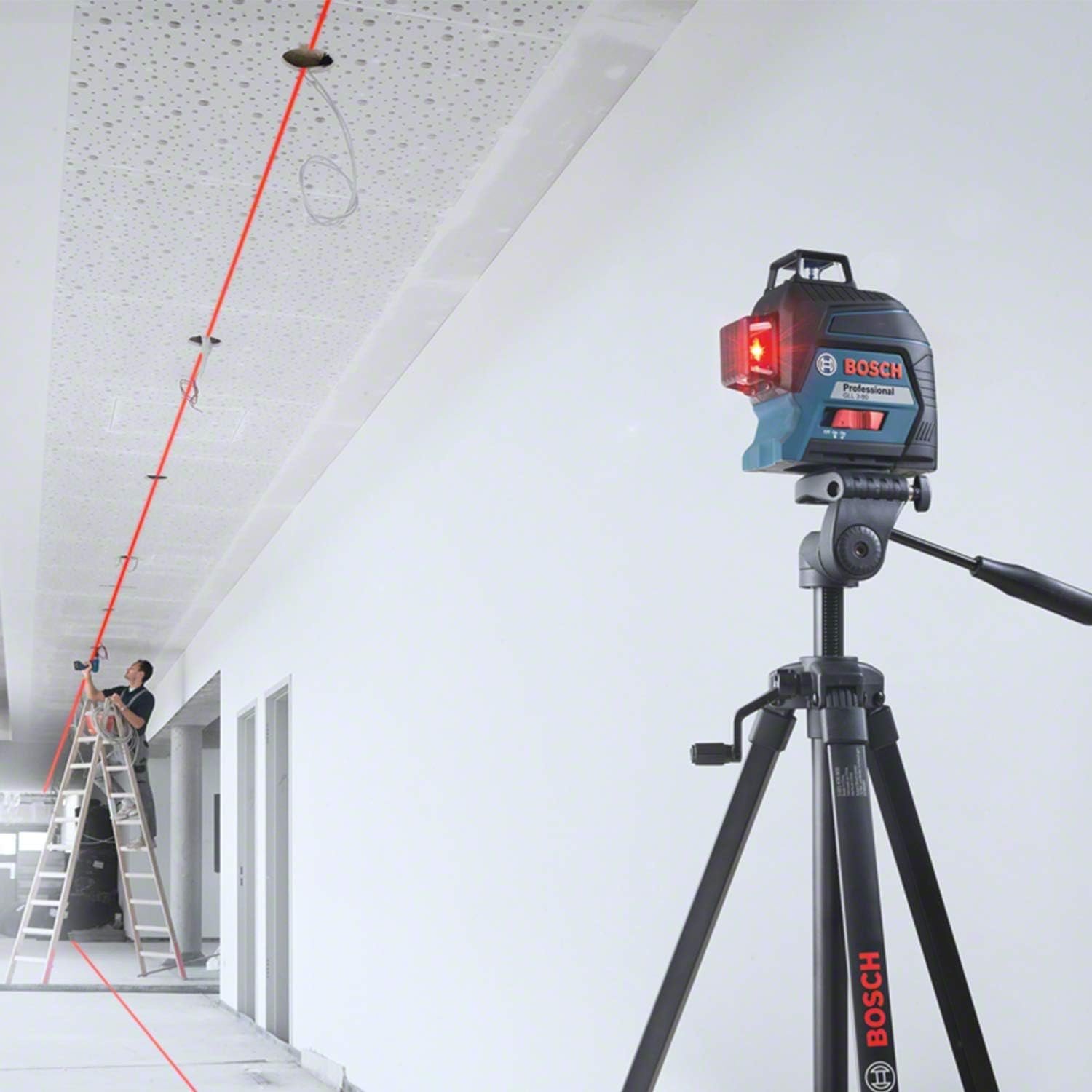

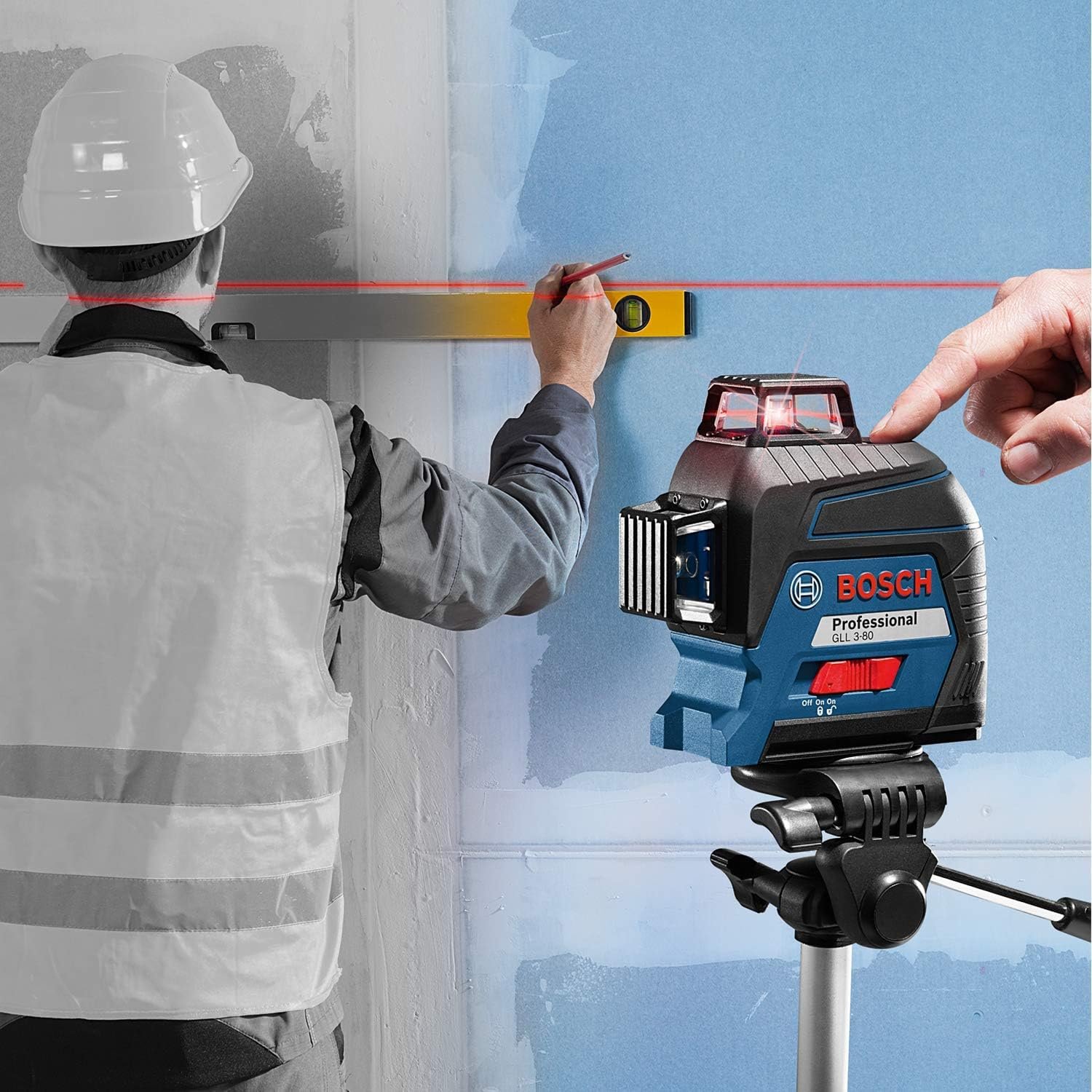

• 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
• Intuitive user interface offers easy operation

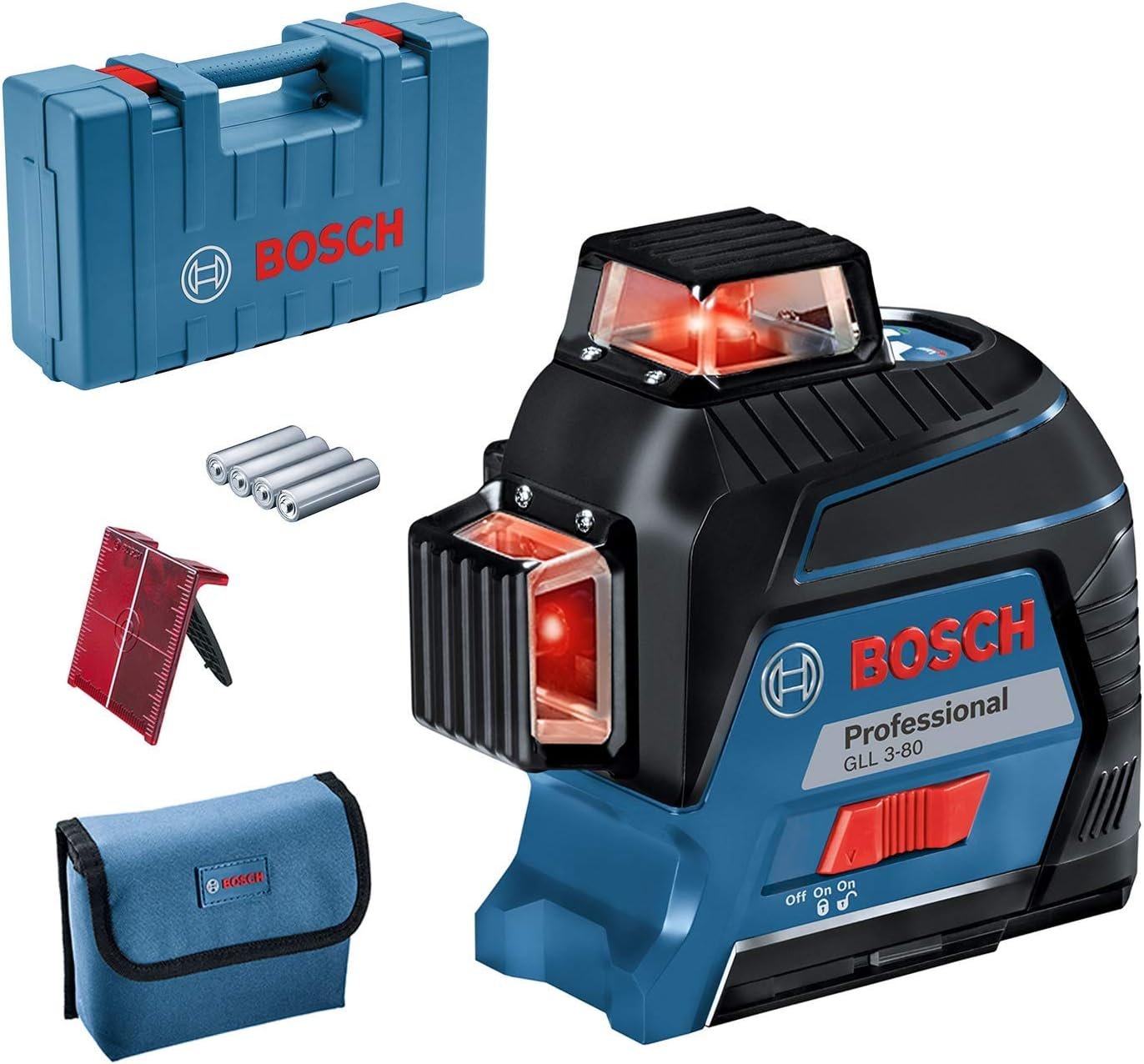

• 4 x 1.5 V LR6 battery (AA)
• Laser target plate
• Pouch
• Carrying case
Working range with receiver, value | 120 m
——————————————
Accuracy | ± 0.3 mm/m*/** (*for the four horizontal intersection points; **plus use-dependent deviation)
Projection | 3 x 360° line
Laser diode | Line: 630 – 650 nm, < 10mW
Operating temperature | -10 – 40 °C
Storage temperature | -20 – 70 °C
Laser class | 2
Working range | up to 30 m
Working range with receiver | up to 120 m
Self-levelling range | ± 4°
Levelling time | 4 s
Dust and splash protection | IP 54
Power supply | 4 x 1.5 V LR6 (AA)
Operating time (max.) | 4 h in 3-line mode
Tripod thread | 1/4", 5/8"
Weight, approx. | 0.82 kg
Colour of laser line | red
Compatible laser receivers | LR 6 + 7
Working range, value | 30 m
