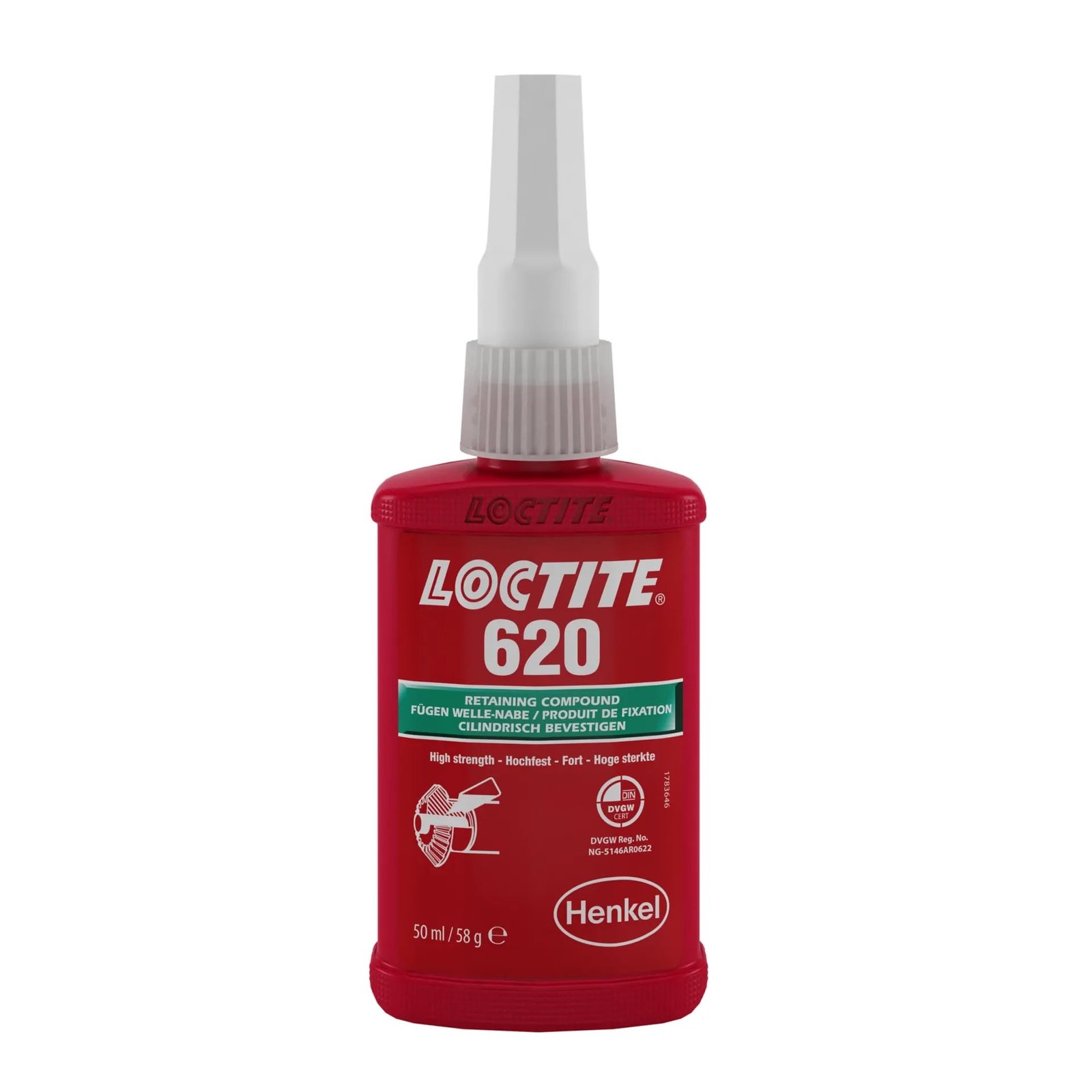

LOCTITE 620 HIGH-TEMPERATURE RETAINING COMPOUND

LOCTITE 620
is a high-strength, high-temperature anaerobic retaining compound designed for bonding cylindrical fitting parts. It cures in the absence of air between close-fitting metal surfaces, preventing loosening and leakage caused by shock and vibration. This compound is particularly suitable for applications requiring temperature resistance up to
230°C
, such as:
Specifications and Features:
Technical Specifications Table:
LOCTITE 620
is a high-strength, high-temperature anaerobic retaining compound designed for bonding cylindrical fitting parts. It cures in the absence of air between close-fitting metal surfaces, preventing loosening and leakage caused by shock and vibration. This compound is particularly suitable for applications requiring temperature resistance up to
230°C
, such as:

SPECIFICATIONS AND FEATURES:
—————————-

TECHNICAL SPECIFICATIONS TABLE:
——————————-

• Locating pins in radiator assemblies.
• Sleeves in pump housings.
• Bearings in automotive transmissions.
• Color:Green
• Cure Type:Anaerobic
• Viscosity:High (8,000 mPa·s)
• Gap Fill:0.15 – 0.25 mm
• Operating Temperature Range:-55°C to 230°C
• Shear Strength (Steel):26 N/mm²
• Fixture Time:60 minutes
• Approvals:DVGW (EN 751-1): NG-5146AR0622

Property | Value
—————-
Color | Green
Cure Type | Anaerobic
Viscosity | 8,000 mPa·s
Gap Fill | 0.15 – 0.25 mm
Operating Temperature Range | -55°C to 230°C
Shear Strength (Steel) | 26 N/mm²
Fixture Time | 60 minutes
Approvals | DVGW (EN 751-1): NG-5146AR0622
