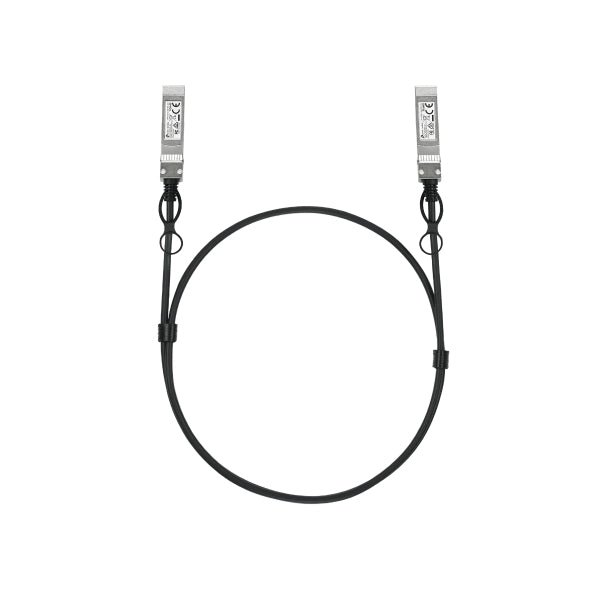

OMADA 1 METER 25G SFP28 DIRECT ATTACH CABLE

A cost-effective 1-meter direct attach cable with SFP28 connectors for high-speed data transmission.

The Omada 1 Meter 25G SFP28 Direct Attach Cable (SM6220-1M) is designed to provide a cost-effective and high-performance solution for short distance connections within racks and across adjacent racks. This passive twin-ax cable assembly is equipped with SFP28 connectors on both ends, supporting data rates of 25 Gbps, 10 Gbps, and 1 Gbps, making it ideal for demanding data center environments. The cable’s robust construction includes silver-plated copper conductors and a 30AWG wire gauge, ensuring durability and optimal signal transmission. With an operating temperature range of 0Ð70 _ and the ability to function in humid conditions, it is versatile for various installation scenarios.

Key Features

• Equipped with 25G SFP28 connectors on both sides.
• Supports data rates of 25 Gbps, 10 Gbps, and 1 Gbps.
• Ideal for short distance connections within and across racks.
• Constructed with silver-plated copper conductors.
• Operates in a wide temperature range from 0Ð70 _.

Specifications

Specification: Value
Product Dimensions: Plug: 2.26*0.53*0.34 in (57.5*13.55*8.55 mm); Overall length: 39.37 in (1,000 mm)
Environment: Operating Temperature: 0Ð70 _; Storage Temperature: -40Ð85 _
Supported Data Rate: 25 Gbps / 10 Gbps / 1 Gbps
Conductor: Silver Plated Copper
Wire Gauge: 30AWG
