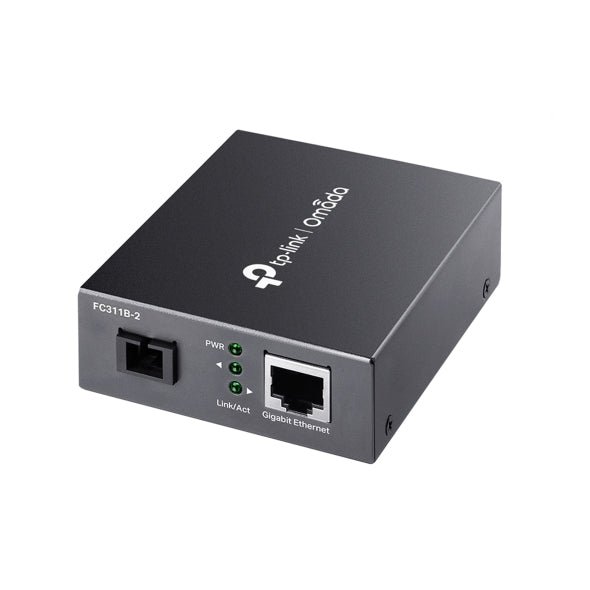

OMADA GIGABIT WDM MEDIA CONVERTER

Convert electrical and optical signals with the FC311B-2 Gigabit Media Converter, featuring WDM technology for efficient long-distance data transmission.

The FC311B-2 Gigabit Media Converter is a cutting-edge solution designed to convert between electrical and optical signals. Equipped with a gigabit RJ-45 port and a gigabit SC fiber port, this converter enables long-distance data transmission over optical fiber, making it ideal for commercial applications like park security monitoring and wireless networking. Utilizing WDM (wavelength division multiplexing) technology, the FC311B-2 facilitates data transmission and reception over a single-mode fiber at distances up to 2 km, significantly reducing cable deployment costs. This media converter can operate as a standalone device or be integrated with TP-Link’s FC1420 rack for enhanced functionality.

• 1_ 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 2 km
• Standalone device or rack-mounted operation

Specification: Value
Standards and Protocols: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Interface: 1_ Gigabit SC/UPC Fiber Port, 1_ 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media: Single-mode Fiber (9/125_m, maximum 2km), UTP category 5, 5e cable (maximum 100m)
Power Supply: External Power Adapter: 5 V/0.6 A
Wave Length: 1310 nm TX, 1550 nm RX
