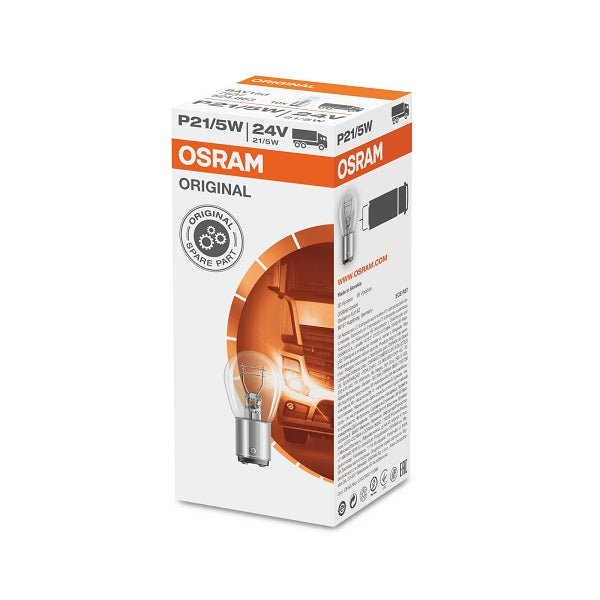

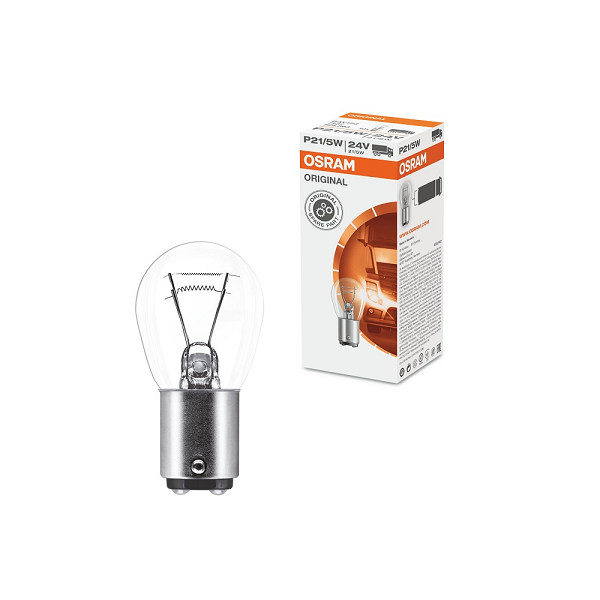

ORIGINAL METAL BASE L P21/5W

The cost-effective original spare parts for trucks
Discover OSRAM´s ORIGINAL signal lamps with metal bases – high-quality original spare parts for 24 volt lamps. Due to the wide product range, the lamps can be used for different applications: as position and parking lights, indicator, brake, fog and reversing lights as well as number plate and side position lights.
Technical Data
Electrical data
Photometrical data
Dimensions & weight
Lifespan
The cost-effective original spare parts for trucks
Discover OSRAM´s ORIGINAL signal lamps with metal bases – high-quality original spare parts for 24 volt lamps. Due to the wide product range, the lamps can be used for different applications: as position and parking lights, indicator, brake, fog and reversing lights as well as number plate and side position lights.
Discover OSRAM´s ORIGINAL signal lamps with metal bases – high-quality original spare parts for 24 volt lamps. Due to the wide product range, the lamps can be used for different applications: as position and parking lights, indicator, brake, fog and reversing lights as well as number plate and side position lights.
Technical Data
Electrical data
Photometrical data
Dimensions & weight
Lifespan

TECHNICAL DATA
————–

ELECTRICAL DATA
—————
Photometrical data
Photometrical data

PHOTOMETRICAL DATA
——————
Dimensions & weight
Dimensions & weight

DIMENSIONS & WEIGHT
——————-
Lifespan
Lifespan

LIFESPAN
——–

Specifications

Application (Category and Product specific) | | Auxiliary lamp
—————————————————————
ECE Category | | P21/5W
Base (Standard designation) | | BAY15d
Technology | | AUX

Power input | 28/10 W | | Nominal wattage | 21/5 W
—————————————————
Nominal voltage | 24 V | | Test voltage | 28 V
Power input tolerence | ±6/±10 % | | |

Luminous flux | 440/40 lm | | Luminous flux tolerence | ±15/±20 %
——————————————————————

Length | 52.5 mm | | Product weight | 8.1 g
——————————————–
Diameter | 27 mm | | |

Lifespan B3 | 65/600 h | | Lifespan TC | 600/1600 h
—————————————————-
