ROTATION LASER | GRL 400 H

Features:

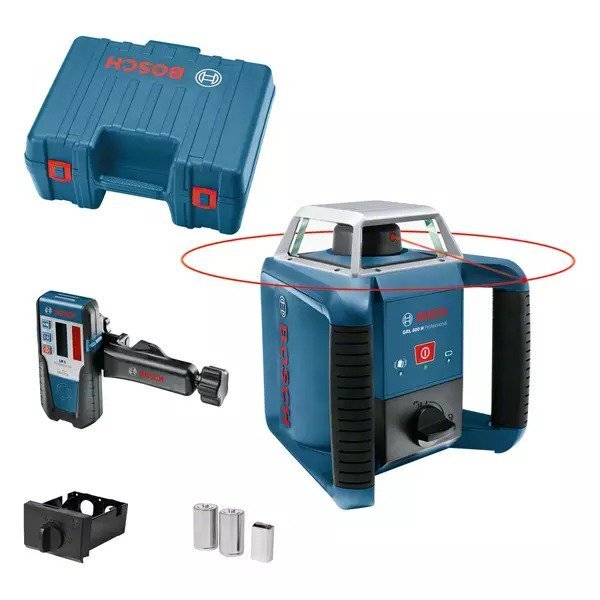

This product includes:
Technical data:

FEATURES:
———

THIS PRODUCT INCLUDES:
———————-

TECHNICAL DATA:
—————

• One-button keypad, Electronic Self Levelling functionality, and convenient battery tray
• Consistently accurate results with an accuracy of ± 2.4 mm at 30m and an ADS shock warning system
• Withstands harsh conditions of any outdoor jobsite thanks to water and dust protection IP56
• Carrying case (spare part number 1 608 M00 05F)
• Laser Receiver LR 1 Professional 0 601 015 400
• Non-rechargeable battery compartment 1 609 203 M02
• 2 x 1.5 V LR20 battery (D)
• 1 x 9 V block battery (6LR61)

Working range with receiver, value | 400 m
——————————————
Slope function | no
Accuracy | ± 2.4 mm at 30 m* (*plus use-dependent deviation)
Working range with receiver | up to 400 m (Diameter)
Laser diode | 635 nm, < 1 mW Operating temperature | -10 – 50 °C Storage temperature | -20 – 70 °C Laser class | 2 Working range without receiver | up to 20 m (Diameter) Self-levelling range | ± 8% (± 5°) Levelling time | 15 s Dust and splash protection | IP 56 Rotation speed | 600 rpm Power supply | 2 x 1.5 V LR20 (D) Tripod thread | 5/8"-11 Weight, approx. | 2 kg Colour of laser line | red Compatible laser receivers | LR 1
