SOLDERING GUN

Key Features

Features:
Dimensions of the tip attached to the soldering iron:
Other dimensions:
The soldering iron takes 2 to 3 minutes to heat up to 350 ° c.
How to take care of your grot
The tips of the yato soldering irons are covered with a material that reduces the oxidation of the tip. Long-term heating and mechanical damage gradually degrade the protective layer, then the tip oxidizes quickly, which results in problems with melting the solder. The tin instead of melting and sticking to the point, ball and falls. A proven method of taking care of the tip is its tinning. During the first heating of the soldering iron, put a little tin on the tip of the tip and remove its excess, e.G. With brass shavings. The tin layer formed in this way protects against oxidation. It is a good practice to tin the tip each time after finishing work.
Attention
Soldering irons powered directly from the mains socket should have a plug with a grounding pin and should be powered from a socket with connected earthing. Failure to ground the metal casing of the heater is a risk of electric shock, which at best will result in burns. All yato soldering irons have a grounded plug, which is connected to the metal housing of the heater.
Technical data:

FEATURES:
———
Dimensions of the tip attached to the soldering iron:
Other dimensions:
The soldering iron takes 2 to 3 minutes to heat up to 350 ° c.
How to take care of your grot
The tips of the yato soldering irons are covered with a material that reduces the oxidation of the tip. Long-term heating and mechanical damage gradually degrade the protective layer, then the tip oxidizes quickly, which results in problems with melting the solder. The tin instead of melting and sticking to the point, ball and falls. A proven method of taking care of the tip is its tinning. During the first heating of the soldering iron, put a little tin on the tip of the tip and remove its excess, e.G. With brass shavings. The tin layer formed in this way protects against oxidation. It is a good practice to tin the tip each time after finishing work.
Attention
Soldering irons powered directly from the mains socket should have a plug with a grounding pin and should be powered from a socket with connected earthing. Failure to ground the metal casing of the heater is a risk of electric shock, which at best will result in burns. All yato soldering irons have a grounded plug, which is connected to the metal housing of the heater.

TECHNICAL DATA:
—————

Specifications

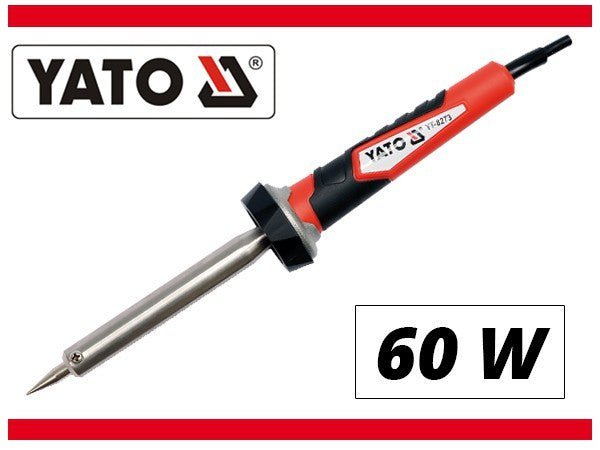

• Soldering iron in a traditional housing with a resistance heater powered directly from a power socket.
• The simplicity of the design makes the device almost failure-free and with proper care of the tip, the soldering iron will serve for many years.
• Power supply: 230v
• Heater power: 60w, 80w
• Hole depth for the tip: approx. 60 mm
• Tip diameter: 6.1 mm, 7.0 mm
• Length: approx. 85 mm, 95 mm
• Diameter: 5.7 mm, 6.7 mm
• Tip diameter: 1.5 mm
• Total length with a bent cable: 270 mm, 290 mm
• Handle length: approx. 130 mm
• Power cord length: 140 cm
• Symbol: yt-8273, yt-8272
• Ean: 5906083982736, 5906083982729
• Brand: yato
• Weight (kg): 0.3750
• Master carton mc: 16
• Pile: 448
• Power [w]: 60, 80
