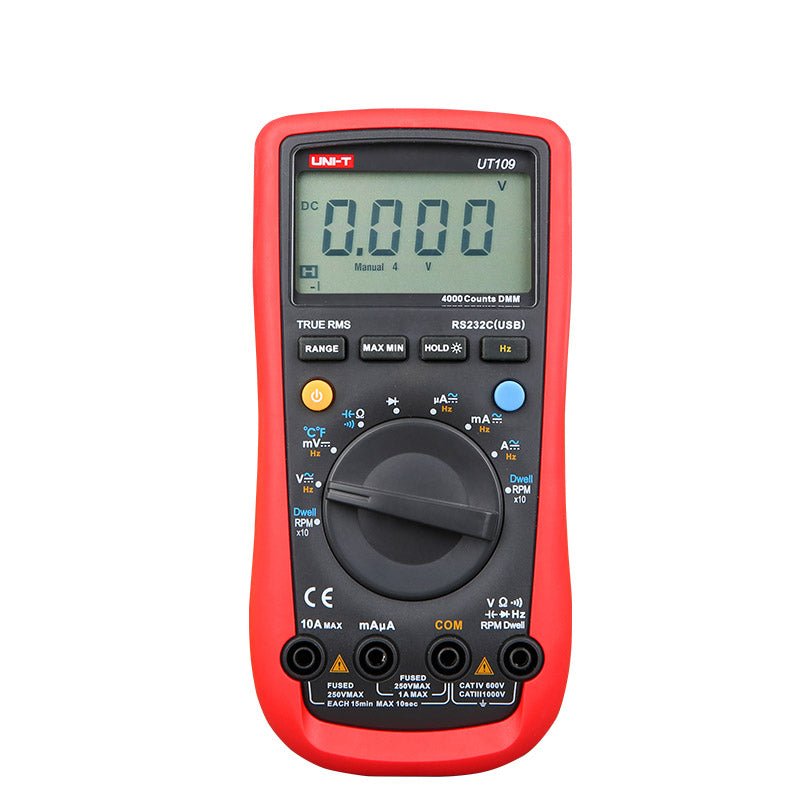

UNI-T AUTOMOBILE MULTIMETER | UT109

The UNI-T UT109 Automobile Multimeter combines automotive-specific measurements with standard multimeter functions. It can measure AC/DC voltage up to 1000V, DC/AC current up to 10A, resistance up to 40MΩ, and capacitance up to 100μF. With a 4000-count display, the UT109 includes diode test, continuity buzzer, data hold, auto power off, and a USB interface. It’s designed with input protection and provides accurate readings for a variety of automotive maintenance tasks.

SKU: UT109 Category:
Description

FEATURES
——–
• The UNI-T UT109 Automobile Multimeter combines automotive-specific measurements with standard multimeter functions. It can measure AC/DC voltage up to 1000V, DC/AC current up to 10A, resistance up to 40MΩ, and capacitance up to 100μF. With a 4000-count display, the UT109 includes diode test, continuity buzzer, data hold, auto power off, and a USB interface. It’s designed with input protection and provides accurate readings for a variety of automotive maintenance tasks.
• Specifications & Features:
• DC Voltage:
• 1000V ±(0.5%+3)
• AC Voltage:
• 1000V ±(1%+3)
• DC Current:
• 10A ±(1%+2)
• AC Current:
• 10A ±(1.2%+5)
• Resistance:
• 40MΩ ±(1%+5)
• Capacitance:
• 100μF ±(3%+5)
• Frequency:
• 10Hz~1MHz ±(0.1%+4)
• Temperature:
• -40°C~537°C ±(1%+10)
• Display Count:
• 4000
• Auto Range:
• Yes
• Auto Power Off:
• Yes
• MAX/MIN/RS-232:
• Yes
• LCD Backlight:
• Yes
• USB Interface:
• Yes
• Input Impedance for DCV:
• 10MΩ
• Dwell/Tach:
• 4CYL/6CYL/8CYL ±(3%+5)
• Power:
• 9V battery (6F22)
• Weight:
• 370g
• Dimensions:
• 180mm x 87mm x 47mm
• Certifications:
• CE, RoHS
• Accessories:
• Battery, test leads, alligator clip, RS-232 interface cable, PC software CD, point contact temperature probe, multi-purpose socket
