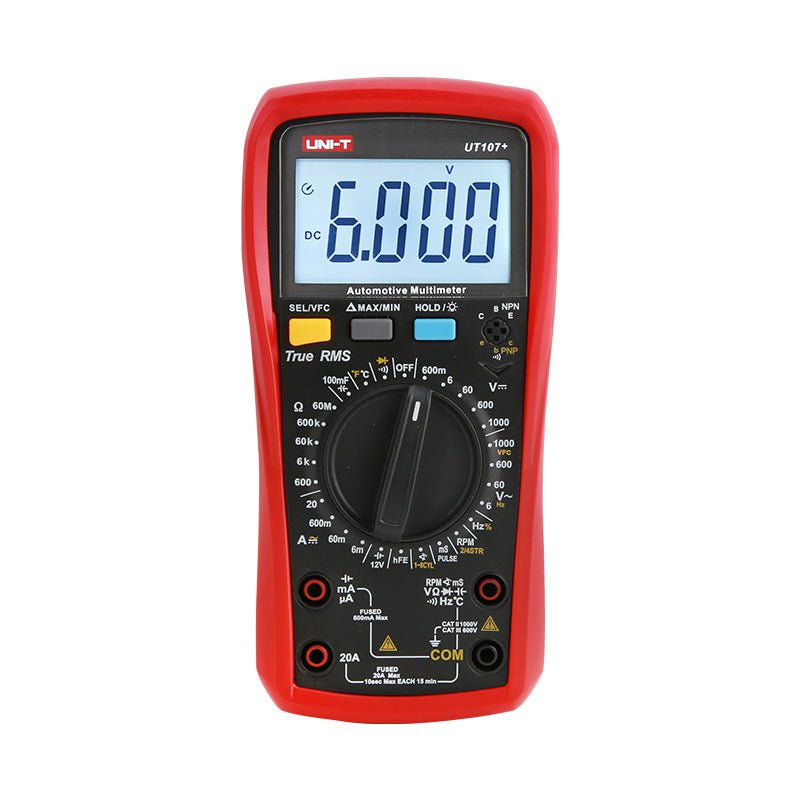

UNI-T AUTOMOTIVE MULTIMETER | UT107+

The UNI-T UT107+ Automotive Multimeter is essential tool for vehicle diagnostics. It measure AC/DC voltage up to 1000V, current up to 20A, resistance, frequency, RPM, and dwell angle. True RMS ensures accurate readings, even in complex signal conditions. This multimeter also feature VFC mode for variable-frequency drives, NCV for non-contact voltage detection, and temperature measurement. includes additional functions like battery testing, pulse width measurement, and a higher display count.
Specifications & Features:
The UNI-T UT107+ Automotive Multimeter is essential tool for vehicle diagnostics. It measure AC/DC voltage up to 1000V, current up to 20A, resistance, frequency, RPM, and dwell angle. True RMS ensures accurate readings, even in complex signal conditions. This multimeter also feature VFC mode for variable-frequency drives, NCV for non-contact voltage detection, and temperature measurement. includes additional functions like battery testing, pulse width measurement, and a higher display count.

SPECIFICATIONS & FEATURES:
————————–

• Voltage Range (AC/DC):1000V
• Current Range (AC/DC):20A (10A continuous, 20A for 10 seconds)
• Resistance:Up to 60M?
• Frequency:Up to 10MHz
• Capacitance:Up to 100mF
• Temperature:-40?~1000?
• Display Count:6000
• True RMS:Yes
• RPM Measurement:2-stroke, 4-stroke engines
• Dwell Angle Measurement:1-8 cylinders
• Pulse Width Measurement:999.9ms (UT107+)
• NCV Detection:Yes
• Safety Rating:CAT II 1000V, CAT III 600V
• Power:1.5V battery (R03) x 2
• Weight:348g
• Dimensions:183mm x 88mm x 56mm
• Certifications:CE, UKCA
