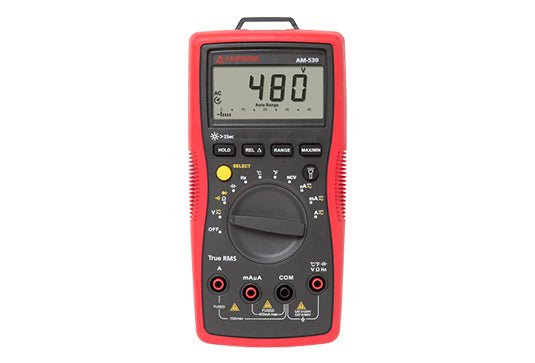

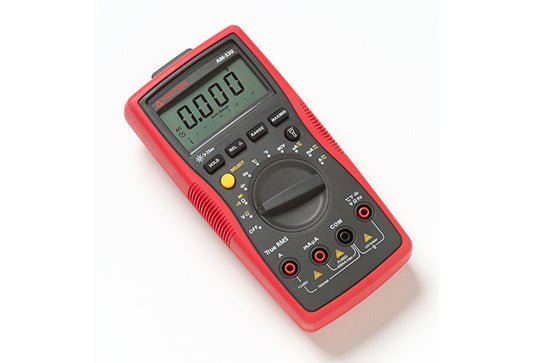

AMPROBE AM-530 TRUE RMS MULTIMETER

The Amprobe AM-530 True RMS Multimeter is designed for professional electrical contractors. It accurately measures AC/DC voltage, current, resistance, frequency, capacitance, and temperature. Its True RMS technology ensures precision in noisy electrical environments. The multimeter includes non-contact voltage detection for added safety, an integrated flashlight for working in dark areas, and a data hold function to freeze readings for easy analysis.
Features:
Specifications:
The Amprobe AM-530 True RMS Multimeter is designed for professional electrical contractors. It accurately measures AC/DC voltage, current, resistance, frequency, capacitance, and temperature. Its True RMS technology ensures precision in noisy electrical environments. The multimeter includes non-contact voltage detection for added safety, an integrated flashlight for working in dark areas, and a data hold function to freeze readings for easy analysis.
Features:
Specifications:

• True RMS for accurate measurements in noisy environments.
• Measures AC/DC voltage up to 600 V, current, resistance, frequency, capacitance, and temperature.
• Non-contact voltage detection for enhanced safety.
• Built-in flashlight for dark environments.
• Data hold, MIN/MAX recording, and relative zero mode.
• Auto and manual ranging for measurement flexibility.
• CAT III 600 V safety rating.

Specification | Details
———————–
Voltage Measurement Range | AC/DC up to 600 V
Current Measurement Range | AC/DC up to 10 A
Resistance | Up to 40 M?
Frequency Range | Up to 10 MHz
Capacitance Measurement | Up to 4000 µF
Temperature Range | -40°C to 1000°C
Display | Backlit LCD with analog bar graph
Power Source | 2 x 1.5 V AA batteries
Auto Power-Off | Yes
Safety Rating | CAT III 600 V
