COMBI LASER | GCL 2-50

Features:

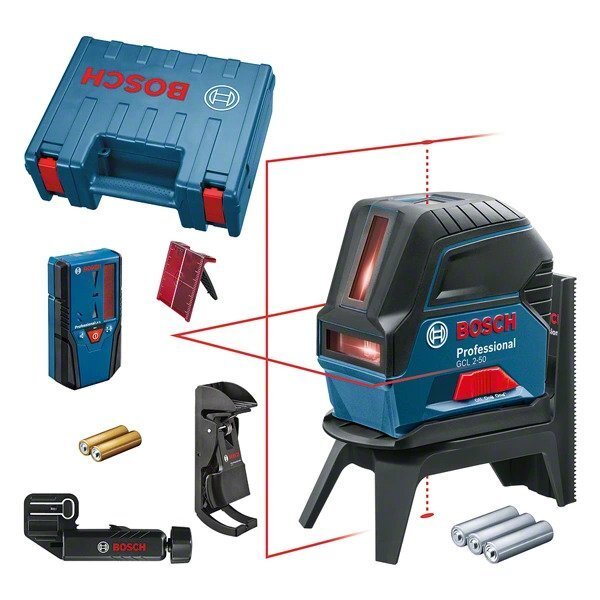

This product includes:
Technical data:

FEATURES:
———

THIS PRODUCT INCLUDES:
———————-

TECHNICAL DATA:
—————

• Horizontal and vertical laser lines and two centred plumb points with optimal visibility
• Receiver mode that allows you to work with the Bosch laser receiver LR 6 and LR 7 for a working range up to 50 metres
• Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool
• Carrying case 1 608 M00 C1R
• Ceiling clamp
• 1/2 L-BOXX inlay for tool 1 608 M00 C1S
• Laser target plate
• Rotating mount RM 1 Professional 0 601 092 600
• 3 x 1.5 V LR6 battery (AA)
• Bracket for laser receiver LR 6/7 1 608 M00 C1L
• Laser receiver LR 6 Professional 0 601 069 H00

Working range with receiver, value | 50 m
—————————————–
Accuracy | ± 0.3 mm/m* (*plus use-dependent deviation)
Projection | 2 lines / 2 points
Laser diode | 630 – 650 nm, < 1mW Operating temperature | -10 – 50 °C Storage temperature | -20 – 70 °C Laser class | 2 Working range | 15 m Working range with receiver | 50 m Working range of laser points, max. | 10 m (top), 10 m (bottom) Self-levelling range | ± 4° Levelling time | 4 s Dust and splash protection | IP 54 Power supply | 3 x 1.5 V LR6 (AA) Operating time (max.) | 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode Tripod thread | 1/4", 5/8" Weight, approx. | 0.49 kg Colour of laser line | red Color of plumb points | red Plumb point accuracy | ± 0.7 mm/m* (*plus use-dependent deviation) Compatible laser receivers | LR 6 + 7 Working range, value | 15 m
