GCL25 EU+BT150+LBRDY+TP

Features:
This product includes:
Technical data:

FEATURES:
———

THIS PRODUCT INCLUDES:
———————-

TECHNICAL DATA:
—————

• Extremely versatile: cross line laser and five-point laser in one
• Easy to operate using intuitive user interface
• Compact and ergonomic design

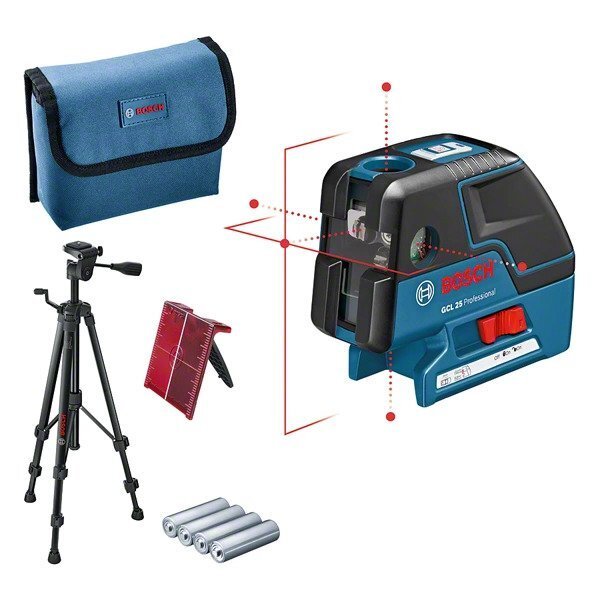

• Building tripod BT 150 Professional 0 601 096 B00
• Laser target plate
• L-BOXX inlay for tool
• Protective Bag
• 4 x 1.5 V LR6 battery (AA)

Accuracy | Laser lines and horizontal point beams: ± 0.3 mm/m* ; Vertical point beams: ± 0.5 mm/m* (*plus use-dependent deviation), Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
——————————————————————————————————————————————————————————————————————————————
Projection | 2 lines / 5 points
Working range | 10 m
Laser diode | 630 – 650 nm, < 1mW Operating temperature | -10 – 50 °C Storage temperature | -20 – 70 °C Laser class | 2 Working range of laser points, max. | 10 m (top), 5 m (bottom), 30 m horizontal Self-levelling range | ± 4° Levelling time | 4 s Dust and splash protection | IP 54 Power supply | 4 x 1.5 V LR6 (AA) Operating time (max.) | 12 h in line and point mode, 24 h in 5-point mode, 30 h in line mode Tripod thread | 1/4", 5/8" Weight, approx. | 0.6 kg Colour of laser line | red Color of plumb points | red Plumb point accuracy | ± 0.7 mm/m* (*plus use-dependent deviation) Working range, value | 10 m
