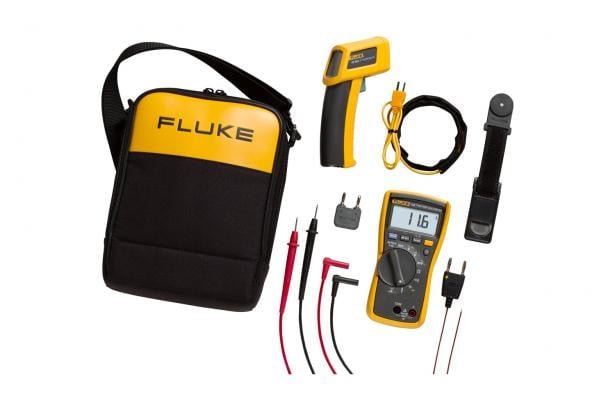

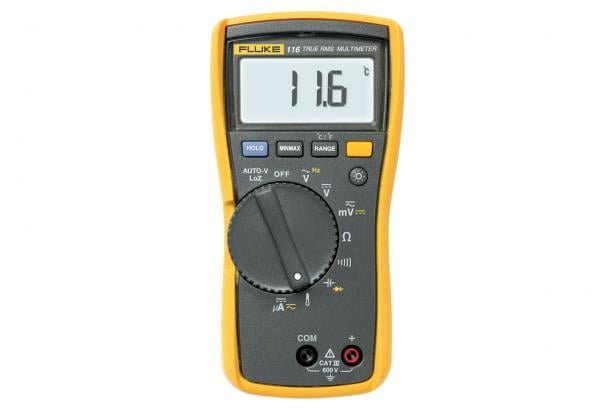

FLUKE 116 DIGITAL HVAC MULTIMETER

The Fluke 116 Digital HVAC Multimeter is an essential tool for HVAC professionals, combining multiple measurement capabilities to streamline troubleshooting processes. Equipped with a built-in thermometer, it allows for direct temperature readings, eliminating the need for a separate instrument. The microamp function facilitates the testing of flame sensors, a critical component in many HVAC systems. Additionally, the meter measures resistance, continuity, frequency, and capacitance, providing a comprehensive solution for various diagnostic needs. Its low input impedance design helps prevent false readings caused by ghost voltage, ensuring accurate measurements. The large white LED backlight enhances visibility in dimly lit environments, and the compact ergonomic design allows for one-handed operation. Safety-rated for CAT III 600 V environments, the Fluke 116 offers reliable protection during use.
Specifications :

THE FLUKE 116 DIGITAL HVAC MULTIMETER IS AN ESSENTIAL TOOL FOR HVAC PROFESSIONALS, COMBINING MULTIPLE MEASUREMENT CAPABILITIES TO STREAMLINE TROUBLESHOOTING PROCESSES. EQUIPPED WITH A BUILT-IN THERMOMETER, IT ALLOWS FOR DIRECT TEMPERATURE READINGS, ELIMINATING THE NEED FOR A SEPARATE INSTRUMENT. THE MICROAMP FUNCTION FACILITATES THE TESTING OF FLAME SENSORS, A CRITICAL COMPONENT IN MANY HVAC SYSTEMS. ADDITIONALLY, THE METER MEASURES RESISTANCE, CONTINUITY, FREQUENCY, AND CAPACITANCE, PROVIDING A COMPREHENSIVE SOLUTION FOR VARIOUS DIAGNOSTIC NEEDS. ITS LOW INPUT IMPEDANCE DESIGN HELPS PREVENT FALSE READINGS CAUSED BY GHOST VOLTAGE, ENSURING ACCURATE MEASUREMENTS. THE LARGE WHITE LED BACKLIGHT ENHANCES VISIBILITY IN DIMLY LIT ENVIRONMENTS, AND THE COMPACT ERGONOMIC DESIGN ALLOWS FOR ONE-HANDED OPERATION. SAFETY-RATED FOR CAT III 600 V ENVIRONMENTS, THE FLUKE 116 OFFERS RELIABLE PROTECTION DURING USE.
———————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————–

SPECIFICATIONS :
—————-

Specification | Details
———————–
Maximum Voltage | 600 V
Temperature Range | -40 °C to 400 °C (-40 °F to 752 °F)
Display | Digital 6,000 counts; updates 4 times/second.
Microamps Range | 0 µA to 600 µA
Input Impedance | Low input impedance (LoZ)
Battery | 9-volt alkaline; 400 hours life (without backlight).
Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F)
Storage Temperature | -40 °C to 60 °C (-22 °F to 140 °F)
Safety Compliance | CAT III 600 V, IEC 61010-1.
Dimensions | 167 x 84 x 46 mm (6.57 x 3.31 x 1.81 inches).
Weight | 550 g (1.21 lbs).
