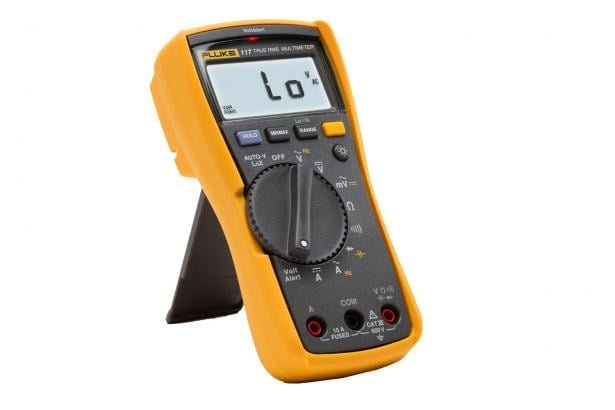

FLUKE 117 ELECTRICIAN’S TRUE-RMS DIGITAL MULTIMETER

The Fluke 117 Electrician’s Multimeter is engineered to meet the demands of professional electricians. Its true-RMS capability ensures accurate measurements on non-linear loads, while the integrated non-contact voltage detection allows for quick identification of live circuits without direct contact. The AutoVolt feature automatically selects AC or DC voltage, simplifying the testing process. Additionally, the low input impedance mode helps prevent false readings caused by ghost voltage. The meter measures resistance, continuity, frequency, and capacitance, providing versatility for various applications. The large white LED backlight enhances visibility in poorly lit areas, and the compact ergonomic design facilitates one-handed operation. Safety-rated for CAT III 600 V environments, the Fluke 117 ensures reliable protection during use.
Key Features:
Specification:
The Fluke 117 Electrician’s Multimeter is engineered to meet the demands of professional electricians. Its true-RMS capability ensures accurate measurements on non-linear loads, while the integrated non-contact voltage detection allows for quick identification of live circuits without direct contact. The AutoVolt feature automatically selects AC or DC voltage, simplifying the testing process. Additionally, the low input impedance mode helps prevent false readings caused by ghost voltage. The meter measures resistance, continuity, frequency, and capacitance, providing versatility for various applications. The large white LED backlight enhances visibility in poorly lit areas, and the compact ergonomic design facilitates one-handed operation. Safety-rated for CAT III 600 V environments, the Fluke 117 ensures reliable protection during use.
Key Features:
Specification:

• Integrated non-contact voltage detection for safety and efficiency.
• AutoVolt automatic AC/DC voltage selection simplifies testing.
• Low input impedance (LoZ) mode prevents false readings from ghost voltage.
• True-RMS technology provides accurate measurements on non-linear loads.
• Large white LED backlight improves visibility in low-light environments.
• Measures resistance, continuity, frequency, and capacitance for versatile applications.
• Min/Max/Average recording with elapsed time to monitor signal fluctuations.
• Compact ergonomic design allows for comfortable one-handed operation.
• CAT III 600 V safety rating ensures reliable protection during use.

Specification | Details
———————–

Maximum Voltage | 600 V
———————–

Non-Contact Voltage | Integrated detection
——————————————

Input Impedance | Low input impedance (LoZ)
——————————————-

True-RMS | Yes
————–

Battery | 9-volt alkaline; 400 hours life (without backlight).
————————————————————–

Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F)
———————————————————

Storage Temperature | -40 °C to 60 °C (-22 °F to 140 °F)
——————————————————–

Safety Compliance | CAT III 600 V, IEC 61010-1.
———————————————–

Dimensions | 167 x 84 x 46 mm (6.57 x 3.31 x 1.81 inches).
———————————————————-

Weight | 550 g (1.21 lbs).
————————–
