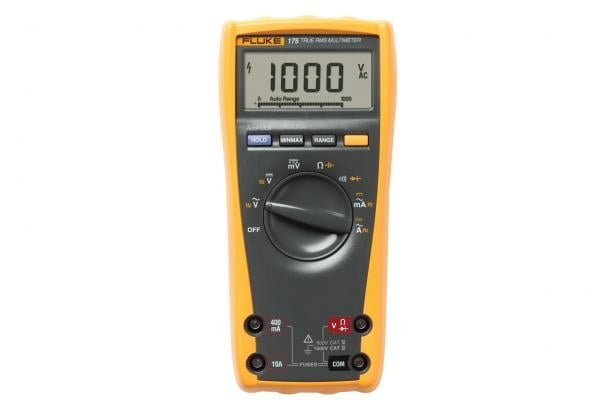

FLUKE 175 TRUE-RMS DIGITAL MULTIMETER
The Fluke 175 True-RMS Digital Multimeter provides the essential features needed for troubleshooting and repairing electrical and electronic systems. It delivers accurate True-RMS AC voltage and current measurements, as well as frequency, capacitance, resistance, continuity, and diode testing. The multimeter offers both manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording to enhance productivity. Safety-rated for industrial use, it meets CAT III 1000 V and CAT IV 600 V standards. The ergonomic design includes an integrated protective holster, and the device allows for closed-case calibration through the front panel.
Description
FEATURES
——–
• The Fluke 175 True-RMS Digital Multimeter provides the essential features needed for troubleshooting and repairing electrical and electronic systems. It delivers accurate True-RMS AC voltage and current measurements, as well as frequency, capacitance, resistance, continuity, and diode testing. The multimeter offers both manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording to enhance productivity. Safety-rated for industrial use, it meets CAT III 1000 V and CAT IV 600 V standards. The ergonomic design includes an integrated protective holster, and the device allows for closed-case calibration through the front panel.
• Key Features:
• True-RMS Measurements:
• Provides accurate readings for AC voltage and current, essential for non-linear loads.
• Multiple Measurement Functions:
• Measures voltage, current, frequency, capacitance, resistance, continuity, and performs diode tests.
• Manual and Automatic Ranging:
• Offers flexibility in selecting measurement ranges.
• Display Hold and Auto Hold:
• Allows users to capture and review readings easily.
• Min/Max-Average Recording:
• Records signal fluctuations over time for comprehensive analysis.
• Safety Compliance:
• Rated for CAT III 1000 V and CAT IV 600 V environments, ensuring user safety.
• Ergonomic Design:
• Features an integrated protective holster for durability and ease of use.
• Closed-Case Calibration:
• Enables calibration through the front panel without opening the case.
• Specification :
• Specification
• Details
• True-RMS Measurement
• Yes
• Voltage Range
• Up to 1000 V AC/DC
• Current Range
• Up to 10 A AC/DC
• Frequency Range
• 0.01 Hz to 100 kHz
• Capacitance Range
• 1 nF to 10,000 µF
• Resistance Range
• 0.1 Ω to 50 MΩ
• Safety Compliance
• CAT III 1000 V, CAT IV 600 V
• Operating Temperature
• -10 °C to 50 °C (14 °F to 122 °F)
• Storage Temperature
• -40 °C to 60 °C (-40 °F to 140 °F)
• Battery
• 9V Alkaline; ~200 hours of battery life
• Dimensions
• 187 x 85 x 45 mm (7.36 x 3.35 x 1.77 inches)
• Weight
• 420 g (0.93 lbs)
