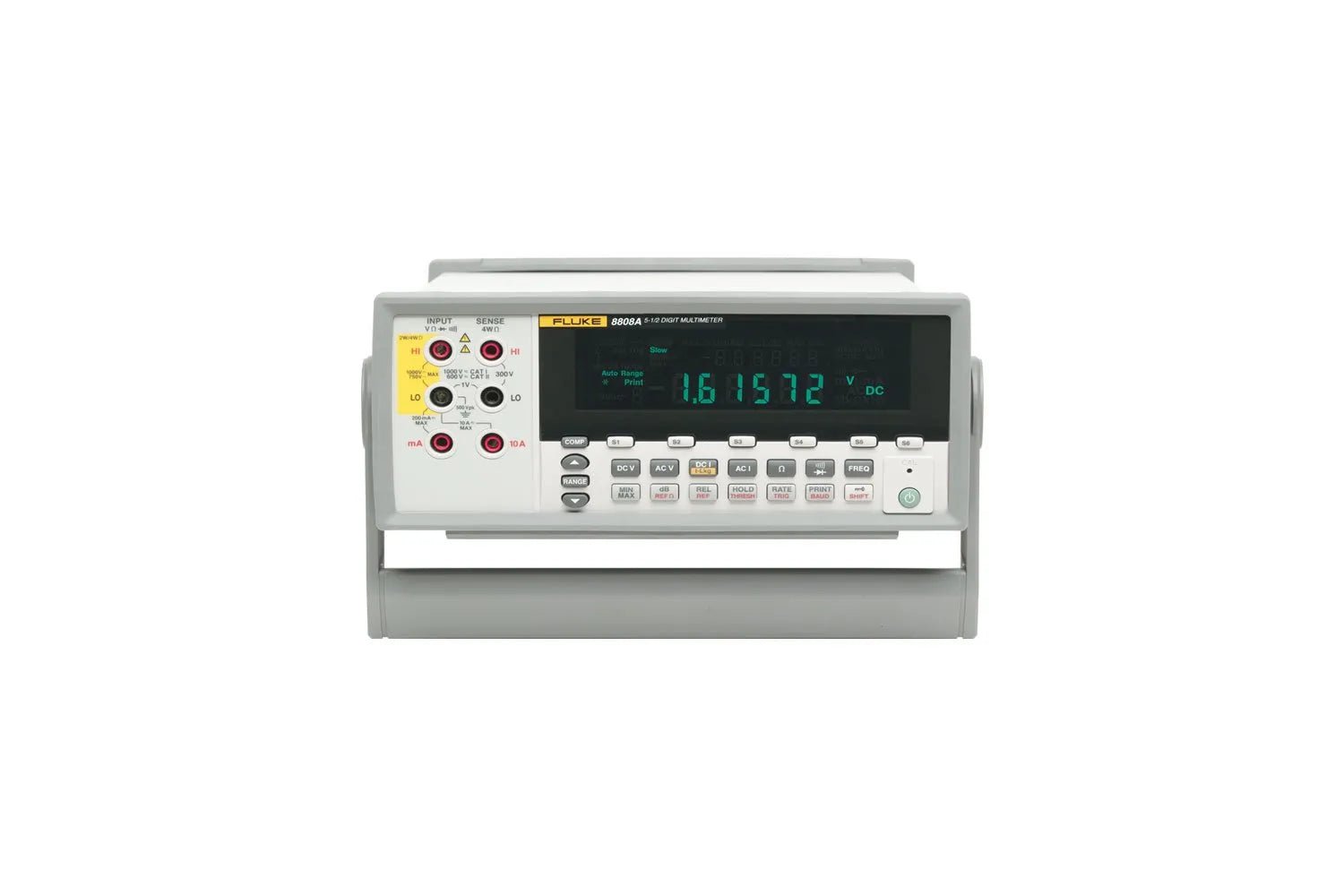

FLUKE DIGITAL MULTIMETER | 8808A

The Fluke 8808A Digital Multimeter is designed to perform a wide range of measurements with exceptional accuracy. It measures volts, ohms, and amps, boasting a basic DC voltage accuracy of 0.015%. The dual display allows users to view two different parameters simultaneously, enhancing efficiency. Six dedicated setup buttons enable quick access to commonly used configurations, streamlining repetitive tasks. The 8808A also features a Hi/Lo limit compare function for pass/fail testing, making it ideal for quality control in manufacturing settings.
Key Features:
Specifications:
The Fluke 8808A Digital Multimeter is designed to perform a wide range of measurements with exceptional accuracy. It measures volts, ohms, and amps, boasting a basic DC voltage accuracy of 0.015%. The dual display allows users to view two different parameters simultaneously, enhancing efficiency. Six dedicated setup buttons enable quick access to commonly used configurations, streamlining repetitive tasks. The 8808A also features a Hi/Lo limit compare function for pass/fail testing, making it ideal for quality control in manufacturing settings.
Key Features:
Specifications:

• High Precision:Offers 5.5-digit resolution with a basic DC voltage accuracy of 0.015%.
• Dual Display:Simultaneously shows two measurements for enhanced analysis.
• Dedicated Setup Buttons:Six buttons provide quick access to frequently used measurement setups.
• Hi/Lo Limit Compare:Facilitates pass/fail testing for quality assurance.
• Versatile Measurement Functions:Measures voltage, current, resistance, and includes a dedicated DC leakage current measurement function.

Specification | Details
———————–
Display | VFD multi-segment display, dual readings
Resolution | 5.5 digits
DC Voltage Range | 200 mV to 1000 V
Max. DC Voltage Resolution | 1 µV
DC Voltage Accuracy | ±0.015% + 0.003%
AC Voltage Range | 200 mV to 750 V
Max. AC Voltage Resolution | 1 µV
AC Voltage Accuracy | ±0.2% + 0.05%
Frequency Range | 20 Hz to 100 kHz
Resistance Measurement | 2×4 wire method; ranges from 200 ? to 100 M?
Max. Resistance Resolution | 1 m?
Resistance Accuracy | ±0.02% + 0.003%
DC Current Range | 200 µA to 10 A
Max. DC Current Resolution | 1 nA
DC Current Accuracy | ±0.02% + 0.005%
AC Current Range | 20 mA to 10 A
Max. AC Current Resolution | 100 nA
AC Current Accuracy | ±0.3% + 0.06%
Dimensions (H x W x D) | 88 mm x 217 mm x 297 mm
Weight | 2.1 kg
Safety Compliance | Designed to comply with EN 61010-1:2001, ANSI/ISA 61010-1 (S82.02.01):2004, UL 61010-1:2004, CAN/CSA No. 61010.1:2004
