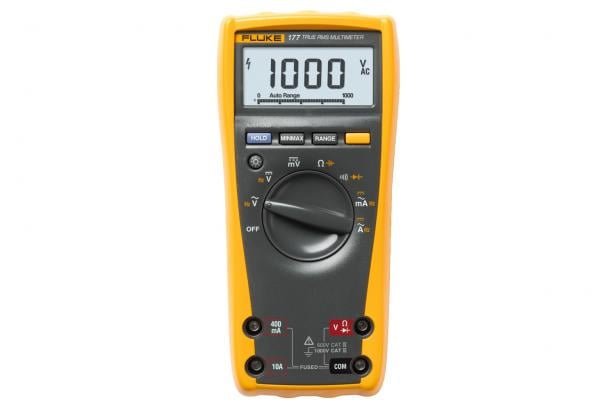

FLUKE 177 TRUE-RMS DIGITAL MULTIMETER

The Fluke 177 True-RMS Digital Multimeter provides the essential features needed for troubleshooting and repairing electrical and electronic systems. It delivers accurate True-RMS AC voltage and current measurements, as well as frequency, capacitance, resistance, continuity, and diode testing. The multimeter offers both manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording to enhance productivity. Safety-rated for industrial use, it meets CAT III 1000 V and CAT IV 600 V standards. The ergonomic design includes an integrated protective holster, and the device allows for closed-case calibration through the front panel.
Specification:
The Fluke 177 True-RMS Digital Multimeter provides the essential features needed for troubleshooting and repairing electrical and electronic systems. It delivers accurate True-RMS AC voltage and current measurements, as well as frequency, capacitance, resistance, continuity, and diode testing. The multimeter offers both manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording to enhance productivity. Safety-rated for industrial use, it meets CAT III 1000 V and CAT IV 600 V standards. The ergonomic design includes an integrated protective holster, and the device allows for closed-case calibration through the front panel.
Specification:

Specification | Details
———————–

True-RMS Measurement | Yes
————————–

Voltage Range | Up to 1000 V AC/DC
———————————-

Current Range | Up to 10 A AC/DC
——————————–

Frequency Range | 0.01 Hz to 100 kHz
————————————

Capacitance Range | 1 nF to 10,000 µF
————————————-

Resistance Range | 0.1 ? to 50 M?
———————————

Safety Compliance | CAT III 1000 V, CAT IV 600 V
————————————————

Backlit Display | Yes
———————

Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F)
———————————————————

Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F)
——————————————————–

Battery | 9V Alkaline; ~200 hours of battery life
————————————————-

Dimensions | 187 x 85 x 45 mm (7.36 x 3.35 x 1.77 inches)
———————————————————

Weight | 420 g (0.93 lbs)
————————-
