FLUKE 279 FC TRUE-RMS THERMAL MULTIMETER

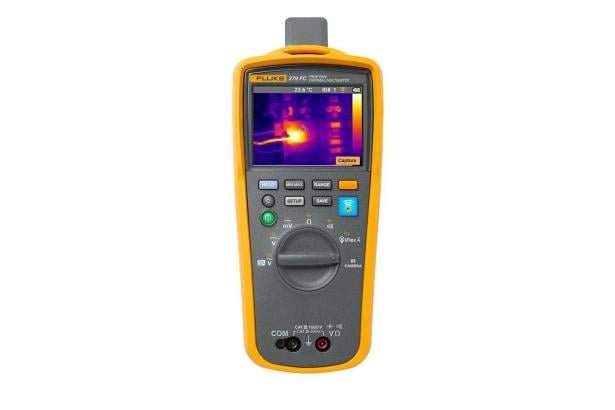

The Fluke 279 FC Thermal Multimeter is engineered to streamline the troubleshooting process by combining two essential tools into one. The integrated thermal imager allows for the rapid detection of hot spots in electrical equipment, such as transformers and circuit breakers, which can indicate potential issues. Once identified, the multimeter function enables detailed electrical measurements to diagnose the problem accurately. This two-in-one tool reduces the need to carry separate devices, enhancing efficiency and safety.
Key Features
Specification:

THE FLUKE 279 FC THERMAL MULTIMETER IS ENGINEERED TO STREAMLINE THE TROUBLESHOOTING PROCESS BY COMBINING TWO ESSENTIAL TOOLS INTO ONE. THE INTEGRATED THERMAL IMAGER ALLOWS FOR THE RAPID DETECTION OF HOT SPOTS IN ELECTRICAL EQUIPMENT, SUCH AS TRANSFORMERS AND CIRCUIT BREAKERS, WHICH CAN INDICATE POTENTIAL ISSUES. ONCE IDENTIFIED, THE MULTIMETER FUNCTION ENABLES DETAILED ELECTRICAL MEASUREMENTS TO DIAGNOSE THE PROBLEM ACCURATELY. THIS TWO-IN-ONE TOOL REDUCES THE NEED TO CARRY SEPARATE DEVICES, ENHANCING EFFICIENCY AND SAFETY.
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————-

KEY FEATURES
————

• Integrated Thermal Imaging:Quickly identifies hot spots to detect potential electrical issues.

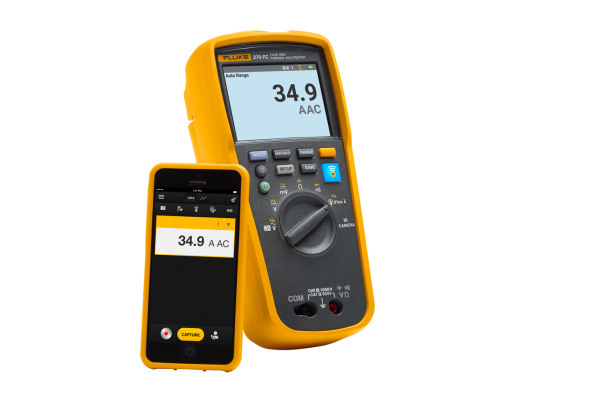

• Fluke Connect® Enabled:Wirelessly transmits measurements and images to smartphones or tablets for real-time analysis and reporting.
• Rugged Design:Built to withstand a 3-meter (9.8 feet) drop, with a CAT III 1000 V, CAT IV 600 V safety rating.

Specification | Details
———————–

Voltage Range | Up to 1000 V AC/DC
———————————-

Current Range | Up to 10 A (with iFlex: up to 2500 A AC)
——————————————————–

Capacitance Range | Up to 100 mF
——————————–

Frequency Range | 0.01 Hz to 100 kHz
————————————

Temperature Range | -10 °C to 200 °C (14 °F to 392 °F)
——————————————————

Resistance Range | Up to 50 M?
——————————

Safety Compliance | CAT III 1000 V, CAT IV 600 V
————————————————

Thermal Imager Resolution | 80 x 60 pixels
——————————————

Battery Life | ~10 hours (with thermal imaging)
———————————————–

Dimensions | 215 x 100 x 47 mm (8.46 x 3.94 x 1.85 inches)
———————————————————-

Weight | 870 g (1.9 lbs)
————————
