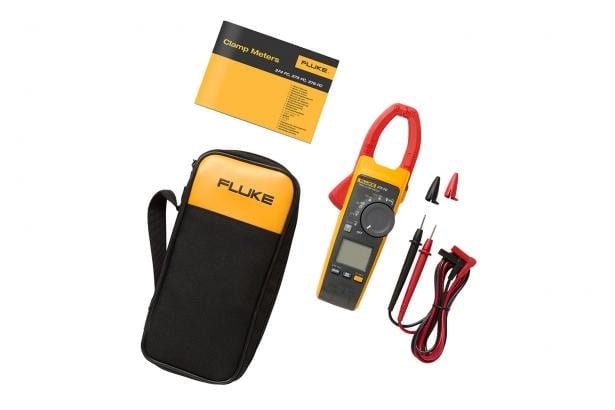

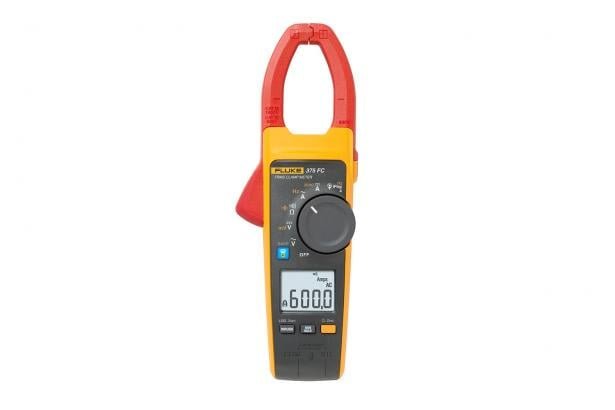

FLUKE 375 FC TRUE-RMS AC/DC CLAMP METER

he Fluke 375 FC True-RMS AC/DC Clamp Meter is designed for professionals who require advanced troubleshooting capabilities. It measures AC and DC currents up to 600 A and voltages up to 1000 V. When paired with the optional iFlex® flexible current probe, the measurement range extends up to 2500 A AC, providing increased flexibility and access to large conductors in tight spaces. The meter features True-RMS technology for accurate measurements on non-linear signals and a low-pass filter for precise voltage and frequency measurements on variable frequency drives. With Fluke Connect® wireless connectivity, users can transmit measurements to smartphones or tablets for safer viewing at a distance, data logging, and real-time collaboration. The Fluke 375 FC is safety rated for CAT IV 600 V and CAT III 1000 V environments, ensuring user protection during high-voltage measurements.
Specification:
he Fluke 375 FC True-RMS AC/DC Clamp Meter is designed for professionals who require advanced troubleshooting capabilities. It measures AC and DC currents up to 600 A and voltages up to 1000 V. When paired with the optional iFlex® flexible current probe, the measurement range extends up to 2500 A AC, providing increased flexibility and access to large conductors in tight spaces. The meter features True-RMS technology for accurate measurements on non-linear signals and a low-pass filter for precise voltage and frequency measurements on variable frequency drives. With Fluke Connect® wireless connectivity, users can transmit measurements to smartphones or tablets for safer viewing at a distance, data logging, and real-time collaboration. The Fluke 375 FC is safety rated for CAT IV 600 V and CAT III 1000 V environments, ensuring user protection during high-voltage measurements.

Specifications

Specification | Value
———————

AC Current Range | Up to 600 A
——————————

DC Current Range | Up to 600 A
——————————

AC Voltage Range | Up to 1000 V
——————————-

DC Voltage Range | Up to 1000 V
——————————-

Resistance Range | Up to 6000 ?
——————————-

Frequency Measurement | 5 Hz to 500 Hz
————————————–

iFlex® Compatibility | Yes, expands current range to 2500 A
———————————————————–

Safety Rating | CAT IV 600 V / CAT III 1000 V
———————————————

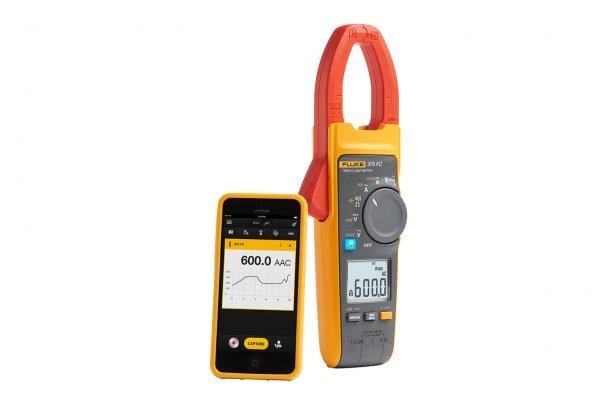

Wireless Connectivity | Fluke Connect® compatibility
—————————————————-

Display | Backlit LCD
———————

Dimensions | 249 x 85 x 45 mm
—————————–

Weight | 388 g
————–
