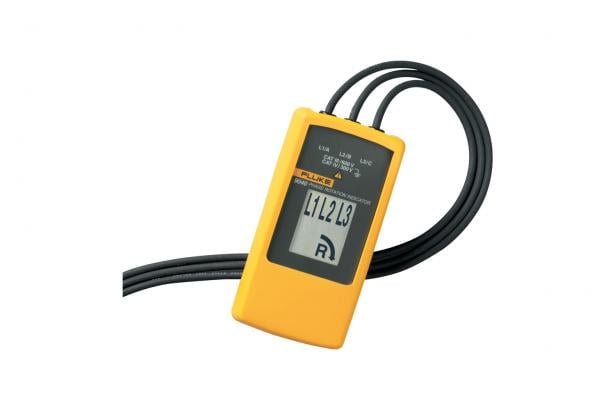

FLUKE 9040 ESPR PHASE ROTATION INDICATOR

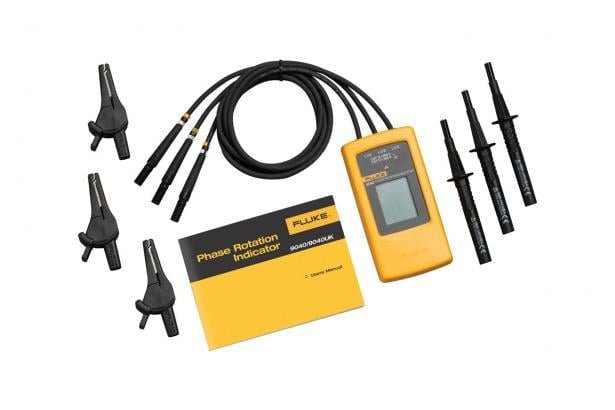

The Fluke 9040 ESPR is an essential tool for professionals working with three-phase systems. It provides rapid determination of phase sequence, ensuring correct connections in motors, drives, and electrical systems. The device features a clear LCD display that indicates the phase rotation direction, allowing users to quickly identify clockwise or counter-clockwise rotation. Notably, the Fluke 9040 operates without the need for batteries, as it draws power from the system under test. Its voltage range of up to 700 V and frequency range of 15 to 400 Hz make it suitable for both commercial and industrial applications. The included test probes have a variable clamping range for safe contact, even in industrial sockets.
Specifications:
The Fluke 9040 ESPR is an essential tool for professionals working with three-phase systems. It provides rapid determination of phase sequence, ensuring correct connections in motors, drives, and electrical systems. The device features a clear LCD display that indicates the phase rotation direction, allowing users to quickly identify clockwise or counter-clockwise rotation. Notably, the Fluke 9040 operates without the need for batteries, as it draws power from the system under test. Its voltage range of up to 700 V and frequency range of 15 to 400 Hz make it suitable for both commercial and industrial applications. The included test probes have a variable clamping range for safe contact, even in industrial sockets.
Specifications:

Specifications

Feature | Description
———————
Voltage Range | 40 V to 700 V
Frequency Range | 15 Hz to 400 Hz
Operating Timer | Continuous
Lead Length | 34 inches
Operating Temp | 0°C to 40°C
Safety Rating | EN 61010, EN 61557-7, CAT III 600 V, CAT IV 300 V
Dimensions | 124 mm x 61 mm x 27 mm
Weight | 200 g
